8-Port 10/100/1000 Mbps PoE Switch Gigabit Uplink for IP CCTV LAN Desktop GTX - Grid Telecommunication eXpert GTX-C1-10-8G2G/X
zł274.18
Tax included
The GTX-C1-10-8G2G/X PoE switch is a professional and extremely reliable network device, which serves as an ideal foundation for modern IP video surveillance systems. Thanks to the support for 8 LAN ports with Power over Ethernet (PoE) technology and 2 dedicated Uplink ports, the device allows for the creation of an efficient and stable infrastructure without the need to run additional power cabling to each camera. The switch fully supports 802.3af and 802.3at standards, which guarantees compatibility with a wide range of network devices.
A key advantage of the GTX-C1-10-8G2G/X model is its gigabit transmission speed on all ports, which eliminates any delays in transmitting high-resolution 4K and UHD video streams. The solid, metal Desktop-type housing ensures excellent heat dissipation and high resistance to mechanical damage. The device operates in a wide temperature range, making it resistant to variable environmental conditions inside buildings. The Plug & Play function means the switch is ready to work immediately after removing it from the box, requiring no complicated software configuration from the installer.
The use of this switch in an IP CCTV installation significantly increases the security and stability of the entire system. Built-in overload protection mechanisms and PoE port prioritization ensure the continuous operation of the most important cameras even at maximum load of the power budget, which is as much as 120W. This solution combines high quality of workmanship with the functionality required by professionals in the security industry.

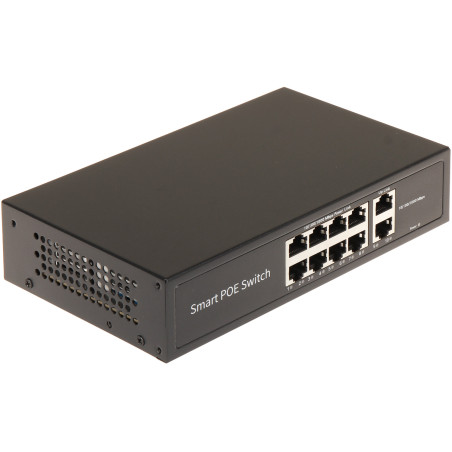

8-Port 10/100/1000 Mbps PoE Switch Gigabit Uplink for IP CCTV LAN Desktop
Model: GTX - Grid Telecommunication eXpert GTX-C1-10-8G2G/X
EAN: 6931240072523 SKU: 931072522
- 8 LAN ports with PoE support (802.3af/at)
- 2 dedicated RJ45 Uplink ports for stable connection to NVR or router
- Full Gigabit speed 10/100/1000 Mbps on all ports
- High total PoE power budget of 120W
- Maximum power up to 30W per individual PoE port
- Durable, metal Desktop-type housing for longevity
- Auto MDI/MDI-X function - automatic data transmission mode detection
- Power priority mechanism support protecting critical devices
- Auto-learning and Auto-aging MAC address technology
- Wide operating temperature range from -25°C to 40°C
- Built-in LEDs indicating power status and port activity
- Plug & Play standard - no configuration required
Description
The GTX-C1-10-8G2G/X PoE switch is a professional and extremely reliable network device, which serves as an ideal foundation for modern IP video surveillance systems. Thanks to the support for 8 LAN ports with Power over Ethernet (PoE) technology and 2 dedicated Uplink ports, the device allows for the creation of an efficient and stable infrastructure without the need to run additional power cabling to each camera. The switch fully supports 802.3af and 802.3at standards, which guarantees compatibility with a wide range of network devices.
A key advantage of the GTX-C1-10-8G2G/X model is its gigabit transmission speed on all ports, which eliminates any delays in transmitting high-resolution 4K and UHD video streams. The solid, metal Desktop-type housing ensures excellent heat dissipation and high resistance to mechanical damage. The device operates in a wide temperature range, making it resistant to variable environmental conditions inside buildings. The Plug & Play function means the switch is ready to work immediately after removing it from the box, requiring no complicated software configuration from the installer.
The use of this switch in an IP CCTV installation significantly increases the security and stability of the entire system. Built-in overload protection mechanisms and PoE port prioritization ensure the continuous operation of the most important cameras even at maximum load of the power budget, which is as much as 120W. This solution combines high quality of workmanship with the functionality required by professionals in the security industry.
Specification
LAN Ports
8 x RJ45 (8 x PoE 802.3af/at), 2 x RJ45 - Uplink
Management
None (Unmanaged Switch)
LED Indicators
Power, PoE, Uplink (status signaling)
Transmission Speed
10 / 100 / 1000 Mbps : 8 x LAN & PoE Port + 2 x RJ-45 Port - Uplink
PoE Standards
IEEE 802.3af, IEEE 802.3at
Maximum Output Power
30 W / PoE 802.3af/at port - Ports 1 ... 8
Maximum Total Power
120 W
MAC Address Table
2k (automatic refresh)
Software Architecture and Features
The built-in firmware provides fully automatic network traffic management and PoE energy distribution. The port prioritization algorithm monitors power consumption in real time, protecting the system from the effects of overload – in the event of a power shortage, the system cuts off power to lower-priority ports. The control logic supports Auto-learning and Auto-aging functions for MAC addresses, which allows for error-free packet routing in the local network. The implementation of Full Duplex (IEEE802.3x) and Half Duplex (Back Pressure) data flow control minimizes the risk of data frame loss. The Auto MDI/MDI-X detection function automatically adjusts the operating mode to the type of cable used, eliminating the need to use crossover cables.
PoE Power Supply
Pins: +: 1, 2; -: 3, 6
Device Power Supply
230 V AC (Alternating Current)
Housing
Desktop, made of metal, black
Operating Temperature
-25 °C ... 40 °C
Certificates
CE, RoHS
Contents
1x PoE Switch
1x Power Cable
1x User Manual
Dimensions, Weight
Product dimensions: 118 x 200 x 44 mm (D x W x H)
Package dimensions: 185 x 235 x 70 mm (D x W x H)
Product weight: 700 g
Weight with packaging: 978 g
