Ethernet Communication Module for INTEGRA VERSA Alarm Control Panels TCP IP Monitoring Remote Control

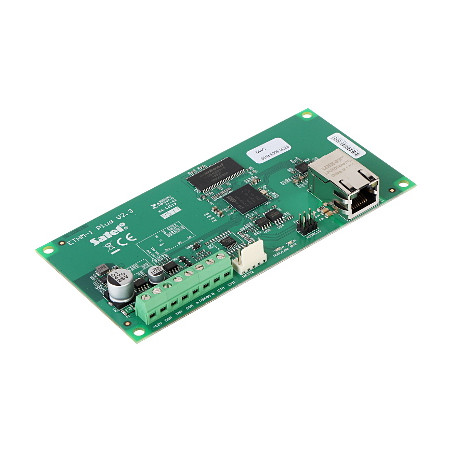

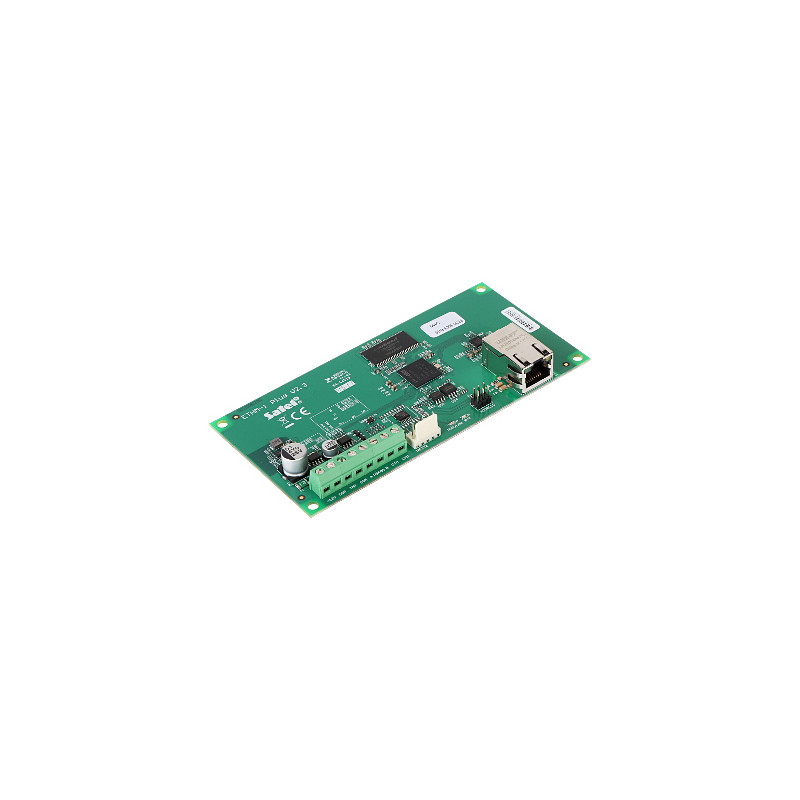

Model: SATEL ETHM-1-PLUS

EAN: 6931240045879 SKU: 931045870

• Full compatibility with INTEGRA, INTEGRA PLUS and VERSA control panels
• Event monitoring using TCP/IP and UDP protocols
• Remote system programming via the Internet (DLOADX)
• System supervision capability using professional GUARDX software
• Support for MobileKPD-2 and MobileKPD-2 Pro mobile applications
• E-mail notifications for INTEGRA Plus series control panels
• Encrypted data transmission ensuring a high level of security
• Support for automatic DHCP address configuration
• Open communication protocol for integration with external systems
• Compact dimensions allowing for installation inside the control panel housing

Description

The ETHM-1-PLUS communication module is an advanced solution allowing for the enrichment of alarm systems based on INTEGRA, INTEGRA PLUS, and VERSA control panels with modern Ethernet connectivity. Thanks to this device, the alarm system gains completely new capabilities in terms of monitoring and remote operation. The module enables the transmission of event information to the monitoring station using fast and reliable TCP/IP and UDP protocols.

Specification

The ETHM-1-PLUS module also ensures transmission security by offering advanced data encryption. When combined with INTEGRA Plus control panels, the device can send event notifications directly to an e-mail address, which provides an additional layer of information for the property owner. The system also supports automatic DHCP address configuration, which simplifies the installation process in home and office computer networks. It is a reliable tool that transforms a classic alarm system into an intelligent online security system.

One of the key advantages of the device is the ability to remotely program the control panel via the Internet, which significantly facilitates the work of installers and allows for a quick response without the need for a site visit. For the end-user, the most important functionality is the integration with dedicated mobile applications. Thanks to the MobileKPD-2 and MobileKPD-2 Pro applications, a smartphone or tablet turns into a fully functional, virtual keypad, allowing for arming, disarming, and checking the system status from anywhere in the world.

System Compatibility

The module is fully compatible with the SATEL INTEGRA, INTEGRA PLUS, and VERSA family of alarm control panels. It ensures seamless data exchange and full integration with the system's logic functions.

Transmission and Monitoring

The device supports digital monitoring using TCP and UDP protocols. This allows for fast and reliable reporting of events to monitoring stations equipped with IP receivers.

Remote Operation and Programming

Enables full system configuration by the installer using the DLOADX program and system management by the user using the GUARDX program via LAN/WAN.

Mobile Software

The dedicated MobileKPD-2 and MobileKPD-2 Pro application (available for Android and iOS systems) allows for the transformation of a mobile device into a virtual keypad. The application offers a clear graphic interface identical to the physical keypads of the INTEGRA system. The user has the ability to view the status of inputs, outputs, browse the event log, and control home automation. The software ensures a secure, encrypted connection to the module and allows for the management of multiple systems from one application. Minimal required configuration time and intuitive navigation make controlling the alarm system simple and accessible from any location with Internet access.

Notifications

Compatibility with INTEGRA Plus control panels (firmware version min. v1.13) enables the sending of alarm and trouble notifications directly to defined e-mail addresses.

Data Encryption

The entire transmission between the module and external software is encoded with advanced algorithms, which prevents unauthorized parties from gaining control over the system.

Network Protocols

Support for the Ethernet 10/100 Base-T standard. Implementation of the TCP/IP stack and the DHCP protocol allows for easy assignment of an IP address in the local network infrastructure.

External Integration

The module provides an open communication protocol via the TCP/IP channel, which allows for the integration of the alarm system with external Smart Home systems from other manufacturers.

Power Supply and Power Consumption

The device is powered by 12 V DC. The maximum power consumption does not exceed 80 mA, which places minimal load on the alarm control panel's power supply unit.

Environmental Conditions

The module is designed for indoor operation in the temperature range from -10 °C to 55 °C, which guarantees stability in standard home and office environments.

Mechanical Design

Printed circuit board with dimensions of 140 x 68 mm. Equipped with an RJ-45 socket, a PIN5 connector for communication with the control panel, and an RS-232 serial port.

Web Management

With the INTEGRA series control panels, it is possible to access the system via a built-in web interface available from a web browser.

Software Update

The module has the capability for remote firmware updates, which allows for adding new functionalities and patching security vulnerabilities without disassembling the device.

Warranty and Origin

Product designed and manufactured in Poland by SATEL. Covered by a 2-year manufacturer's warranty.

Dimensions, Weight

Product dimensions: 25 x 140 x 68 mm (Depth x Width x Height)

Package dimensions: 45 x 165 x 85 mm (Depth x Width x Height)

Product weight: 64 g

Weight with packaging: 100 g
