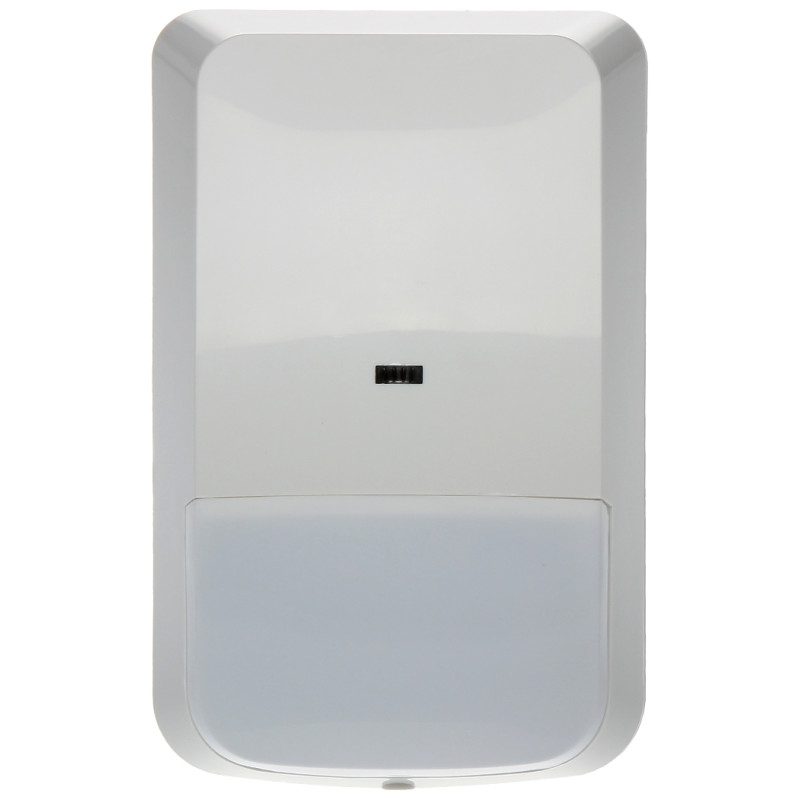

Professional Long Range 60m Digital PIR Motion Detector Curtain Indoor BOSCH DS778
zł384.81
Tax included
A professional motion detector is an advanced security system solution, specifically designed to protect large indoor areas that require long-range detection. The device is characterized by an exceptional range reaching up to 60 meters with a very narrow detection characteristic (a 4.6-meter wide curtain), which makes it an ideal choice for securing long corridors, warehouses, production halls, or storefront windows.
Thanks to the use of a dual pyroelement and advanced digital signal analysis, the detector effectively eliminates false alarms by reacting precisely to human movement. The main advantages of the product are primarily the reliability guaranteed by a renowned manufacturer and innovative thermal imaging processing technologies.
The digital temperature compensation function allows for stable device operation even in changing environmental conditions, automatically adjusting the detection sensitivity to the ambient temperature of the room. A solid housing and a wide operating temperature range (from -40 to +49 degrees Celsius) ensure the durability and longevity of the system. Installation of the device is simple and intuitive, and the sensitivity adjustment option allows for optimal adaptation of operating parameters to the specific requirements of the protected object. It is an excellent investment in safety, combining modern design with uncompromising effectiveness in the most demanding alarm installations.
Professional Long Range 60m Digital PIR Motion Detector Curtain Indoor
Model: BOSCH DS778
EAN: 6931240038956 SKU: 931038959
- Extremely long detection range up to 60 meters
- Narrow curtain characteristic ideal for corridors
- Dual pyroelement for increased interference resistance
- Advanced digital temperature compensation
- Precise sensitivity adjustment
- Wide operating temperature range from -40°C to 49°C
- High reliability of the Bosch brand
- Aesthetic and durable indoor housing
Description
A professional motion detector is an advanced security system solution, specifically designed to protect large indoor areas that require long-range detection. The device is characterized by an exceptional range reaching up to 60 meters with a very narrow detection characteristic (a 4.6-meter wide curtain), which makes it an ideal choice for securing long corridors, warehouses, production halls, or storefront windows.
Thanks to the use of a dual pyroelement and advanced digital signal analysis, the detector effectively eliminates false alarms by reacting precisely to human movement. The main advantages of the product are primarily the reliability guaranteed by a renowned manufacturer and innovative thermal imaging processing technologies.
The digital temperature compensation function allows for stable device operation even in changing environmental conditions, automatically adjusting the detection sensitivity to the ambient temperature of the room. A solid housing and a wide operating temperature range (from -40 to +49 degrees Celsius) ensure the durability and longevity of the system. Installation of the device is simple and intuitive, and the sensitivity adjustment option allows for optimal adaptation of operating parameters to the specific requirements of the protected object. It is an excellent investment in safety, combining modern design with uncompromising effectiveness in the most demanding alarm installations.
Specification
Application
Indoor - dedicated for protecting large industrial and office facilities
Pyroelement
Dual - ensures high resistance to interference and false alarms through precise differential analysis of infrared radiation
Sensor Type
Passive Infrared (PIR) - technology for detecting changes in thermal radiation emitted by moving objects
Range
60 x 4.6 m - unique curtain characteristic allowing for effective perimeter protection of long sections
Sensitivity Adjustment
Yes - enables optimization of detector operation depending on the level of thermal noise in the environment
Pet Immunity
None - device optimized for maximum range for intruder detection
Maximum Output Load
125 mA / 28 V DC - standard alarm relay output
Digital Temperature Compensation
Yes - this function dynamically adjusts the detection threshold depending on ambient temperature. As a result, the detector maintains high effectiveness even when the ambient temperature approaches human body temperature
Power Supply
12 V DC - standard voltage for intrusion detection systems
Power Consumption
18 mA - energy-efficient design reducing requirements for buffer power supplies
Operating Temperature
-40 °C ... 49 °C - extremely wide temperature range allowing for installation in unheated halls
Signal Processing
Digital - advanced algorithms analyzing amplitude, duration, and signal polarity from the pyroelement
Tamper Protection
Tamper contact detecting the opening of the device housing
Warranty
2 years (manufacturer's)
Contents
1x PIR detector
1x Set of mounting screws
1x User manual PL/EN
Dimensions, Weight
Product dimensions: 59 x 95 x 149 mm (D x W x H)
Package dimensions: 170 x 110 x 65 mm (D x W x H)
Product weight: 195 g
Weight with package: 260 g
