- New

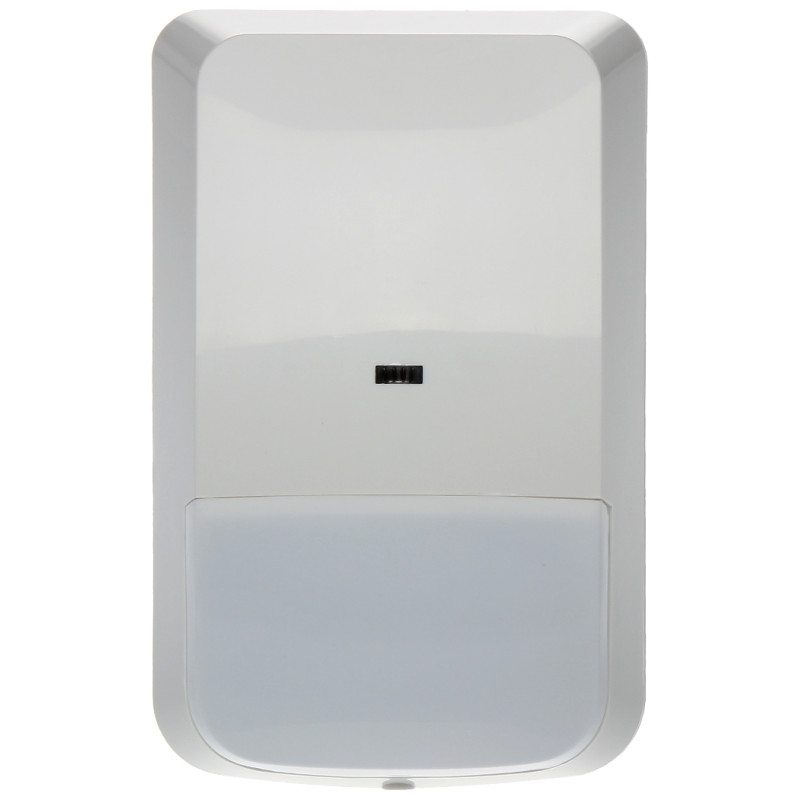

Professional Long Range Digital PIR Motion Detector 60m Internal Curtain BOSCH DS778
zł 384,81
Tax included
This professional motion detector is an advanced security system solution designed specifically for protecting large indoor areas requiring long-range detection. The device features an exceptional range of up to 60 meters with a very narrow detection pattern (a 4.6-meter wide curtain), making it an ideal choice for securing long corridors, warehouses, production halls, or retail storefronts.
Thanks to the use of a dual pyroelement and advanced digital signal analysis, the detector effectively eliminates false alarms by reacting precisely to human movement. The main advantages of the product are primarily the reliability guaranteed by a renowned manufacturer and innovative thermal imaging processing technologies.
The digital temperature compensation function allows the device to operate stably even in changing environmental conditions, automatically adjusting detection sensitivity to the room temperature. The robust housing and wide operating temperature range (from -40 to +49 degrees Celsius) ensure the durability and longevity of the system. Installation of the device is simple and intuitive, and the sensitivity adjustment feature allows for optimal matching of operating parameters to the specific requirements of the protected object. It is an excellent investment in security that combines modern design with uncompromising performance in the most demanding alarm installations.
Professional Long Range Digital PIR Motion Detector 60m Internal Curtain
Model: BOSCH DS778
EAN: 6931240038956 SKU: 931038959
- Extremely long detection range up to 60 meters
- Narrow curtain characteristic perfect for corridors
- Dual pyroelement increasing interference resistance
- Advanced digital temperature compensation
- Precise sensitivity adjustment
- Wide operating temperature range from -40°C to 49°C
- High reliability of the Bosch brand
- Aesthetic and durable internal housing
Description
This professional motion detector is an advanced security system solution designed specifically for protecting large indoor areas requiring long-range detection. The device features an exceptional range of up to 60 meters with a very narrow detection pattern (a 4.6-meter wide curtain), making it an ideal choice for securing long corridors, warehouses, production halls, or retail storefronts.
Thanks to the use of a dual pyroelement and advanced digital signal analysis, the detector effectively eliminates false alarms by reacting precisely to human movement. The main advantages of the product are primarily the reliability guaranteed by a renowned manufacturer and innovative thermal imaging processing technologies.
The digital temperature compensation function allows the device to operate stably even in changing environmental conditions, automatically adjusting detection sensitivity to the room temperature. The robust housing and wide operating temperature range (from -40 to +49 degrees Celsius) ensure the durability and longevity of the system. Installation of the device is simple and intuitive, and the sensitivity adjustment feature allows for optimal matching of operating parameters to the specific requirements of the protected object. It is an excellent investment in security that combines modern design with uncompromising performance in the most demanding alarm installations.
Specification
Application
Internal - dedicated to protecting large industrial and office facilities
Pyroelement
Dual - ensures high resistance to interference and false alarms through precise differential infrared radiation analysis
Sensor Type
Passive Infrared (PIR) - technology for detecting changes in thermal radiation emitted by moving objects
Range
60 x 4.6 m - unique curtain characteristic allowing for effective perimeter protection of long sections
Sensitivity Adjustment
Yes - allows for detector optimization based on the level of thermal noise in the environment
Pet Immunity
None - device optimized for maximum range for intruder detection
Maximum Output Load
125 mA / 28 V DC - standard relay-type alarm output
Digital Temperature Compensation
Yes - this function dynamically adjusts the detection threshold depending on the ambient temperature. Thanks to this, the detector maintains high effectiveness even when the ambient temperature approaches human body temperature
Power Supply
12 V DC - standard voltage for intrusion detection systems
Current Consumption
18 mA - energy-saving design reducing requirements for buffer power supplies
Operating Temperature
-40 °C ... 49 °C - extremely wide temperature range allowing for installation in unheated halls
Signal Processing
Digital - advanced algorithms analyzing amplitude, duration, and signal polarity from the pyroelement
Tamper Protection
Tamper contact detecting opening of the device housing
Warranty
2 years (manufacturer's)
Contents
1x PIR Detector
1x Set of mounting screws
1x User Manual PL/EN
Dimensions, Weight
Product dimensions: 59 x 95 x 149 mm (D x W x H)
Packaging dimensions: 170 x 110 x 65 mm (D x W x H)
Product weight: 195 g
Weight with packaging: 260 g
