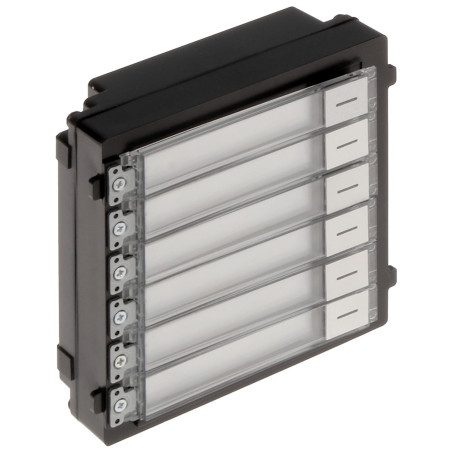

6-button bell module for Hikvision IP modular video intercom surface or flush mount Hikvision DS-KD-KK
zł399.75
Tax included
The DS-KD-KK module is a modern solution designed to expand Hikvision video intercom systems with additional call buttons. The device is designed for full compatibility with the DS-KD8003-IME1 and DS-KD8003-IME2 master modules, allowing for the creation of personalised entry systems tailored to the needs of multi-apartment buildings or offices.
The main advantage of the module is that it is equipped with 6 physical bell buttons, which allows for direct calling of six different premises or users. The robust housing made of high-quality silver plastic features an IP65 protection rating, which guarantees full resistance to harsh weather conditions, dust, and water jets. As a result, the module can be safely mounted outdoors.
Mounting the DS-KD-KK module is extremely flexible due to the use of dedicated mounting housings. Depending on installation requirements, the user can choose flush-mounted housings from the DS-KD-ACF series or surface-mounted ones from the DS-KD-ACW series. The aesthetic aluminium masking frames, which are included with the housings, ensure an elegant and modern appearance for the entire outdoor station. The device operates in a wide temperature range from -40°C to 60°C, making it a reliable element of the security system in all climates. The module is powered directly from the master unit, which simplifies cabling and shortens installation time.
6-button bell module for Hikvision IP modular video intercom surface or flush mount
Model: Hikvision DS-KD-KK
EAN: 6931240026564 SKU: 931026560
- Full compatibility with DS-KD8003-IME1 and DS-KD8003-IME2 master units
- Equipped with 6 independent bell buttons
- High IP65 protection rating ensuring weather resistance
- Solid and aesthetic housing in silver colour
- Flush or surface mounting capability in dedicated frames
- Wide operating temperature range from -40°C to 60°C
- Easy installation and configuration within the Hikvision modular system
- Power supply and communication provided directly via the master module
Description
The DS-KD-KK module is a modern solution designed to expand Hikvision video intercom systems with additional call buttons. The device is designed for full compatibility with the DS-KD8003-IME1 and DS-KD8003-IME2 master modules, allowing for the creation of personalised entry systems tailored to the needs of multi-apartment buildings or offices.
The main advantage of the module is that it is equipped with 6 physical bell buttons, which allows for direct calling of six different premises or users. The robust housing made of high-quality silver plastic features an IP65 protection rating, which guarantees full resistance to harsh weather conditions, dust, and water jets. As a result, the module can be safely mounted outdoors.
Mounting the DS-KD-KK module is extremely flexible due to the use of dedicated mounting housings. Depending on installation requirements, the user can choose flush-mounted housings from the DS-KD-ACF series or surface-mounted ones from the DS-KD-ACW series. The aesthetic aluminium masking frames, which are included with the housings, ensure an elegant and modern appearance for the entire outdoor station. The device operates in a wide temperature range from -40°C to 60°C, making it a reliable element of the security system in all climates. The module is powered directly from the master unit, which simplifies cabling and shortens installation time.
Specification
System compatibility
Hikvision IP video intercom master units: DS-KD8003-IME1, DS-KD8003-IME2
Number of buttons
6 physical call bell buttons
Power supply
Provided by the central unit (DS-KD8003-IME1 or DS-KD8003-IME2)
Power consumption
Very low power consumption: ≤ 2 W
Ingress protection rating
IP65 (protection against dust ingress and powerful water jets)
Operating temperature
Extremely wide range: -40 °C ... 60 °C
Operating humidity
10 % ... 95 % (relative humidity, non-condensing)
Housing material
High-quality plastic, waterproof construction
Colour
Elegant silver colour
Mounting method
Requires dedicated housings: DS-KD-ACF (flush-mount) or DS-KD-ACW (surface-mount)
Manufacturer code (SAP)
305301077
Warranty
3 years (36 months) manufacturer warranty
Software and system
The module works with the Hikvision ecosystem managed by the Hik-Connect mobile application and iVMS-4200 PC software. The Hik-Connect application allows for remote call answering, real-time audio-video conversations, and remote door lock release via smartphone (Android/iOS). The system allows for full integration with IP surveillance cameras, recorders, and alarm systems, offering centralised security management. The iVMS-4200 software provides advanced network parameter configuration, tenant list management, and system event log viewing.
Application
Multi-tenant systems, office buildings, multi-family homes, gated communities
Content
1x DS-KD-KK keypad module
1x Mounting accessories (connecting cables)
1x Quick start guide
Dimensions, Weight
Product dimensions: 34 x 100 x 98 mm (D x W x H)
Package dimensions: 80 x 155 x 155 mm (D x W x H)
Product weight: 190 g
Weight with packaging: 344 g
