- New

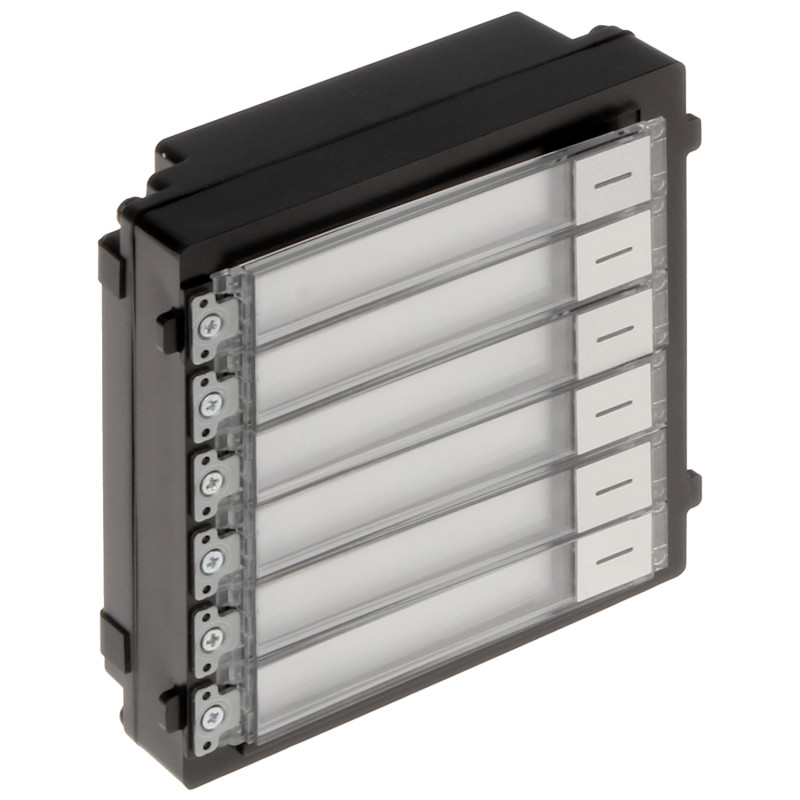

6-Button Call Module for Modular IP Video Intercom Surface or Flush Mount Hikvision DS-KD-KK
zł399.75
Tax included
The DS-KD-KK module is a modern solution designed to expand Hikvision video intercom systems with additional call buttons. The device has been designed for full compatibility with main units of the DS-KD8003-IME1 and DS-KD8003-IME2 series, allowing for the creation of personalized entry systems tailored to the needs of multi-family buildings or offices.
The main advantage of the module is that it is equipped with 6 physical call buttons, which allows for direct calling of six different premises or users. The robust housing made of high-quality plastic in silver color features an IP65 protection rating, which guarantees full resistance to harsh weather conditions, dust, and water jets. As a result, the module can be safely installed outside buildings.
The installation of the DS-KD-KK module is extremely flexible due to the use of dedicated mounting housings. Depending on installation needs, the user can choose flush-mounted housings from the DS-KD-ACF series or surface-mounted ones from the DS-KD-ACW series. The aesthetic masking frames made of aluminum, which are included with the housings, ensure an elegant and modern look for the entire outdoor station. The device operates in a wide temperature range from -40°C to 60°C, making it a reliable element of the security system in a temperate climate. The module is powered directly from the main unit, which simplifies cabling and reduces installation time.
6-Button Call Module for Modular IP Video Intercom Surface or Flush Mount
Model: Hikvision DS-KD-KK
EAN: 6931240026564 SKU: 931026560
- Full compatibility with main units DS-KD8003-IME1 and DS-KD8003-IME2
- Equipped with 6 independent call buttons
- High IP65 ingress protection rating ensuring resistance to weather conditions
- Solid and aesthetic housing in silver color
- Possibility of flush or surface mounting in dedicated frames
- Wide operating temperature range from -40°C to 60°C
- Easy installation and configuration within the Hikvision modular system
- Power supply and communication provided directly through the main module
Description
The DS-KD-KK module is a modern solution designed to expand Hikvision video intercom systems with additional call buttons. The device has been designed for full compatibility with main units of the DS-KD8003-IME1 and DS-KD8003-IME2 series, allowing for the creation of personalized entry systems tailored to the needs of multi-family buildings or offices.
The main advantage of the module is that it is equipped with 6 physical call buttons, which allows for direct calling of six different premises or users. The robust housing made of high-quality plastic in silver color features an IP65 protection rating, which guarantees full resistance to harsh weather conditions, dust, and water jets. As a result, the module can be safely installed outside buildings.
The installation of the DS-KD-KK module is extremely flexible due to the use of dedicated mounting housings. Depending on installation needs, the user can choose flush-mounted housings from the DS-KD-ACF series or surface-mounted ones from the DS-KD-ACW series. The aesthetic masking frames made of aluminum, which are included with the housings, ensure an elegant and modern look for the entire outdoor station. The device operates in a wide temperature range from -40°C to 60°C, making it a reliable element of the security system in a temperate climate. The module is powered directly from the main unit, which simplifies cabling and reduces installation time.
Specification
System compatibility
Hikvision IP video intercom main units: DS-KD8003-IME1, DS-KD8003-IME2
Number of buttons
6 physical call buttons
Power supply
Provided by the central unit (DS-KD8003-IME1 or DS-KD8003-IME2)
Power consumption
Very low power consumption: ≤ 2 W
Ingress protection rating
IP65 (protection against dust ingress and strong water jets)
Operating conditions - temperature
Extremely wide range: -40 °C ... 60 °C
Operating conditions - humidity
10 % ... 95 % (relative humidity, non-condensing)
Housing material
High-quality plastic, waterproof design
Color
Elegant silver color
Mounting method
Requires dedicated housings: DS-KD-ACF (flush-mount) or DS-KD-ACW (surface-mount)
Manufacturer code (SAP)
305301077
Warranty
3 years (36 months) manufacturer warranty
Software and system
The module works with the Hikvision ecosystem managed by the Hik-Connect mobile app and the iVMS-4200 PC software. The Hik-Connect app allows for remote answering of calls, real-time audio-video conversations, and remote release of the electric strike from a smartphone (Android/iOS). The system allows full integration with IP surveillance cameras, recorders, and alarm systems, offering centralized security management of the facility. The iVMS-4200 software provides advanced configuration of network parameters, tenant list management, and viewing of system event logs.
Application
Multi-tenant systems, office buildings, multi-family homes, gated communities
Contents
1x Keyboard module DS-KD-KK
1x Mounting accessories (connecting cables)
1x Quick start guide
Dimensions, Weight
Product dimensions: 34 x 100 x 98 mm (Depth x Width x Height)
Package dimensions: 80 x 155 x 155 mm (Depth x Width x Height)
Product weight: 190 g
Weight with packaging: 344 g
