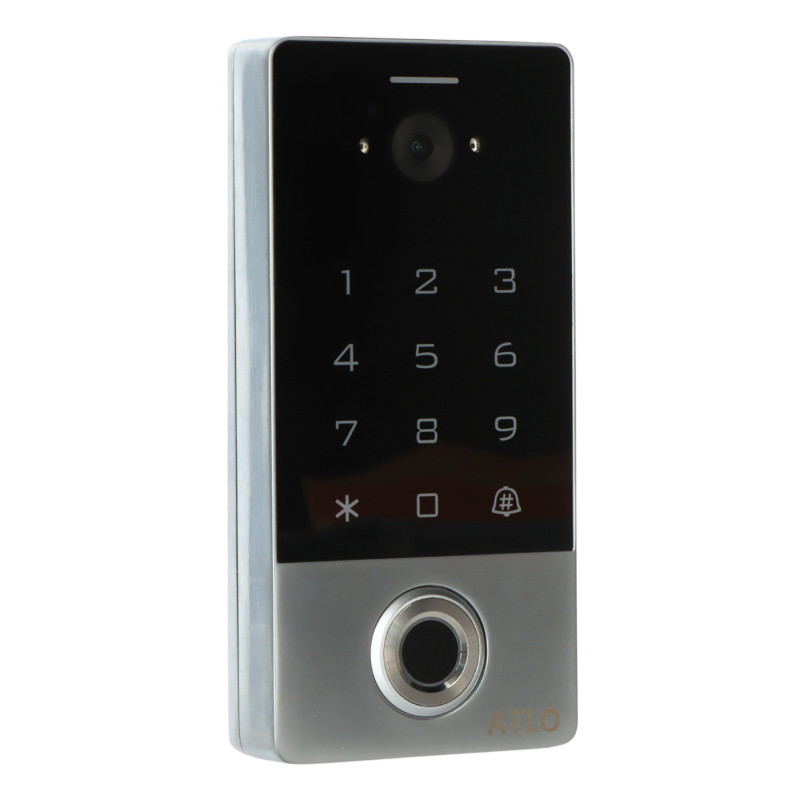

Outdoor IP68 Coded Lock WiFi Video Intercom Fingerprint Reader 125kHz RFID Access Control App

Model: ATLO ATLO-KRMFW-VD-856-TUYA

EAN: 6931240091418 SKU: 931091412

• Autonomous operation without the need for an additional control panel
• Built-in CMOS camera with video intercom function
• Operation via Tuya Smart mobile application (Android/iOS)
• Fingerprint reader with memory for up to 600 patterns
• RFID proximity reader in Unique 125kHz standard
• Remote door unlocking and time-limited code generation
• Hermetic IP68 enclosure made of stainless steel and glass
• Built-in IR illuminator enabling night operation
• Two-way audio communication (built-in microphone and speaker)
• Memory for up to 10,000 users

Description

The ATLO-KRMFW-VD-856-TUYA outdoor, autonomous coded lock is an advanced access control device that combines modern biometric technology, an RFID proximity reader, and WiFi video intercom functionality. Thanks to its robust construction made of stainless steel and tempered glass, the product looks extremely elegant while ensuring durability for years to come.

The device is fully integrated with the popular Tuya Smart home automation platform. This allows for receiving calls from the gate directly on a smartphone, conducting audio-video conversations with guests, and remotely releasing the electric strike. The built-in camera with infrared illumination guarantees a clear image even in total darkness, which significantly increases the property security level.

The lock is characterized by a high IP68 protection class, making it completely resistant to harsh weather conditions such as heavy rain or dust. The vandal-proof housing protects the mechanism against mechanical damage. The device operation is intuitive thanks to backlit touch buttons and the possibility of authorization via fingerprint, 125kHz card, or unique PIN code. This is an ideal solution for private houses, modern offices, or rental apartments where remote access management and a full event history in the mobile application are key.

Specification

RFID Standard

Unique EM 125kHz

Card reading range

2 ... 5 cm

Number of users

10,000 (cards/PIN), 600 (fingerprints)

Authorization methods

Fingerprint, Proximity card, PIN, Mobile application

Communication

Wi-Fi 2.4GHz, Wiegand 26-58 bit interface

Power supply and power consumption

12V DC, maximum consumption 100mA

Camera and video

Built-in CMOS sensor, video recording and photo capture function via the app

Night lighting

Integrated infrared (IR) illuminator

Control outputs

NO/NC relay output, compatibility with exit button

TUYA Software

The Tuya Smart application is a comprehensive tool for managing the automation system. It allows for remote door unlocking, user database management, and defining access schedules. The administrator can generate one-time PIN codes for couriers or temporary codes for guests with a specific validity period. The application stores a full event history (who entered and at what time) and enables two-way voice communication with a person standing in front of the lock. The user receives push notifications about every call attempt or use of the lock, ensuring full control over the object's security regardless of the location.

Housing construction

High-quality stainless steel + Tempered glass panel

Resistance class

IP68 (waterproof), Vandal-proof construction

Operating conditions

Temperature: -40 °C ... 60 °C, Humidity: 0% ... 95% (non-condensing)

Signaling

Sound and optical (white key backlight, LED indicator)

Contents

1x ATLO-KRMFW-VD-856-TUYA coded lock

1x Mounting kit

1x User manual

Dimensions, Weight

Product dimensions: 25 x 70 x 145 mm (Depth x Width x Height)

Packaging dimensions: 60 x 125 x 195 mm (Depth x Width x Height)

Product weight: 470 g

Weight with packaging: 588 g

Zum Download

• CE Declaration
• SAFETY COMPLIANCE
