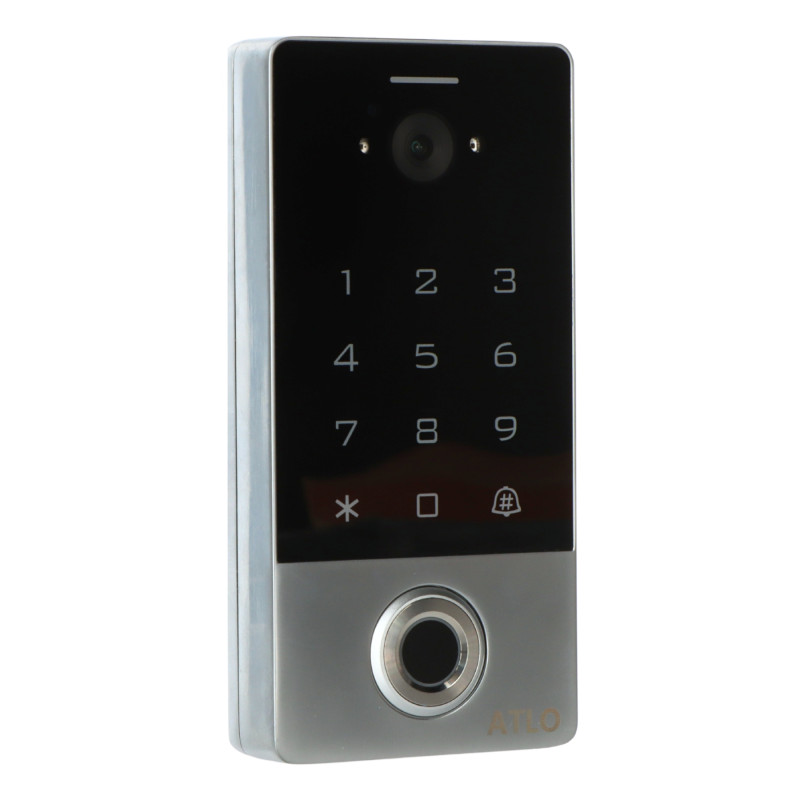

External Digital Lock IP68 WiFi Video Intercom Fingerprint Reader RFID 125kHz Access Control App

Model: ATLO ATLO-KRMFW-VD-856-TUYA

EAN: 6931240091418 SKU: 931091412

• Autonomous operation without the need for an additional controller
• Built-in CMOS camera with video intercom function
• Operation via Tuya Smart mobile app (Android/iOS)
• Fingerprint reader with memory for up to 600 patterns
• RFID proximity reader in Unique 125kHz standard
• Remote door opening and generation of time-based codes
• Hermetic IP68 housing made of stainless steel and glass
• Built-in IR illuminator for night operation
• Two-way audio communication (built-in microphone and speaker)
• Memory for up to 10,000 users

Description

The external, autonomous digital lock ATLO-KRMFW-VD-856-TUYA is an advanced access control device that combines modern biometric technology, an RFID proximity reader, and WiFi video intercom functionality. Thanks to its robust construction made of stainless steel and tempered glass, the product looks extremely elegant while ensuring durability for years.

The device is fully integrated with the popular Tuya Smart home automation platform. This allows you to answer calls from the gate directly on your smartphone, conduct audio-video conversations with guests, and remotely release the electric strike. The built-in camera with infrared illuminator guarantees a clear image even in total darkness, which significantly increases the security level of the property.

The lock is characterized by a high IP68 tightness class, which makes it completely resistant to harsh weather conditions such as heavy rain or dust. The vandal-proof housing protects the mechanism from mechanical damage. Operation of the device is intuitive thanks to backlit touch buttons and the possibility of authorization via fingerprint, 125kHz card, or a unique PIN code. It is an ideal solution for both private homes and modern offices or apartments for rent, where remote access management and a full history of events in the mobile app are key.

Specification

RFID Standard

Unique EM 125kHz

Card reading range

2 ... 5 cm

Number of users

10,000 (cards/PIN), 600 (fingerprints)

Authorization methods

Fingerprint, Proximity card, PIN, Mobile app

Communication

Wi-Fi 2.4GHz, Wiegand 26-58 bit interface

Power supply and power consumption

12V DC, maximum consumption 100mA

Camera and video

Built-in CMOS sensor, video recording and photo capture function via the app

Night illumination

Integrated infrared (IR) illuminator

Control outputs

NO/NC relay output, cooperation with exit button

TUYA Software

The Tuya Smart app is a comprehensive tool for managing the automation system. It allows for remote door opening, management of the user database, and defining time-based access schedules. The administrator can generate one-time PIN codes for couriers or temporary codes for guests with a specific validity period. The app stores a full history of events (who entered and at what time) and enables two-way voice communication with the person standing in front of the lock. The user receives push notifications for every attempt to call or use the lock, which ensures full control over the object's security regardless of the place of stay.

Housing construction

High-quality stainless steel + Tempered glass panel

Resistance class

IP68 (waterproof), Vandal-proof design

Operating conditions

Temperature: -40 °C ... 60 °C, Humidity: 0% ... 95% (non-condensing)

Signaling

Audible and optical (white key backlight, LED indicator)

Content

1x Digital lock ATLO-KRMFW-VD-856-TUYA

1x Mounting kit

1x User manual

Dimensions, Weight

Product dimensions: 25 x 70 x 145 mm (D x W x H)

Packaging dimensions: 60 x 125 x 195 mm (D x W x H)

Product weight: 470 g

Weight with packaging: 588 g
