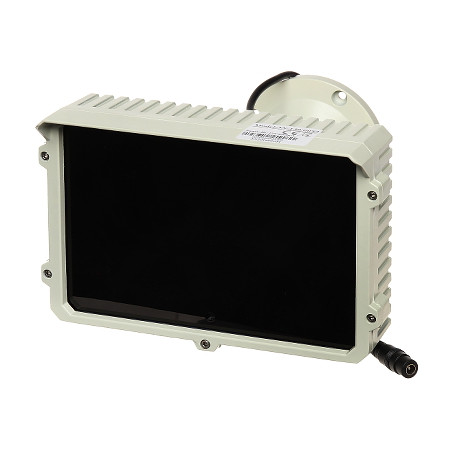

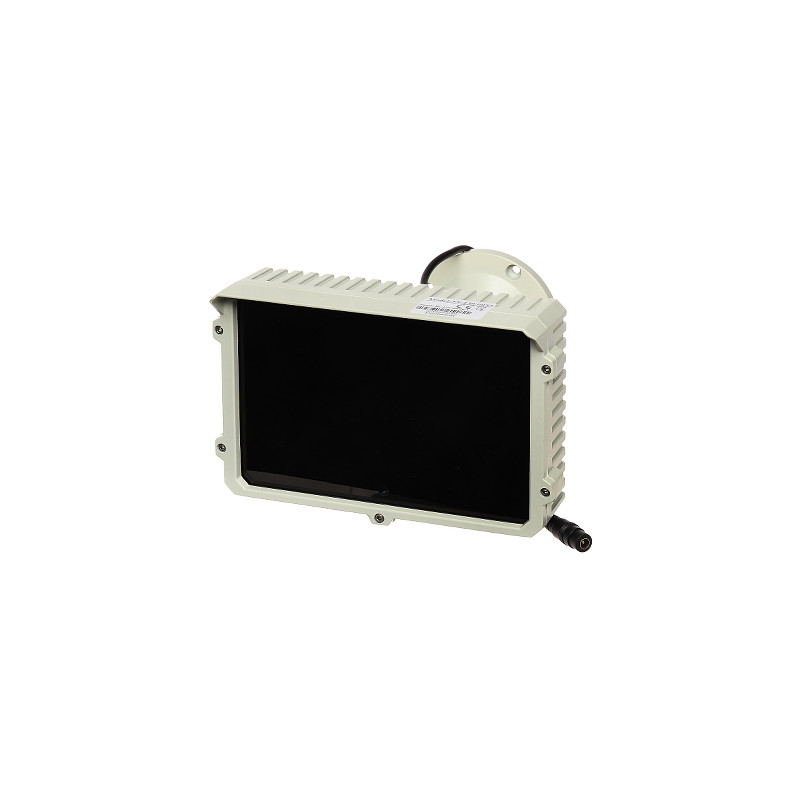

External infrared illuminator IR spotlight for cameras 130m 60 degrees 850nm IP66 metal dusk sensor Delta 3N-130/60S2
zł352.27
Tax included
The professional external infrared illuminator model 3N-130/60S2 is a reliable solution for industrial television systems that require effective area illumination at night or in very low light conditions. The device generates a light beam with a wavelength of 850 nm, which ensures excellent compatibility with most black and white and color cameras with day/night functionality available on the market.
A key advantage of this model is its impressive range of up to 130 meters with a wide 60-degree beam angle. Thanks to this, the illuminator is ideal for monitoring large areas such as parking lots, storage yards, gardens, or the perimeters of industrial facilities. The solid metal housing with an IP66 ingress protection rating guarantees full resistance to harsh weather conditions, including heavy rain, dust, and extreme temperatures ranging from -20°C to 50°C.
The 3N-130/60S2 model is equipped with an intelligent automatic twilight switch. This solution significantly impacts energy efficiency and diode lifespan because the illuminator only activates when the ambient light level falls below the threshold required for the camera to operate in daytime mode. It is a direct successor to the highly regarded 3N-130/60S model, offering even higher operational stability. Aesthetic design and compact mounting dimensions allow for discreet installation on building facades or dedicated masts.
Using an external IR illuminator not only improves image quality but also relieves the camera itself, which reduces digital noise and allows for recording smoother video footage with lower bandwidth and disk space requirements on the recorder.
External infrared illuminator IR spotlight for cameras 130m 60 degrees 850nm IP66 metal dusk sensor
Model: Delta 3N-130/60S2
EAN: 6931240039847 SKU: 931039847
- Very long illumination range up to 130 meters
- Wide 60-degree beam angle ensuring optimal area coverage
- Built-in automatic twilight switch for energy saving
- Durable metal housing resistant to vandalism
- High IP66 ingress protection rating allowing for operation in harsh outdoor conditions
- Standard 850 nm wavelength compatible with most CCTV cameras
- Wide operating temperature range from -20°C to +50°C
- Easy installation thanks to the included adjustable bracket
Description
The professional external infrared illuminator model 3N-130/60S2 is a reliable solution for industrial television systems that require effective area illumination at night or in very low light conditions. The device generates a light beam with a wavelength of 850 nm, which ensures excellent compatibility with most black and white and color cameras with day/night functionality available on the market.
A key advantage of this model is its impressive range of up to 130 meters with a wide 60-degree beam angle. Thanks to this, the illuminator is ideal for monitoring large areas such as parking lots, storage yards, gardens, or the perimeters of industrial facilities. The solid metal housing with an IP66 ingress protection rating guarantees full resistance to harsh weather conditions, including heavy rain, dust, and extreme temperatures ranging from -20°C to 50°C.
The 3N-130/60S2 model is equipped with an intelligent automatic twilight switch. This solution significantly impacts energy efficiency and diode lifespan because the illuminator only activates when the ambient light level falls below the threshold required for the camera to operate in daytime mode. It is a direct successor to the highly regarded 3N-130/60S model, offering even higher operational stability. Aesthetic design and compact mounting dimensions allow for discreet installation on building facades or dedicated masts.
Using an external IR illuminator not only improves image quality but also relieves the camera itself, which reduces digital noise and allows for recording smoother video footage with lower bandwidth and disk space requirements on the recorder.
Specification
Range
130 m. The maximum distance at which the illuminator can illuminate objects so that they are visible to the camera.
Beam angle
60°. The width of the infrared light beam, matched to lenses with a medium field of view.
Optical wavelength
850 nm. Radiation at this wavelength is best absorbed by camera sensors, ensuring a clear image.
Twilight switch
Built-in light sensor. Automatically turns on the IR radiator after dark and turns it off when external lighting is sufficient.
Housing
Metal, cast. Ensures excellent heat dissipation from the IR diodes and protection against mechanical damage.
Ingress protection class
IP66. Full protection against dust ingress and strong water jets, which allows for trouble-free outdoor operation.
Power supply
12 V DC. Standard DC voltage used in security systems.
Power consumption
2.38 A. Requires an efficient power supply with a minimum output current of 3A to ensure stable operation of the illuminator.
Operating temperature
-20°C ... 50°C. The device is adapted to operate in the Polish climate, both in freezing winters and hot summers.
Warranty
2 years (24 months). Full manufacturer support regarding potential repairs and service.
Lighting type
Infrared (IR). Light invisible to the human eye (apart from a faint red glow of the diodes), perfectly visible to cameras.
Application
External / Internal. Ideal for illuminating properties, warehouses, production halls, and open areas.
Technical advantages
Reduction of noise in the camera image due to better illumination of the sensor, which translates into better identification of people and vehicles.
Installation
Adjustable 'U' bracket allows for precise adjustment of the illuminator's tilt angle vertically and horizontally.
Software
Plug&Play type device. Does not have built-in software requiring configuration. All control is performed by the logic circuit of the twilight switch, which autonomously manages the operation of the diode sections based on an analysis of the light intensity falling on the photoresistor sensor. The device does not require a network interface or external controllers.
Contents
1x IR infrared illuminator
1x Set of mounting plugs
1x User manual
Dimensions, Weight
Product dimensions: 200 x 130 x 200 mm (D x W x H)
Packaging dimensions: 230 x 165 x 195 mm (D x W x H)
Product weight: 960 g
Weight with packaging: 1190 g
