- New

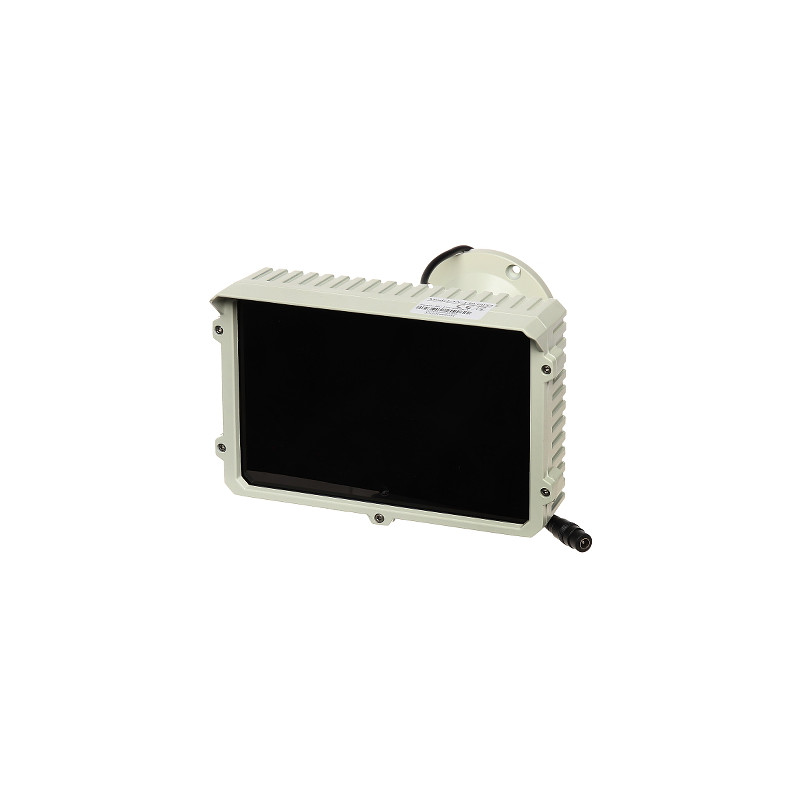

External Infrared Illuminator for Cameras 130m 60 degree 850nm IP66 Metal Twilight Sensor Delta 3N-130/60S2
zł 352,27
Tax included
The professional external infrared illuminator model 3N-130/60S2 is a reliable solution for industrial television systems that require effective area illumination at night or in very low light conditions. The device generates a light beam with a wavelength of 850 nm, which ensures excellent compatibility with most black-and-white and day/night color cameras available on the market.
A key advantage of this model is its impressive range of up to 130 meters with a wide 60-degree beam angle. Thanks to this, the illuminator is ideal for monitoring large areas such as parking lots, storage yards, gardens, or the perimeters of industrial facilities. A solid metal housing with an IP66 rating guarantees full resistance to difficult weather conditions, including heavy rain, dust, and extreme temperatures ranging from -20°C to 50°C.
The 3N-130/60S2 model is equipped with an intelligent, automatic twilight switch. This solution significantly improves energy efficiency and the lifespan of the LEDs, as the illuminator only activates when the ambient light level falls below the threshold required for camera operation in daytime mode. It is a direct successor to the highly regarded 3N-130/60S model, offering even higher operational stability. The aesthetic design and compact mounting dimensions allow for discreet installation on building facades or dedicated masts.
Using an external IR illuminator not only allows for improved image quality but also relieves the camera itself, which reduces digital noise and allows for recording smoother video footage with lower bandwidth and disk space requirements on the recorder.
External Infrared Illuminator for Cameras 130m 60 degree 850nm IP66 Metal Twilight Sensor
Model: Delta 3N-130/60S2
EAN: 6931240039847 SKU: 931039847
- Very long illumination range up to 130 meters
- Wide 60-degree beam angle for optimal area coverage
- Built-in automatic twilight switch for energy saving
- Durable metal housing resistant to vandalism
- High IP66 ingress protection rating for harsh outdoor conditions
- Standard 850 nm wavelength compatible with most CCTV cameras
- Wide operating temperature range from -20°C to +50°C
- Easy installation thanks to the included adjustable mount
Description
The professional external infrared illuminator model 3N-130/60S2 is a reliable solution for industrial television systems that require effective area illumination at night or in very low light conditions. The device generates a light beam with a wavelength of 850 nm, which ensures excellent compatibility with most black-and-white and day/night color cameras available on the market.
A key advantage of this model is its impressive range of up to 130 meters with a wide 60-degree beam angle. Thanks to this, the illuminator is ideal for monitoring large areas such as parking lots, storage yards, gardens, or the perimeters of industrial facilities. A solid metal housing with an IP66 rating guarantees full resistance to difficult weather conditions, including heavy rain, dust, and extreme temperatures ranging from -20°C to 50°C.
The 3N-130/60S2 model is equipped with an intelligent, automatic twilight switch. This solution significantly improves energy efficiency and the lifespan of the LEDs, as the illuminator only activates when the ambient light level falls below the threshold required for camera operation in daytime mode. It is a direct successor to the highly regarded 3N-130/60S model, offering even higher operational stability. The aesthetic design and compact mounting dimensions allow for discreet installation on building facades or dedicated masts.
Using an external IR illuminator not only allows for improved image quality but also relieves the camera itself, which reduces digital noise and allows for recording smoother video footage with lower bandwidth and disk space requirements on the recorder.
Specification
Range
130 m. The maximum distance at which the illuminator can illuminate objects so that they are visible to the camera.
Beam angle
60 °. The width of the infrared light beam, matched to lenses with a medium field of view.
Optical wavelength
850 nm. Radiation at this wavelength is best absorbed by camera sensors, providing a bright image.
Twilight switch
Built-in light sensor. Automatically turns on the IR illuminator after dark and turns it off when external lighting is sufficient.
Housing
Metal, cast. Ensures excellent heat dissipation from the IR LEDs and protection against mechanical damage.
Ingress protection rating
IP66. Full protection against dust ingress and powerful water jets, which allows for trouble-free operation outdoors.
Power supply
12 V DC. Standard DC voltage used in security systems.
Power consumption
2.38 A. Requires an efficient power supply with a minimum output current of 3A to ensure stable operation of the illuminator.
Operating temperature
-20 °C ... 50 °C. The device is adapted to operate in the Polish climate, in both freezing winters and hot summers.
Warranty
2 years (24 months). Full manufacturer support for potential repairs and service.
Illumination type
Infrared (IR). Light invisible to the human eye (except for a slight red glow from the LEDs), perfectly visible to cameras.
Application
Outdoor / Indoor. Ideal for illuminating properties, warehouses, production halls, and open areas.
Technical advantages
Reduction of noise in the camera image due to better sensor illumination, which translates into better identification of people and vehicles.
Installation
Adjustable 'U' bracket allows for precise adjustment of the illuminator's tilt angle vertically and horizontally.
Software
Plug&Play device. It does not have built-in software requiring configuration. All control is carried out by the logic circuit of the twilight switch, which autonomously manages the operation of the LED sections based on the analysis of light intensity falling on the photoresistor sensor. The device does not require a network interface or external controllers.
Contents
1x IR Infrared Illuminator
1x Set of mounting anchors
1x User manual
Dimensions, Weight
Product dimensions: 200 x 130 x 200 mm (D x W x H)
Packaging dimensions: 230 x 165 x 195 mm (D x W x H)
Product weight: 960 g
Weight with packaging: 1190 g
