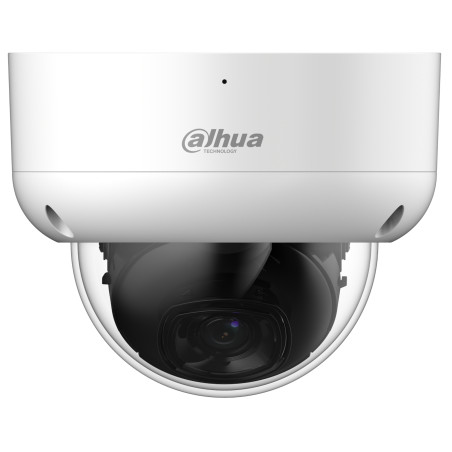

4in1 Vandal Resistant Camera 5Mpx IR 40m Starlight Microphone Wide Angle Dome IP67 IK10 Outdoor Surveillance

Model: DAHUA HAC-HDBW1500EA-A-0280B-S3-DIP

EAN: 6931240021194 SKU: 931021195

• High 5 Mpx resolution for excellent image detail
• Starlight technology - color image in minimal lighting
• 4in1 standard: Supports AHD, HD-CVI, HD-TVI, and analog PAL systems
• Built-in microphone with audio transmission via coaxial cable
• Wide 113° viewing angle thanks to 2.8 mm lens
• Smart IR illuminator with long range up to 40 meters
• Durable metal housing with IP67 and IK10 certifications
• Advanced image enhancement functions: D-WDR, 3D-NR, BLC, HLC

Description

The Dahua HAC-HDBW1500EA-A-0280B-S3-DIP hybrid camera is a modern solution for demanding surveillance systems, combining high 5-megapixel resolution with exceptional mechanical durability. Thanks to Starlight technology, the device captures detailed, full-color images even in extremely low light conditions, making it an ideal choice for nighttime surveillance. The IP67-rated housing guarantees full protection against dust and strong water jets, while the IK10 vandal resistance certificate confirms its resilience against heavy mechanical impact.

Specification

AHD / HD-CVI / HD-TVI / PAL - selectable via DIP switches

The main advantage of this model is its versatility - support for four transmission standards (CVI, AHD, TVI, CVBS) allows for seamless integration with almost any existing recording system. The built-in microphone enables audio recording, transmitted via the same coaxial cable as the video signal (in HD-CVI/TVI standard), which significantly simplifies installation and reduces cabling costs. The 2.8 mm wide-angle lens provides a field of view of up to 113 degrees, allowing for the monitoring of large areas with a single camera. The Smart IR illuminator, with a range of up to 40 meters, automatically adjusts light intensity to prevent overexposure of objects close to the lens.

Super Adapt technology is another key benefit – an intelligent algorithm analyzes the scene in real-time and automatically optimizes image parameters, ensuring vivid colors and high dynamic range without the need for manual configuration by the installer. The use of a metal structure and advanced 3D noise reduction (3D NR) functions makes the image crystal clear and grain-free, even in difficult lighting conditions. This is a reliable property protection tool suitable for offices, warehouses, and residential building facades.

CMOS sensor with 5 Mpx resolution (2960 x 1665 px)

Signal standard

5 Mpx @ 20 fps (TVI), 5 Mpx @ 25 fps (CVI), 4 Mpx @ 25 fps (AHD/CVI), 1080p @ 25 fps, 960H (PAL)

Sensor and matrix

Focal length 2.8 mm, aperture F1.6, fixed focus

Operating resolution

H: 113°, V: 62°, D: 134°

Lens

IR range up to 40 meters, Smart IR function (automatic power adjustment)

Field of view

Built-in microphone, supports audio over coax (CVI/TVI)

IR illuminator

D-WDR (Wide Dynamic Range) - improves visibility in high-contrast scenes; 3D-NR (Digital Noise Reduction) - digital noise reduction; BLC/HLC - back light and highlight compensation

Audio

AGC (Auto Gain Control), WB (Auto/Manual White Balance), Mirror, 8 privacy zones, Day/Night mode with mechanical ICR filter

Image functions - Correction

Super Adapt technology is an intelligent software solution from Dahua that allows the camera to automatically recognize environmental conditions (such as indoor lighting, outdoor lighting, or strong sunlight) and instantly adjust image parameters. This algorithm eliminates the need for tedious OSD configuration by the installer, ensuring optimal image quality, color saturation, and noise reduction in any weather and lighting conditions. It operates proactively, constantly monitoring changes in the frame, which is key for the stability of the surveillance system.

Image functions - Additional

The camera has a built-in OSD menu accessible directly from the recorder via a coaxial cable (Control over Coax function). This menu allows for precise configuration of parameters such as illuminator mode, detection sensitivity, exposure parameters, and switching between video systems. The interface is intuitive and allows for remote management of image functions without the need for physical access to the camera after installation.

Super Adapt algorithm

Dome type, made of metal. IP67 ingress protection (weatherproof), IK10 vandal resistance rating

Software and Interface

12 V DC / 290 mA; Power consumption max 3.5 W

Housing and resistance

Temperature from -40 °C to 60 °C; Humidity below 95%

Power supply and power consumption

1x Camera

1x Mounting plug set

1x Mounting template

1x User manual

Operating conditions

Dimensions, Weight

Product dimensions: 112 x 112 x 89 mm (D x W x H)

Packaging dimensions: 135 x 150 x 140 mm (D x W x H)

Product weight: 440 g

Weight with packaging: 632 g
