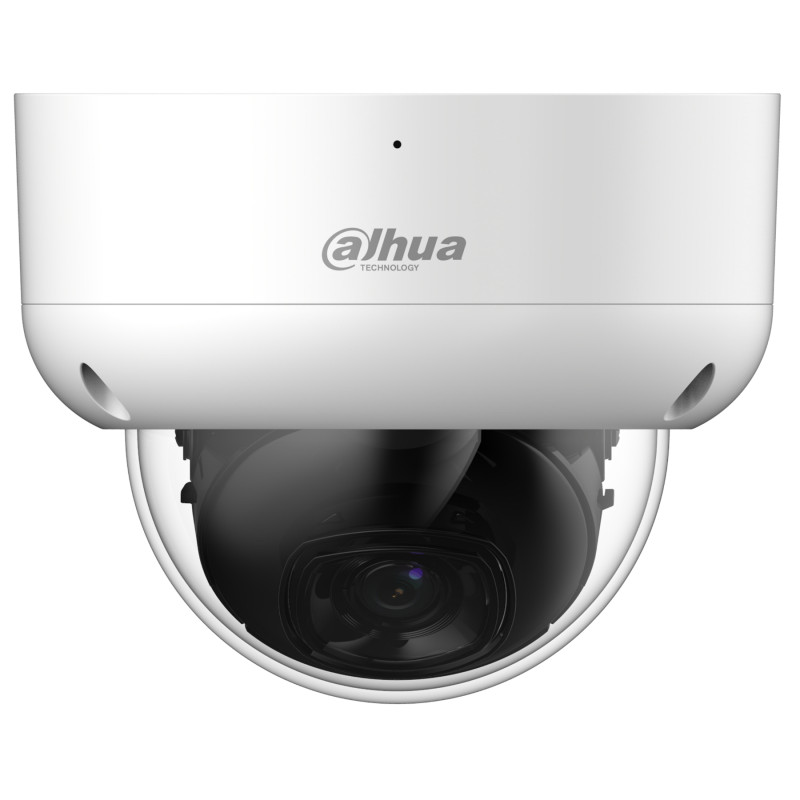

4-in-1 Vandal-Proof Camera 5MP IR 40m Microphone Starlight Wide-Angle Dome IP67 IK10 Outdoor Surveillance

Model: DAHUA HAC-HDBW1500EA-A-0280B-S3-DIP

EAN: 6931240021194 SKU: 931021195

• High 5MP resolution for excellent image detail
• Starlight technology - colour image in minimal lighting
• 4-in-1 standard: Support for AHD, HD-CVI, HD-TVI and analog PAL systems
• Built-in microphone with audio transmission over coaxial cable
• Wide 113° viewing angle thanks to 2.8 mm lens
• Smart IR illuminator with long range up to 40 meters
• Durable metal housing with IP67 and IK10 certifications
• Advanced image enhancement features: D-WDR, 3D-NR, BLC, HLC

Description

The Dahua HAC-HDBW1500EA-A-0280B-S3-DIP hybrid camera is a modern solution for demanding surveillance systems, combining high 5-megapixel resolution with exceptional mechanical durability. Thanks to Starlight technology, the device provides a detailed, colour image even in extremely low light conditions, making it an ideal choice for night surveillance. The IP67-rated housing guarantees full protection against dust and strong water jets, while the IK10 vandal-resistance certificate confirms resistance to strong mechanical impacts.

Specification

The main advantage of the model is its versatility - support for four transmission standards (CVI, AHD, TVI, CVBS) allows for seamless integration with almost any existing video recording system. A built-in microphone allows for sound recording, which is transmitted over the same coaxial cable as the video signal (in HD-CVI/TVI standard), which significantly simplifies installation and reduces cabling costs. The 2.8 mm wide-angle lens provides a field of view of up to 113 degrees, allowing large areas to be monitored using a single camera. The intelligent Smart IR illuminator with a range of up to 40 meters automatically adjusts light intensity so that objects close to the lens are not overexposed.

AHD / HD-CVI / HD-TVI / PAL - selectable via DIP switches

Super Adapt technology is another key benefit - an intelligent algorithm analyzes the scene in real time and automatically optimizes image parameters, ensuring vivid colours and high dynamics without the need for manual configuration by the installer. The use of a metal construction and advanced 3D noise reduction (3D NR) functions makes the image crystal clear, free of grain even in difficult lighting conditions. It is a reliable tool for property protection that will work well in offices, warehouses, and on the facades of residential buildings.

5MP CMOS sensor (2960 x 1665 px)

Signal standard

5MP @ 20 fps (TVI), 5MP @ 25 fps (CVI), 4MP @ 25 fps (AHD/CVI), 1080p @ 25 fps, 960H (PAL)

Sensor and matrix

2.8 mm focal length, F1.6 aperture, fixed focal lens

Operating resolution

H: 113°, V: 62°, D: 134°

Lens

IR range up to 40 meters, Smart IR function (automatic power adjustment)

Viewing angle

Built-in microphone, audio support over coax (CVI/TVI)

Infrared illuminator

D-WDR (Wide Dynamic Range) - improves visibility in high-contrast scenes; 3D-NR (Digital Noise Reduction) - digital noise reduction; BLC/HLC - back light and strong spot light source compensation

Audio

AGC (Auto Gain Control), WB (Auto/Manual White Balance), Mirror, 8 privacy zones, Day/Night mode with mechanical ICR filter

Image functions - Correction

Super Adapt technology is an intelligent software solution by Dahua that allows the camera to automatically recognize environmental conditions (such as indoor, outdoor lighting, or strong sunlight) and instantly change image parameter settings. This algorithm eliminates the need for tedious OSD configuration by the installer, guaranteeing optimal image quality, color saturation, and noise reduction in all weather and lighting conditions. It works proactively, constantly monitoring changes in the frame, which is crucial for the stability of the surveillance system.

Image functions - Additional

The camera has a built-in OSD menu accessible directly from the recorder via a coaxial cable (Control over Coax function). This menu allows for precise configuration of parameters such as illuminator mode, detection sensitivity, exposure parameters, and switching between video systems. The interface is intuitive and allows for remote management of image functions without the need for physical access to the camera after installation.

Super Adapt algorithm

Dome type, made of metal. IP67 ingress protection (weather resistance), IK10 vandal-resistance class

Software and Interface

12 V DC / 290 mA; Power consumption maximum 3.5 W

Housing and resistance

Dimensions, Weight

Product dimensions: 112 x 112 x 89 mm (Depth x Width x Height)

Packaging dimensions: 135 x 150 x 140 mm (Depth x Width x Height)

Product weight: 440 g

Weight with packaging: 632 g
