- New

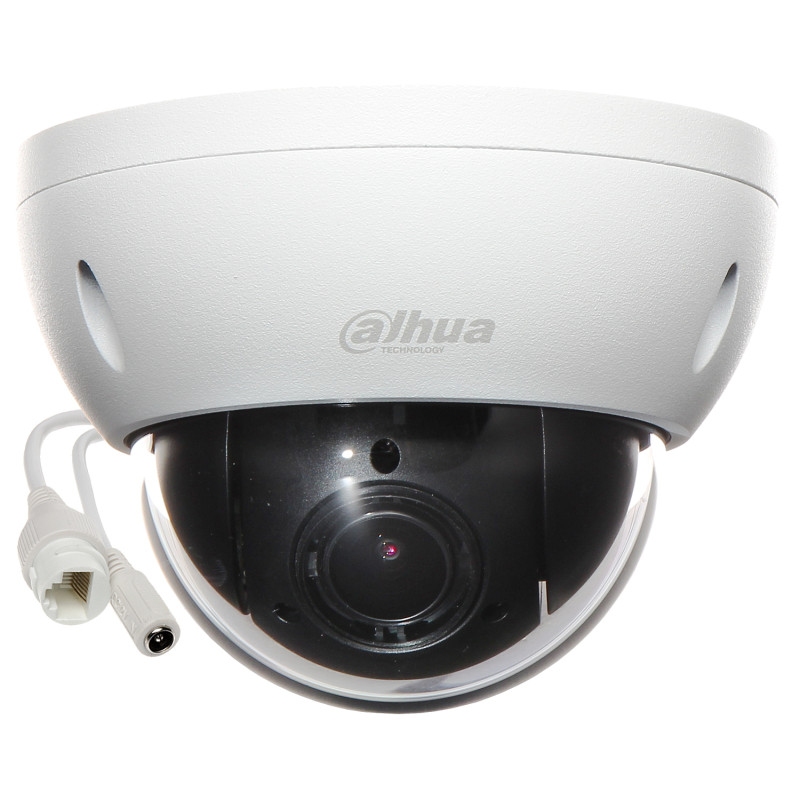

1080p High Speed PTZ IP Camera 2.8-12mm Starlight IVS POE IK10 IP66 DAHUA SD22204DB-GNY
zł1,951.05
Tax included
The SD22204DB-GNY IP camera is an advanced video surveillance solution combining 1080p high resolution with high-speed PTZ functionality. Equipped with a high-class 1/2.8" STARVIS™ CMOS sensor, the device ensures exceptional image quality even in difficult lighting conditions thanks to Starlight technology. It allows for color image retention in minimal light, which is crucial for identifying people and objects at night.
The main advantage of the camera is its 2.8-12mm varifocal lens offering 4x optical zoom and 16x digital zoom. This allows for precise zooming in on distant details without loss of quality. The Speed Dome rotation mechanism offers a wide range of motion (pan 355°, tilt 90°) at speeds up to 100°/s, enabling lightning-fast patrolling of large areas.
The camera supports intelligent IVS image analysis, including human and vehicle classification, face detection, and line crossing. This makes the surveillance system proactive, minimizing the number of false alarms. A solid, metal housing with an IP66 ingress protection rating and IK10 vandal resistance makes the device resistant to harsh weather conditions and sabotage attempts. Micro SD card support up to 512GB guarantees recording continuity even in the event of a network failure. Power supply is provided via the 12V DC standard or convenient PoE (802.3af) technology, which simplifies installation. It is an ideal choice for demanding security systems in commercial and private facilities.
1080p High Speed PTZ IP Camera 2.8-12mm Starlight IVS POE IK10 IP66
Model: DAHUA SD22204DB-GNY
EAN: 6931240027066 SKU: 931027067
- 1/2.8" STARVIS™ CMOS sensor with 2.1 Mpx resolution
- Starlight technology ensuring color images in low light conditions
- 4x optical zoom and 16x digital zoom
- Advanced IVS intelligent analysis (human and vehicle classification)
- IK10 vandal-proof housing and IP66 ingress protection
- Micro SD card support up to 512GB
- PoE (802.3af) or 12V DC power supply
- PTZ high-speed mechanism with 300 presets
Description
The SD22204DB-GNY IP camera is an advanced video surveillance solution combining 1080p high resolution with high-speed PTZ functionality. Equipped with a high-class 1/2.8" STARVIS™ CMOS sensor, the device ensures exceptional image quality even in difficult lighting conditions thanks to Starlight technology. It allows for color image retention in minimal light, which is crucial for identifying people and objects at night.
The main advantage of the camera is its 2.8-12mm varifocal lens offering 4x optical zoom and 16x digital zoom. This allows for precise zooming in on distant details without loss of quality. The Speed Dome rotation mechanism offers a wide range of motion (pan 355°, tilt 90°) at speeds up to 100°/s, enabling lightning-fast patrolling of large areas.
The camera supports intelligent IVS image analysis, including human and vehicle classification, face detection, and line crossing. This makes the surveillance system proactive, minimizing the number of false alarms. A solid, metal housing with an IP66 ingress protection rating and IK10 vandal resistance makes the device resistant to harsh weather conditions and sabotage attempts. Micro SD card support up to 512GB guarantees recording continuity even in the event of a network failure. Power supply is provided via the 12V DC standard or convenient PoE (802.3af) technology, which simplifies installation. It is an ideal choice for demanding security systems in commercial and private facilities.
Specification
Standard
TCP/IP - Modern network communication protocol
Sensor
1/2.8 " STARVIS™ CMOS - High-sensitivity sensor ensuring excellent night vision
Resolution
1920 x 1080 (1080p), 1280 x 960 (1.3 Mpx), 1280 x 720 (720p)
Lens
2.8 mm ... 12 mm - Varifocal with wide viewing angle 99° ... 32°
Zoom
Optical x4 and Digital x16 - Precise image zooming without quality loss
Sensitivity
0.005 Lux in color and 0.0005 Lux in black and white mode (Starlight technology)
PTZ Rotation Parameters
Horizontal range 0°...355°, vertical 0°...90°; Preset speed up to 100°/s horizontal and 60°/s vertical; Supports 300 presets and 8 patrols
Video Compression
H.265+ / H.265 / H.264+ / H.264 / MJPEG - Latest standards saving bandwidth and disk space
Network and Protocols
RJ-45 interface (10/100 Base-TX), ONVIF 21.12, IPv4/IPv6, HTTP, HTTPS, SNMP, RTSP, UDP, SMTP, FTP, DHCP, DNS, DDNS, P2P
Local Storage
Micro SD card slot supporting capacity up to 512GB
Selected Image Functions
D-WDR (Wide Dynamic Range), 2D/3D-DNR (Noise Reduction), EIS (Image Stabilization), F-DNR (Defog), ROI (Region of Interest), BLC/HLC (Light Compensation), ICR (Mechanical IR Filter), AGC, Sharpness, Privacy Zones
Intelligent IVS Analysis
Human and vehicle classification, face detection, line crossing, intrusion, perimeter protection, abandoned/missing object, fast moving, parking detection, crowd gathering
Mobile Software (DMSS)
Free application for Android/iOS. The DMSS (Digital Mobile Surveillance System) mobile application is a professional tool for managing Dahua surveillance systems. It offers users high-resolution live viewing, remote playback of recordings from a memory card or recorder, and instant push notifications about events detected by IVS analysis (e.g., intrusion). The application allows for controlling PTZ cameras using screen gestures and configuring camera settings without the need for a computer. It supports P2P cloud access, which eliminates the need for a public IP address.
Housing and Resistance
Speed Dome type, metal construction; IP66 ingress protection; IK10 vandal resistance; White color
Power Supply and Environment
PoE (802.3af) or 12V DC / 460 mA; Power consumption ≤ 6.1 W; Operating temperature: -30 °C ... 60 °C
Contents
1x High-speed IP camera
1x Mounting accessories
Dimensions, Weight
Product dimensions: 122 x 122 x 89 mm (Depth x Width x Height)
Packaging dimensions: 150 x 160 x 160 mm (Depth x Width x Height)
Product weight: 540 g
Weight with packaging: 950 g
