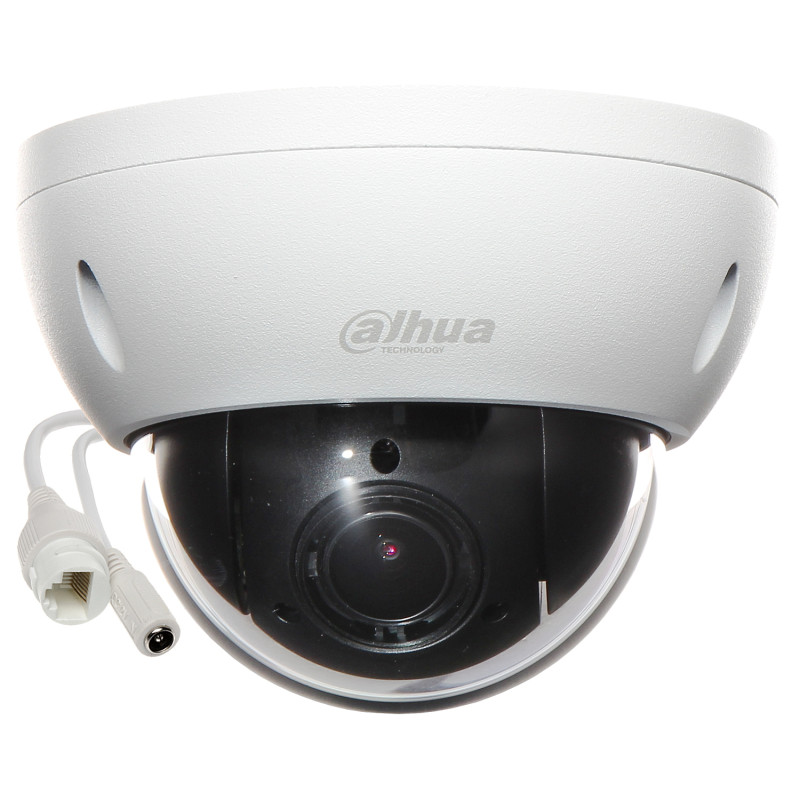

PTZ IP Camera 1080p 2.8-12mm Starlight IVS POE IK10 IP66

Model: DAHUA SD22204DB-GNY

EAN: 6931240027066 SKU: 931027067

• 1/2.8" STARVIS™ CMOS sensor with 2.1 Mpx resolution
• Starlight technology providing color images in low light
• 4x optical zoom and 16x digital zoom
• Advanced intelligent IVS analysis (human and vehicle classification)
• Vandal-proof housing with IK10 standard and IP66 sealing
• Support for Micro SD cards up to 512GB
• PoE power supply (802.3af) or 12V DC
• High-speed PTZ mechanism with 300 presets

Description

The SD22204DB-GNY IP camera is an advanced video surveillance solution that combines high 1080p resolution with PTZ functionality. Equipped with a high-class 1/2.8" STARVIS™ CMOS sensor, the device delivers exceptional image quality even in difficult lighting conditions thanks to Starlight technology. It allows for color images to be maintained in minimal light, which is crucial for identifying people and objects at night.

Specification

The camera supports intelligent IVS image analysis, including human and vehicle classification, face detection, and line crossing. This makes the monitoring system proactive, minimizing the number of false alarms. A sturdy metal housing with an IP66 ingress protection rating and IK10 vandal resistance makes the device resistant to harsh weather conditions and sabotage attempts. Support for Micro SD cards up to 512GB ensures recording continuity even in case of network failure. Power is supplied via the 12V DC standard or convenient PoE technology (802.3af), simplifying installation. It is an ideal choice for demanding security systems in commercial and private facilities.

The most important advantage of the camera is its 2.8-12mm varifocal lens offering 4x optical zoom and 16x digital zoom. This allows for precise zooming in on distant details without loss of quality. The Speed Dome rotation mechanism offers a wide range of motion (pan 355°, tilt 90°) at speeds of up to 100°/s, enabling instant patrolling of large areas.

Standard

TCP/IP - Modern network communication protocol

Sensor

1/2.8 " STARVIS™ CMOS - High-sensitivity sensor providing excellent night imagery

Resolution

1920 x 1080 (1080p), 1280 x 960 (1.3 Mpx), 1280 x 720 (720p)

Lens

2.8 mm ... 12 mm - Varifocal with a wide viewing angle of 99° ... 32°

Zoom

Optical x4 and Digital x16 - Precise image zooming without quality loss

Sensitivity

0.005 Lux in color and 0.0005 Lux in black and white mode (Starlight technology)

PTZ movement parameters

Horizontal range 0°...355°, vertical 0°...90°; Preset speeds up to 100°/s horizontal and 60°/s vertical; Support for 300 presets and 8 patrol routes

Video compression

H.265+ / H.265 / H.264+ / H.264 / MJPEG - Latest standards saving bandwidth and disk space

Network and protocols

RJ-45 interface (10/100 Base-TX), ONVIF 21.12, IPv4/IPv6, HTTP, HTTPS, SNMP, RTSP, UDP, SMTP, FTP, DHCP, DNS, DDNS, P2P

Local storage

Micro SD card slot supporting capacities up to 512GB

Selected image functions

D-WDR (Wide Dynamic Range), 2D/3D-DNR (Noise Reduction), EIS (Image Stabilization), F-DNR (Defog), ROI (Region of Interest), BLC/HLC (Light Compensation), ICR (Mechanical IR Filter), AGC, Sharpness, Privacy Zones

Intelligent IVS analysis

Human and vehicle classification, face detection, line crossing, intrusion, perimeter protection, abandoned/missing object, fast movement, parking detection, crowd gathering

Mobile software (DMSS)

Free Android/iOS application. The DMSS (Digital Mobile Surveillance System) mobile app is a professional tool for managing Dahua monitoring systems. It offers users high-resolution live viewing, remote playback of recordings from a memory card or recorder, and instant push notifications about events detected by IVS analysis (e.g., intrusion). The app enables PTZ camera control using gestures on the screen and configuration of camera settings without the need for a computer. It supports P2P cloud access, which eliminates the need for a public IP address.

Housing and resistance

Speed Dome type, metal construction; IP66 ingress protection class; IK10 vandal resistance; White color

Power and environment

PoE (802.3af) or 12V DC / 460 mA; Power consumption ≤ 6.1 W; Operating temperature: -30 °C ... 60 °C

Dimensions, Weight

Product dimensions: 122 x 122 x 89 mm (Depth x Width x Height)

Packaging dimensions: 150 x 160 x 160 mm (Depth x Width x Height)

Product weight: 540 g

Weight with packaging: 950 g
