- New

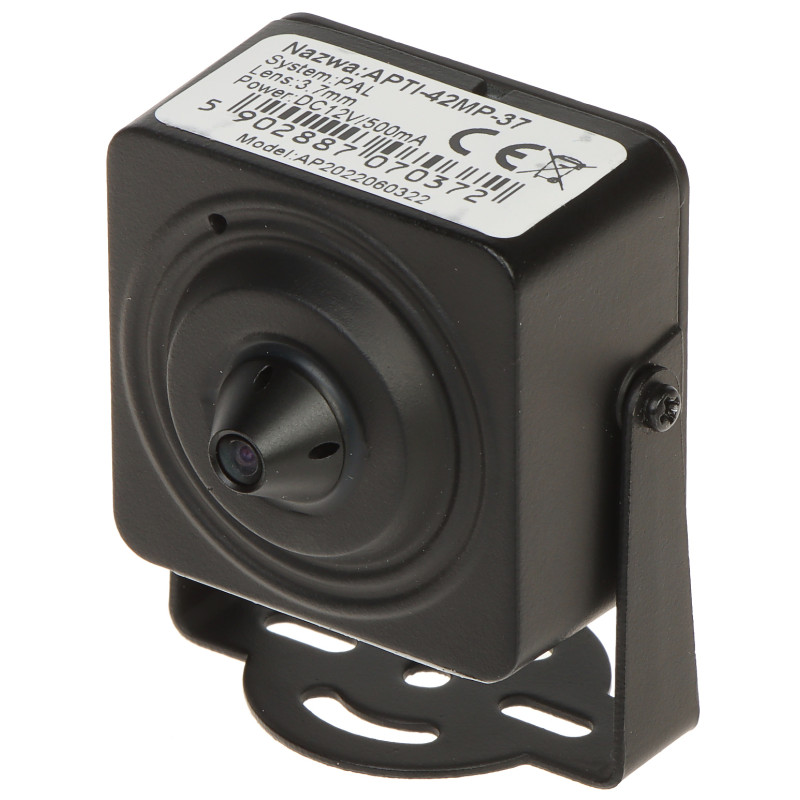

4 Mpx Pinhole IP Camera Discreet Micro Camera 3.7mm Lens Hidden Monitoring PoE SD Audio APTI APTI-42MP-37
zł371.95
Tax included
The miniature indoor APTI-42MP-37 IP camera is a professional solution dedicated to discreet monitoring of rooms where aesthetics and camouflage are priorities. Thanks to the use of a Pinhole (3.7 mm) lens, the device can easily be hidden in furniture, structures, or other everyday objects, remaining virtually unnoticeable to unauthorized persons. An exceptional advantage of this model is the advanced 4 Mpx (2688 x 1512) Progressive Scan CMOS sensor, which guarantees an extremely detailed and clear image, enabling flawless identification of people and environmental details.
The camera was designed for versatility – it supports PoE (Power over Ethernet) power, which significantly simplifies installation by transmitting data and power via a single twisted-pair cable. Additionally, the built-in microphone allows for sound recording, which, when combined with high-quality video, creates a complete surveillance system. The device supports the latest H.265+ compression standards, allowing for memory savings on the Micro SD card (support up to 512GB) and lower network bandwidth consumption. The durable metal housing with compact dimensions ensures durability and operational stability in difficult mounting conditions. The camera is ideal for offices, shops, and home use, offering advanced IVS video analytics functions and remote access via the BitVision cloud.
4 Mpx Pinhole IP Camera Discreet Micro Camera 3.7mm Lens Hidden Monitoring PoE SD Audio
Model: APTI APTI-42MP-37
EAN: 6931240062159 SKU: 931062156
- High 4 Mpx (2688 x 1512) resolution for excellent detail
- Discreet 3.7 mm Pinhole lens making it easy to hide the camera
- PoE (802.3af) and 12V DC power supply for installation convenience
- Built-in microphone for ambient sound recording
- Micro SD card support up to 512GB for local storage
- Advanced H.265+ compression to save disk space
- Wide Dynamic Range (WDR) 120dB for improved visibility in high-contrast lighting
- Remote viewing via the free BitVision mobile app (Android/iOS)
- Intelligent Video Analytics (IVS) functions - intrusion detection
- Durable, mini metal housing with dimensions 38x38x30 mm
- NDAA certification ensuring security and compliance with standards
- Support for ONVIF 2.4 protocol
Description
The miniature indoor APTI-42MP-37 IP camera is a professional solution dedicated to discreet monitoring of rooms where aesthetics and camouflage are priorities. Thanks to the use of a Pinhole (3.7 mm) lens, the device can easily be hidden in furniture, structures, or other everyday objects, remaining virtually unnoticeable to unauthorized persons. An exceptional advantage of this model is the advanced 4 Mpx (2688 x 1512) Progressive Scan CMOS sensor, which guarantees an extremely detailed and clear image, enabling flawless identification of people and environmental details.
The camera was designed for versatility – it supports PoE (Power over Ethernet) power, which significantly simplifies installation by transmitting data and power via a single twisted-pair cable. Additionally, the built-in microphone allows for sound recording, which, when combined with high-quality video, creates a complete surveillance system. The device supports the latest H.265+ compression standards, allowing for memory savings on the Micro SD card (support up to 512GB) and lower network bandwidth consumption. The durable metal housing with compact dimensions ensures durability and operational stability in difficult mounting conditions. The camera is ideal for offices, shops, and home use, offering advanced IVS video analytics functions and remote access via the BitVision cloud.
Specification
Standard and Sensor
TCP/IP; Sensor 1/3 " Progressive Scan CMOS
Resolution and Sensor
4 Mpx (2688 x 1512); 3.7 Mpx (2560 x 1440); 1080p (1920 x 1080); 720p (1280 x 720)
Optics
Lens 3.7 mm (pinhole); Viewing angle: 70 ° (manufacturer data), 90 ° (our tests)
Sensitivity and Dynamic Range
Sensitivity: 0.01 Lux @ F1.6 (AGC off); WDR - 120 dB - Wide Dynamic Range; S/N ratio: 60 dB
Image Compression
H.265+ / H.265 / H.264+ / H.264 / MJPEG; Main stream transmission rate: 25 fps @ 4 Mpx
Audio
Built-in microphone; Audio transmission over network
Network and Interface
RJ-45 (10/100 Base-T); Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, SMTP, UDP
Image Functions
3D-DNR (noise reduction), ROI (region of interest enhancement), F-DNR (Defog), BLC (backlight compensation), HLC (highlight compensation), Flicker Control, Mirror, Sharpness, Motion detection, Privacy zones
Intelligent Analytics
IVS - Intrusion
Memory and Recording
Micro SD card slot up to 512GB (local storage possible)
Mobile Software
BitVision application (Android/iOS): Free mobile application offering stable live view via cloud (P2P). It allows for remote playback of recordings from an SD card, configuration of camera parameters, receiving push notifications about motion detection or IVS events, and managing multiple devices from a single account. The interface is available in Polish, characterized by fast response time and intuitive operation without the need for port forwarding on the router.
PC Software
iVMS320 / SearchTool: Comprehensive software for Windows systems designed for searching, configuring, and managing APTI cameras on a local network and over the internet. The iVMS320 program offers an advanced monitoring panel, recording schedules, and e-map support. SearchTool allows for quick IP address changes and firmware updates.
Power Supply and Power Consumption
PoE (802.3af), 12 V DC / 170 mA; Power consumption: ≤ 2.1 W
Housing and Environment
Mini - Metal; Color: Black; Operating temperature: -20 °C ... 60 °C; Dimensions: 37.5 x 37.5 x 30 mm
Content
1x IP Camera
1x Mounting accessories
1x User manual
Dimensions, Weight
Product dimensions: 30 x 38 x 38 mm (D x W x H)
Package dimensions: 60 x 120 x 85 mm (D x W x H)
Product weight: 120 g
Weight with packaging: 178 g
