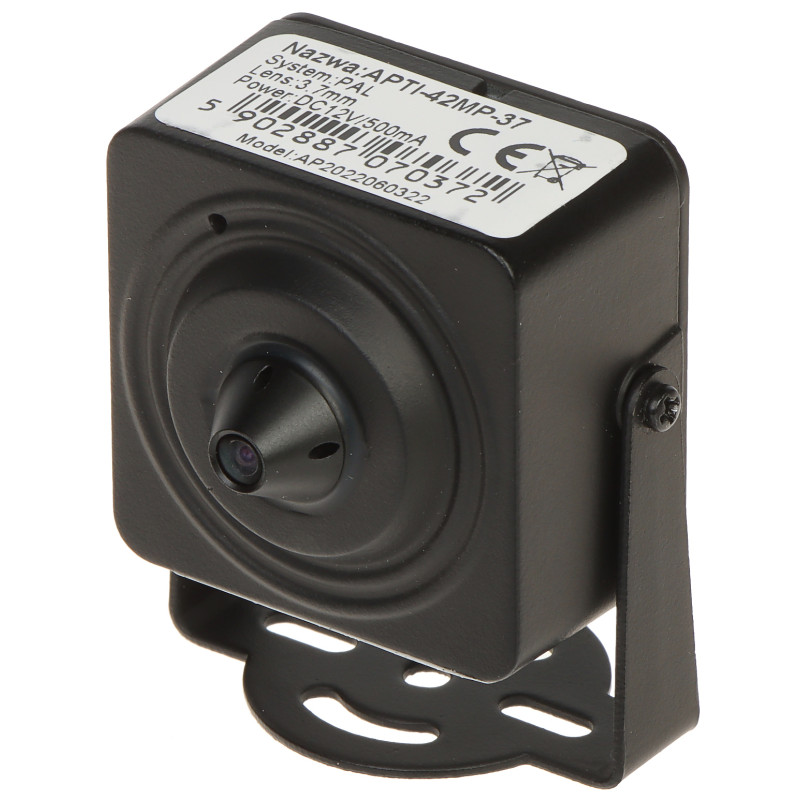

4MP Pinhole IP Camera Discreet Micro Camera 3.7mm Lens Hidden Monitoring PoE SD Audio APTI APTI-42MP-37
zł371.95
Tax included
The miniature indoor APTI-42MP-37 IP camera is a professional solution dedicated to discreet room monitoring, where aesthetics and camouflage are priorities. Thanks to the use of a Pinhole type lens (3.7 mm), the device can be easily hidden in casings, furniture, or other everyday objects, remaining virtually unnoticeable to bystanders. An exceptional advantage of this model is the advanced 4 Mpx (2688 x 1512) Progressive Scan CMOS sensor, which guarantees an extremely detailed and clear image, allowing for accurate identification of people and environmental details.
The camera was designed with versatility in mind – it supports PoE (Power over Ethernet) power, which significantly simplifies installation by transmitting data and power via a single Ethernet cable. Additionally, the built-in microphone allows for sound recording, which, combined with high-quality imagery, creates a complete surveillance system. The device supports the latest H.265+ compression standards, allowing for storage savings on a Micro SD card (support up to 512GB) and lower network bandwidth consumption. A durable, metal casing with compact dimensions ensures durability and stability of operation in difficult installation conditions. The camera is ideal for offices, shops, and home use, offering advanced IVS image analysis functions and remote access via the BitVision cloud.
4MP Pinhole IP Camera Discreet Micro Camera 3.7mm Lens Hidden Monitoring PoE SD Audio
Model: APTI APTI-42MP-37
EAN: 6931240062159 SKU: 931062156
- High resolution 4 Mpx (2688 x 1512) for perfect detail
- Discreet 3.7mm Pinhole lens for easy camera concealment
- PoE (802.3af) and 12V DC power supply for installation convenience
- Built-in microphone for ambient sound recording
- Micro SD card support up to 512GB for local storage
- Advanced H.265+ compression to save disk space
- Wide Dynamic Range (WDR) 120dB for improved visibility in high-contrast lighting
- Remote viewing via the free BitVision mobile app (Android/iOS)
- Intelligent Video Surveillance (IVS) functions - intrusion detection
- Durable metal mini housing, dimensions 38x38x30 mm
- NDAA compliant for security and standards compliance
- ONVIF 2.4 protocol support
Description
The miniature indoor APTI-42MP-37 IP camera is a professional solution dedicated to discreet room monitoring, where aesthetics and camouflage are priorities. Thanks to the use of a Pinhole type lens (3.7 mm), the device can be easily hidden in casings, furniture, or other everyday objects, remaining virtually unnoticeable to bystanders. An exceptional advantage of this model is the advanced 4 Mpx (2688 x 1512) Progressive Scan CMOS sensor, which guarantees an extremely detailed and clear image, allowing for accurate identification of people and environmental details.
The camera was designed with versatility in mind – it supports PoE (Power over Ethernet) power, which significantly simplifies installation by transmitting data and power via a single Ethernet cable. Additionally, the built-in microphone allows for sound recording, which, combined with high-quality imagery, creates a complete surveillance system. The device supports the latest H.265+ compression standards, allowing for storage savings on a Micro SD card (support up to 512GB) and lower network bandwidth consumption. A durable, metal casing with compact dimensions ensures durability and stability of operation in difficult installation conditions. The camera is ideal for offices, shops, and home use, offering advanced IVS image analysis functions and remote access via the BitVision cloud.
Specification
Standard and Sensor
TCP/IP; Sensor 1/3 " Progressive Scan CMOS
Resolution and Matrix
4 Mpx (2688 x 1512); 3.7 Mpx (2560 x 1440); 1080p (1920 x 1080); 720p (1280 x 720)
Optics
3.7 mm (pinhole) lens; Viewing angle: 70 ° (manufacturer data), 90 ° (our tests)
Sensitivity and Dynamic Range
Sensitivity: 0.01 Lux @ F1.6 (AGC off); WDR - 120 dB - Wide Dynamic Range; S/N ratio: 60 dB
Image Compression
H.265+ / H.265 / H.264+ / H.264 / MJPEG; Main stream transmission speed: 25 fps @ 4 Mpx
Audio
Built-in microphone; Audio transmission over network
Network and Interface
RJ-45 (10/100 Base-T); Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, SMTP, UDP
Image Functions
3D-DNR (noise reduction), ROI (region of interest enhancement), F-DNR (Defog), BLC (backlight compensation), HLC (highlight compensation), Flicker Control, Mirror, Sharpness, Motion detection, Privacy zones
Intelligent Analysis
IVS - Intrusion
Memory and Recording
Micro SD card slot up to 512GB (local recording possible)
Mobile Software
BitVision Application (Android/iOS): Free mobile application offering stable live preview via the cloud (P2P). It allows for remote playback of SD card recordings, configuration of camera parameters, receiving push notifications about motion detection or IVS events, and managing multiple devices from one account. The interface is available in multiple languages, characterized by fast response time and intuitive operation without the need for port forwarding on the router.
PC Software
iVMS320 / SearchTool: Comprehensive software for Windows used for searching, configuring, and managing APTI cameras in a local network and over the internet. The iVMS320 program offers an advanced monitoring panel, recording schedules, and support for e-maps. SearchTool allows for quick IP address changes and firmware updates.
Power Supply and Consumption
PoE (802.3af), 12 V DC / 170 mA; Power consumption: ≤ 2.1 W
Housing and Environment
Mini - Metal; Color: Black; Operating temperature: -20 °C ... 60 °C; Dimensions: 37.5 x 37.5 x 30 mm
Contents
1x IP Camera
1x Mounting accessories
1x User manual
Dimensions, Weight
Product dimensions: 30 x 38 x 38 mm (D x W x H)
Package dimensions: 60 x 120 x 85 mm (D x W x H)
Product weight: 120 g
Weight with package: 178 g
