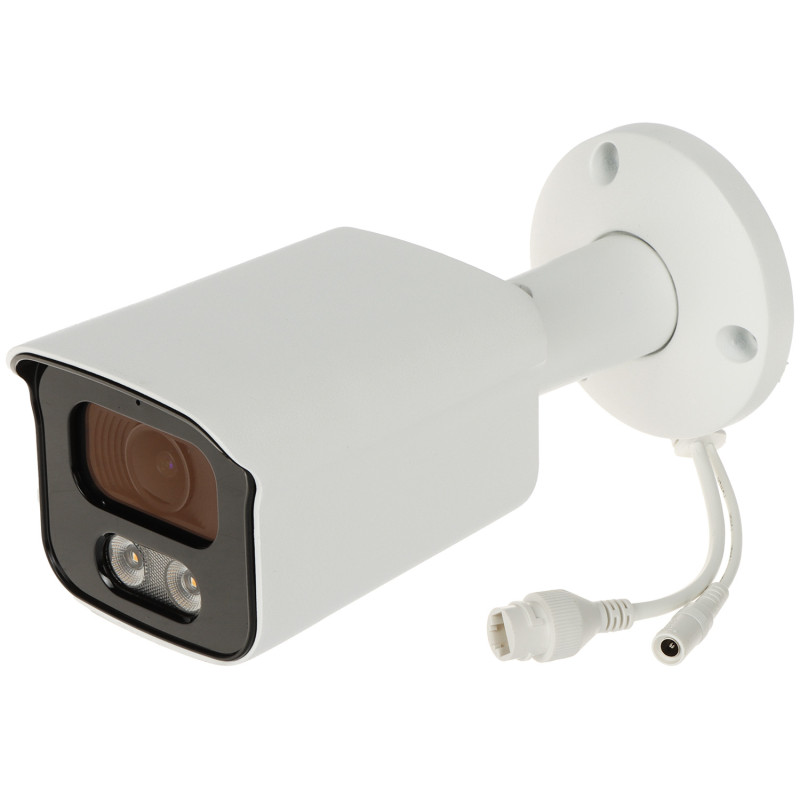

Full-Color IP Camera 4 Mpx 2.8 mm White LED Illuminator IP67

Model: APTI APTI-AI402C3ISP-28W

EAN: 6931240087039 SKU: 931087037

• 4 Mpx resolution (2688 x 1512) ensures high image detail
• Full-Color technology - color image around the clock thanks to LED illuminator
• 1/2.8 inch SONY Starvis Back-illuminated CMOS sensor
• Wide 106-degree viewing angle with 2.8 mm lens
• Advanced intelligent IVS image analysis (people, vehicles, faces)
• WDR 140 dB - excellent visibility in difficult lighting conditions
• Built-in microphone and support for Micro SD cards up to 1 TB
• IP67 metal housing resistant to outdoor conditions
• Power supply via PoE (802.3af) or 12V DC
• ONVIF compliance and NDAA certification

Description

The modern APTI-AI402C3ISP-28W IP camera is an advanced video surveillance solution that redefines safety standards thanks to Full-Color technology. Equipped with an efficient 1/2.8-inch SONY Starvis Back-illuminated CMOS sensor, the camera generates a crystal-clear image with a resolution of 4 megapixels (2688 x 1512), which allows for the observation of the finest details. The biggest advantage of the Full-Color series is the lack of a traditional black and white mode; the device uses a white light illuminator with a range of up to 25 meters to provide a vivid, color image around the clock, even in total darkness.

Specification

A key element of the system is intelligent video analysis (IVS), which includes classification of people and vehicles, intrusion detection, line crossing, and face detection. Thanks to these features, the monitoring system becomes proactive, minimizing the number of false alarms. Additionally, the camera offers a wide dynamic range (WDR) of 140 dB, which allows for correct exposure of high-contrast scenes, e.g., at building entrances facing light. Power can be supplied classically via 12V DC or conveniently via computer twisted pair cable in the PoE (802.3af) standard, which simplifies the installation process.

The device supports modern H.265+ and H.264+ compression standards, which significantly reduces network load and hard drive storage requirements while maintaining the highest recording quality. The camera has a built-in microphone, allowing audio recording without the need to install additional audio modules. The solid metal housing with an IP67 protection rating guarantees reliable operation in difficult weather conditions, protecting the electronics from dust and heavy rainfall.

Standard and Resolution

Standard: IP; Resolution: 2688 x 1512 - 4 Mpx, 2560 x 1440 - 3.7 Mpx, 1920 x 1080 - 1080p, 1280 x 720 - 720p

Sensor and Lens

Sensor: 1/2.8 " SONY Starvis™ Back-illuminated CMOS; Lens: 2.8 mm @ F1.0; Viewing angle: 106 °

Night Lighting

White light illuminator (LED) range: 25 m; Night mode: Full Color (color image 24/7)

Compression and Streams

Compression method: H.265+ / H.265 / H.264+ / H.264 / MJPEG / AVI / JPEG; Main stream transmission speed: 25 fps @ 4 Mpx

Audio and Memory

Audio: Built-in microphone, network audio transmission (AAC); Memory card slot: Support for Micro SD cards up to 1TB; Built-in memory: 4 GB EMMC (local recording of photos and videos)

Intelligent Video Analysis (IVS)

Intrusion (classification of people and vehicles), line crossing (classification of people and vehicles), loitering detection (human silhouette), crowd detection, motion detection based on human detection, face detection

Advanced Image Functions

WDR - 140 dB (Wide Dynamic Range), 3D-DNR (Digital Noise Reduction), F-DNR (Defog), ROI (Region of Interest image quality improvement), BLC/HLC (Backlight Compensation), Sharpness, Mirror, AGC, Auto White Balance, Corridor mode, Lens distortion correction

Network and Protocols

Interface: 10/100 Base-T (RJ-45); ONVIF: 19.12; WEB Server: Built-in; Max. number of on-line users: 10; Default IP address: 192.168.1.168; Default login/password: admin / 123456

Software and Management

The device offers comprehensive management and viewing software. For mobile devices, a dedicated free application BitVision is available (on Google Play and App Store), which allows remote access to live video, playback of recordings from the cloud or SD card, and full configuration of camera parameters via the P2P protocol. For professional users, the iVMS320 program for Windows systems has been prepared, which enables centralization of multiple camera points, advanced event log searching, and creation of complex alarm scenarios. Web Server version 6.0 allows full device management from a browser level without plugins.

Power Supply and Consumption

Power supply: PoE (802.3af), 12 V DC / 310 mA; Power consumption: ≤ 3.7 W

Physical Parameters

Housing: Compact - Metal; Color: White; Weight: 0.53 kg; Dimensions: 175 x 73 x 73 mm

Environment and Resistance

Operating temperature: -20 °C ... 60 °C; Protection rating: IP67; Video tampering detection: Yes

Access and Ports

WWW/App/ONVIF access ports: 80; RTSP URL: rtsp://user:password@ip_address:80/0 (main stream); Privacy zones: max. 3

Certificates and Languages

Supported languages: Polish, English, French, Hebrew, Spanish, Portuguese, Russian, Ukrainian, Hungarian, Italian; NDAA Certificate: Yes; Warranty: 2 years

Dimensions, Weight

Product dimensions: 175 x 73 x 73 mm (Depth x Width x Height)

Package dimensions: 200 x 100 x 100 mm (Depth x Width x Height)

Product weight: 530 g

Weight with package: 652 g
