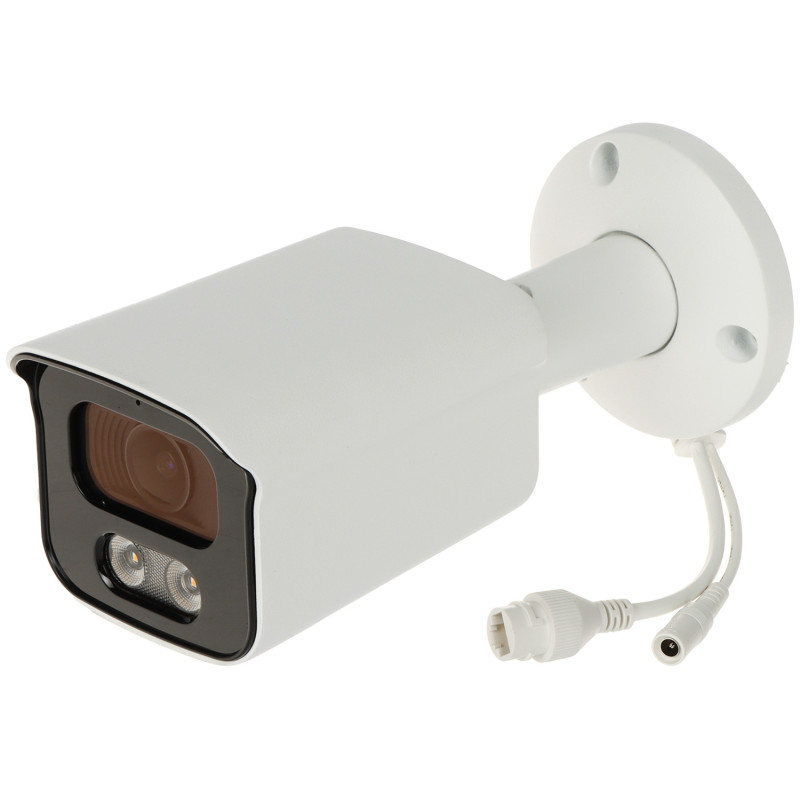

Full-Color IP Camera 4 MP 2.8 mm white light illuminator IP67

Model: APTI APTI-AI402C3ISP-28W

EAN: 6931240087039 SKU: 931087037

• 4 MP resolution (2688 x 1512) for high image detail
• Full-Color technology - color image around the clock thanks to the LED illuminator
• 1/2.8 inch SONY Starvis Back-illuminated CMOS sensor
• Wide 106-degree viewing angle with 2.8 mm lens
• Advanced Intelligent Video Analytics (IVS) (people, vehicles, faces)
• WDR 140 dB - excellent visibility in difficult lighting conditions
• Built-in microphone and support for Micro SD cards up to 1 TB
• IP67 metal housing resistant to outdoor conditions
• Power supply via PoE (802.3af) or 12V DC
• ONVIF standard compliance and NDAA certification

Description

The modern APTI-AI402C3ISP-28W IP camera is an advanced video surveillance solution that redefines security standards through Full-Color technology. Equipped with an efficient 1/2.8 inch SONY Starvis Back-illuminated CMOS sensor, the camera generates a crystal-clear 4-megapixel (2688 x 1512) image, allowing you to see the finest details. The biggest advantage of the Full-Color series is the absence of a traditional black-and-white mode; the device uses a white light illuminator with a range of up to 25 meters to provide a vivid, color image around the clock, even in total darkness.

Specification

A key element of the system is the intelligent video analysis (IVS), which includes classification of people and vehicles, intrusion detection, line crossing, and face detection. Thanks to these features, the monitoring system becomes proactive, minimizing false alarms. Additionally, the camera offers a wide dynamic range of 140 dB WDR, which allows for proper exposure of high-contrast scenes, e.g., at building entrances facing backlight. Power can be supplied classically via 12V DC or conveniently via a twisted-pair cable using the PoE (802.3af) standard, simplifying the installation process.

The device supports modern H.265+ and H.264+ compression standards, which significantly reduces network load and hard drive space requirements while maintaining the highest recording quality. The camera has a built-in microphone, enabling audio recording without the need for additional audio modules. The solid, metal IP67-rated housing ensures reliable operation in harsh weather conditions, protecting the electronics from dust and heavy rain.

Standard and Resolution

Standard: IP; Resolution: 2688 x 1512 - 4 MP, 2560 x 1440 - 3.7 MP, 1920 x 1080 - 1080p, 1280 x 720 - 720p

Sensor and Lens

Sensor: 1/2.8 " SONY Starvis™ Back-illuminated CMOS; Lens: 2.8 mm @ F1.0; Viewing angle: 106 °

Night Lighting

White light illuminator range (LED): 25 m; Night mode: Full Color (color image 24/7)

Compression and Streams

Compression method: H.265+ / H.265 / H.264+ / H.264 / MJPEG / AVI / JPEG; Main stream transmission rate: 25 fps @ 4 MP

Audio and Memory

Audio: Built-in microphone, audio transmission over network (AAC); Memory card slot: Micro SD card support up to 1TB; Built-in memory: 4 GB EMMC (local recording of photos and videos)

Intelligent Video Analytics (IVS)

Intrusion (people and vehicle classification), line crossing (people and vehicle classification), loitering detection (human silhouette), crowd detection, motion detection based on human detection, face detection

Advanced Image Functions

WDR - 140 dB (Wide Dynamic Range), 3D-DNR (Digital Noise Reduction), F-DNR (Defog), ROI (Region of Interest image quality improvement), BLC/HLC (Backlight/Highlight Compensation), Sharpness, Mirror, AGC, Auto white balance, Corridor mode, Lens distortion correction

Network and Protocols

Interface: 10/100 Base-T (RJ-45); ONVIF: 19.12; WEB Server: Built-in; Max. number of on-line users: 10; Default IP address: 192.168.1.168; Default login/password: admin / 123456

Software and Management

The device offers comprehensive management and viewing software. For mobile devices, there is a dedicated free BitVision application (available on Google Play and the App Store), which allows remote access to live video, playback of recordings from the cloud or SD card, and full configuration of camera parameters via the P2P protocol. For professional users, the iVMS320 program for Windows has been prepared, which enables the centralization of multiple camera points, advanced event log search, and the creation of complex alarm scenarios. The Web Server version 6.0 allows for full management of the device from a browser without plugins.

Power Supply and Power Consumption

Power supply: PoE (802.3af), 12 V DC / 310 mA; Power consumption: ≤ 3.7 W

Physical Parameters

Housing: Compact - Metal; Color: White; Weight: 0.53 kg; Dimensions: 175 x 73 x 73 mm

Environment and Resistance

Operating temperature: -20 °C ... 60 °C; Ingress protection: IP67; Video tampering detection: Yes

Access and Ports

Web/App/ONVIF access ports: 80; RTSP URL: rtsp://user:password@ip_address:80/0 (main stream); Privacy zones: max. 3

Certificates and Languages

Supported languages: Polish, English, French, Hebrew, Spanish, Portuguese, Russian, Ukrainian, Hungarian, Italian; NDAA Certificate: Yes; Warranty: 2 years

Dimensions, Weight

Product dimensions: 175 x 73 x 73 mm (D x W x H)

Package dimensions: 200 x 100 x 100 mm (D x W x H)

Product weight: 530 g

Package weight: 652 g

Zum Download

• CE Declaration
• SAFETY COMPLIANCE
