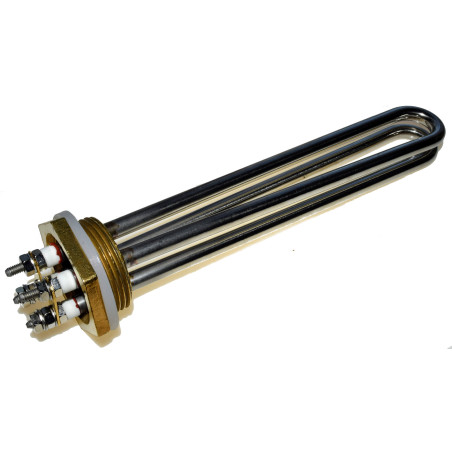

Heating Element 48V 1500W 1.5kW 2x 750W Photovoltaic Panel Solar Wind Turbine 5/4 1 1/4 Flange

Model: ACTii AC4054

EAN: 6931240040546 SKU: 405436312

• Brass flange
• Solid construction.
• Two independent coils
• Gasket included

Description

Heating element for domestic hot water tanks.

Heating element with an operating voltage of 48V and power of 2x 750W (1500W)

Heating element designed to work with wind turbines and photovoltaic panels.

The heating element has two independent coils in one flange.

The heating element can operate on AC or DC voltage.

Specification

Parameters

For boilers and heat exchangers 50-200l

Parameters :

Power : 1500W ( 2x 750W )

Length of heating element from flange: 210 mm

Mounting: 5/4" (1 1/4" BRASS) brass flange with insulated heating assembly

Heating element material: SUS304

Heating element diameter: 8mm

Total length: 240mm

Set contents

Heating element

Gasket

Dimensions, Weight

Product dimensions: 50 x 50 x 240 mm (D x W x H)

Package dimensions: 250 x 100 x 60 mm (D x W x H)

Product weight: 410 g

Weight with packaging: 250 g
