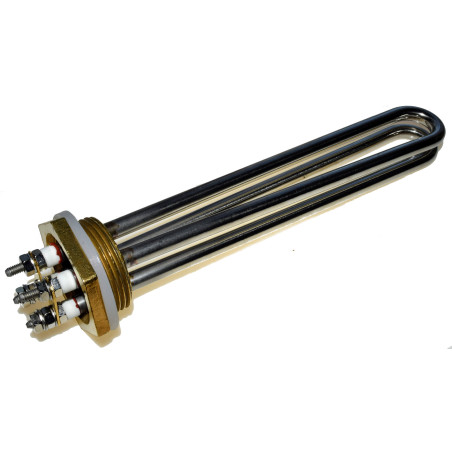

Heating Element 48V 1500W 1.5kW 2x 750W Photovoltaic Solar Panel Wind Turbine 5/4 1 1/4 Flange

Model: ACTii AC4054

EAN: 6931240040546 SKU: 405436312

• Brass flange
• Solid construction.
• Two independent coils
• Gasket included

Description

Heating element for domestic hot water tanks.

Heating element with 48V operating voltage power 2x 750W (1500W)

Heating element designed for use with wind turbines and photovoltaic panels.

Heating element has two independent coils in one flange.

Heating element can operate on AC or DC voltage.

Specification

Parameters

For boilers and heat exchangers 50-200l

Parameters :

Power : 1500W ( 2x 750W )

Heating element length from flange: 210 mm

Mounting : 5/4" (1 1/4" BRASS) brass flange with insulated heating set

Heating element material: SUS304

Heating element diameter: 8mm

Total length: 240mm

Set contents

Heating element

Gasket

Dimensions, Weight

Product dimensions: 50 x 50 x 240 mm (Depth x Width x Height)

Packaging dimensions: 250 x 100 x 60 mm (Depth x Width x Height)

Product weight: 410 g

Weight with packaging: 250 g
