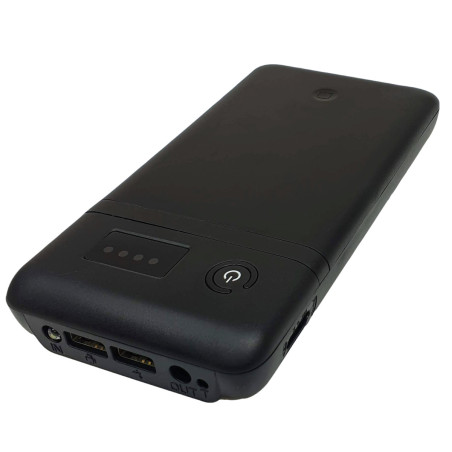

Spare Battery 3.6V 5V 6V 9V 12V 5500mAh Li-Ion UPS for IP Cameras Routers Modems Recorders USB PowerBank

Model: ACTii AC6367

EAN: 6931240063675 SKU: 636756364

• 12V Li-Ion 5500mAh battery. Li-Ion batteries are characterized by the longest lifespan and a charging efficiency of up to 97%
• Output voltage: 12V, 9V, 6V, 3.6V and 2x USB with 5V voltage
• Battery with a BMS electronic circuit controlling optimal charging, protecting against overcharging and excessive discharging. The BMS electronic circuit will allow the batteries to maintain optimal capacity for many years / many charging cycles.
• Possibility of continuous connection of the battery to the charger and the powered device to the battery
• Li-Ion cells: type: 18650, quantity: 6 pcs.
• We guarantee the use of top-class branded Li-Ion batteries from companies: Panasonic, LG, SONY or Samsung

Description

The high-quality 12V Li-Ion battery can be used as a UPS backup battery in case of power failure for industrial IP, AHD, TVI, DVI, CVBS cameras and other equipment powered by 12V, 9V, 6V, 3.6V (e.g. WIFI routers, DVR NVR recorders, various types of controllers, Modems, Image recorders, Cameras, Photo cameras).

Specification

The battery is charged with a standard Smartphone charger (with micro USB output), which can be permanently connected to the battery. A camera or other equipment can be connected to the battery permanently, which eliminates the need to power the camera from another source and makes the emergency power supply work as if the camera had a built-in battery. Cutting off the mains power will not cause an interruption in the device's operation.

The battery has a built-in electronic circuit that controls optimal charging and prevents battery overcharging.

Used Li-Ion cells: type: 18650, quantity: 6 pcs. Brand: Panasonic, LG, SONY or Samsung (We guarantee the use of top-class branded batteries)

The battery has one output with 12V, 9V, 6V, 3.6V voltage, which provides voltage all the time (regardless of whether the device is turned on with the button) and two USB outputs with 5V voltage. To have voltage on the USB outputs, you need to turn on the battery with the button.

The battery also has a built-in flashlight and LEDs showing the battery charge level.

Estimated continuous operation of the powered device on the battery: 28 hours (for an IP camera).

Nominal voltage and maximum operating current:

Output: 2.1mm/5.5mm socket

9V, 1.1A

12V, 600mA

Dimensions, Weight

Product dimensions: 25 x 70 x 200 mm (Depth x Width x Height)

Package dimensions: 220 x 80 x 50 mm (Depth x Width x Height)

Product weight: 330 g

Weight with packaging: 350 g
