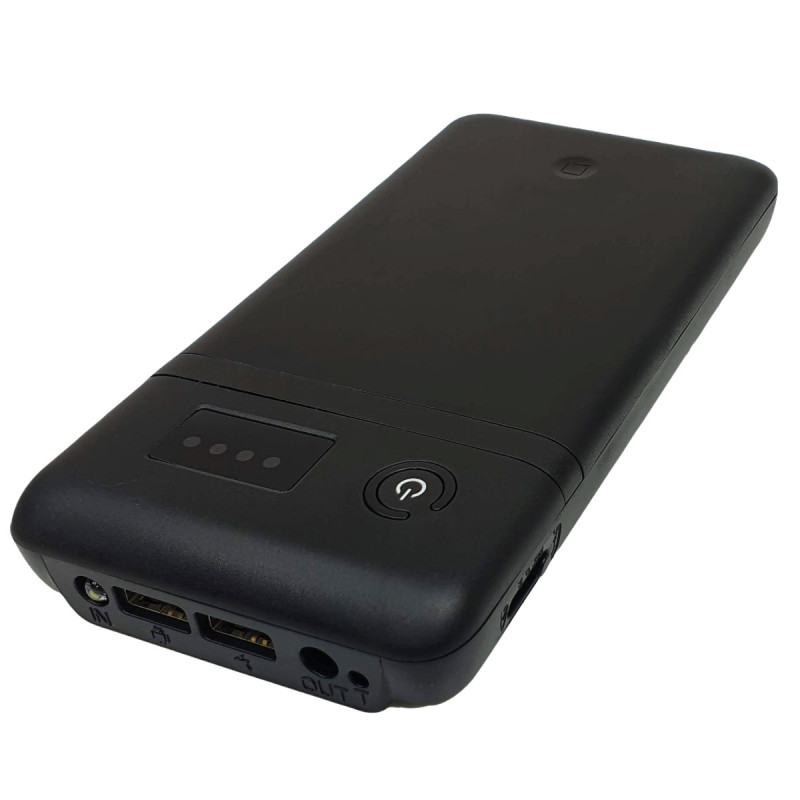

Backup Battery 3.6V 5V 6V 9V 12V 5500mAh Li-Ion UPS for IP Cameras Routers Modems Recorders USB PowerBank

Model: ACTii AC6367

EAN: 6931240063675 SKU: 636756364

• 12V Li-Ion battery 5500mAh. Li-Ion batteries are characterized by the longest lifespan and a charging efficiency of up to 97%
• Output voltage: 12V, 9V, 6V, 3.6V and 2x USB with 5V voltage
• Battery with BMS electronic circuit controlling optimal charging, protecting against overcharging and excessive discharging. The BMS electronic circuit allows the batteries to maintain optimal capacity for many years / many charging cycles.
• Possibility of continuous connection of the battery to the charger and the powered device to the battery
• Li-Ion cells: type: 18650, quantity: 6 pcs.
• We guarantee the use of top-class branded Li-Ion batteries: Panasonic, LG, SONY or Samsung

Description

A high-quality 12V Li-Ion battery can be used as a UPS backup battery in case of power failure for industrial IP, AHD, TVI, DVI, CVBS cameras and other equipment powered by 12V, 9V, 6V, 3.6V (e.g., WIFI routers, DVR NVR recorders, various types of controllers, modems, image recorders, cameras).

The battery has a built-in electronic circuit that controls optimal charging and prevents battery overcharging.

The battery is charged with a standard smartphone charger (with micro USB output), which can be permanently connected to the battery. A camera or other equipment can be connected to the battery permanently, which eliminates the need to power the camera from another source and makes the backup power supply work as if the camera had a built-in battery. A mains power cut will not cause an interruption in the device's operation.

The battery has one output with 12V, 9V, 6V, 3.6V voltage, which provides voltage constantly (regardless of whether the device is turned on by the button) and two USB outputs with 5V voltage. To have voltage on the USB outputs, the battery must be turned on with the button.

Li-Ion cells used: type: 18650, quantity: 6 pcs. Brand: Panasonic, LG, SONY or Samsung (We guarantee the use of top-class branded batteries)

Estimated continuous operation of the powered device on the battery: 28 hours (for an IP camera).

The battery also has a built-in flashlight and LEDs showing the battery charge level.

Specification

Parameters

Output: 2.1mm/5.5mm socket

Rated voltage and maximum operating current:

12V, 600mA

9V, 1.1A

6V, 1.8A

3.6V, 2.5A

Changing the output voltage with the switch on the side of the battery

Output: 2x USB

Rated voltage and maximum operating current: 5V, 2A

Input voltage (charging): 5V Micro USB port 1 - 2.1A

Battery capacity for voltage: 12V - 5500mAh (5.5Ah), for 3.6V - 16500mAh (16.5Ah)

Li-Ion cells: YES, type: 18650, quantity: 6 pcs. Model: Panasonic, LG, SONY or Samsung

Protection: overload, excessive discharge, overload, short-circuit protection function.

Operating temperature: -20 - +60

Operating humidity: >90%

Connectors

1x Output: 2.1mm/5.5mm socket

2x USB output

1x Micro USB input

Battery charging requirements

Charging voltage: 12.6V DC

Charging current: 1-2A

Set contents

Battery

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 25 x 70 x 200 mm (D x W x H)

Packaging dimensions: 220 x 80 x 50 mm (D x W x H)

Product weight: 330 g

Weight with packaging: 350 g

Zum Download

• User Manual
• CE Declaration
• SAFETY COMPLIANCE
