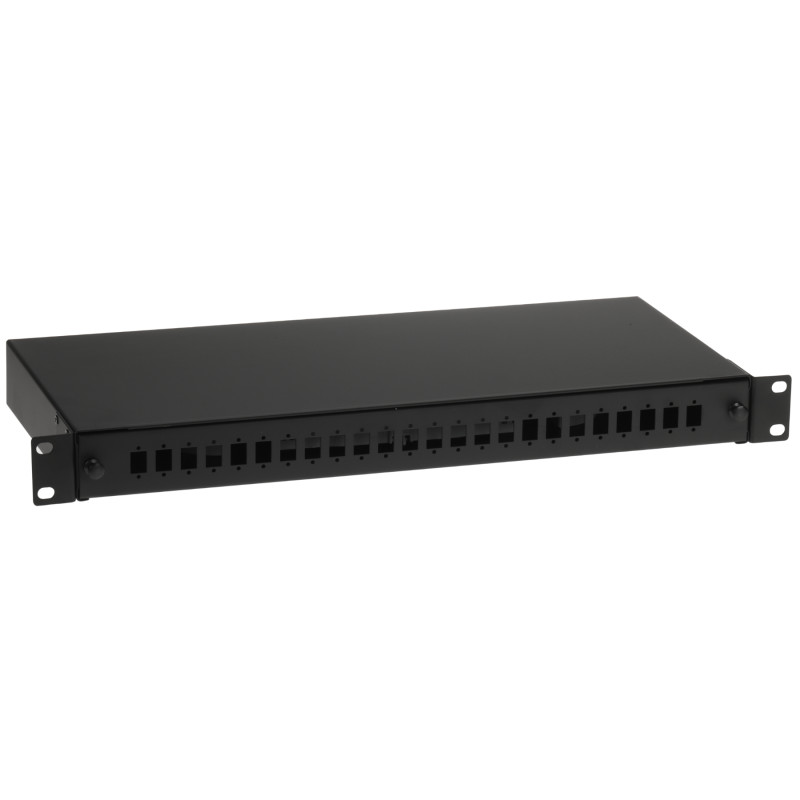

1U 19 inch Fiber Optic Patch Panel 24 Port SC Simplex LC Duplex Sliding Drawer Black Delta Fiber PPO-1U/24
zł138.99
Tax included
The PPO-1U/24 fiber optic patch panel is a professional solution designed for managing fiber optics in 19-inch Rack cabinets. The device features a 1U height, allowing for optimal use of mounting space in server and telecommunications cabinets. The main advantage of the product is the sliding drawer on rails, which significantly facilitates access to the interior of the housing during installation, fiber splicing, and subsequent system maintenance without the need to dismantle the entire device.
The construction is made of high-quality powder-coated steel in black, ensuring durability and an aesthetic appearance. The patch panel has 24 holes adapted for mounting SC Simplex or LC Duplex adapters. An important technical note is that the adapters are mounted using factory snap-in clips – standard SM-AD*P100 screws are not compatible with the housing. Inside the enclosure, there is dedicated space for organizing up to 24 fiber optic splices, making it a complete interface point between the backbone network and active equipment.
At the rear of the housing, there are 4 cable glands, allowing for the safe entry of fiber optic cables of various diameters. Thanks to its solid construction and thoughtful ergonomics, the PPO-1U/24 is a reliable element of any modern telecommunications installation, ensuring order and mechanical protection for delicate optical connections.
Product advantages:
- 19-inch Rack mounting standard with 1U height.
- Convenient sliding drawer for easy installation and service.
- Supports up to 24 SC Simplex or LC Duplex connections.
- Solid powder-coated steel construction in black.
- Integrated space for 24 fiber optic splices.
- Four cable glands for cabling flexibility.
- Aesthetic finish and high mechanical resistance to damage.
1U 19 inch Fiber Optic Patch Panel 24 Port SC Simplex LC Duplex Sliding Drawer Black
Model: Delta Fiber PPO-1U/24
EAN: 6931240045312 SKU: 931045315
- Mounting standard: 1U Rack 19"
- Sliding drawer for easy access to splices
- Supports 24 SC simplex or 24 LC duplex ports
- Solid black metal housing
- 4 cable glands at the rear
- Space for 24 fiber optic splices
- Snap-in adapter mounting (does not support SM-AD*P100 screws)
Description
The PPO-1U/24 fiber optic patch panel is a professional solution designed for managing fiber optics in 19-inch Rack cabinets. The device features a 1U height, allowing for optimal use of mounting space in server and telecommunications cabinets. The main advantage of the product is the sliding drawer on rails, which significantly facilitates access to the interior of the housing during installation, fiber splicing, and subsequent system maintenance without the need to dismantle the entire device.
The construction is made of high-quality powder-coated steel in black, ensuring durability and an aesthetic appearance. The patch panel has 24 holes adapted for mounting SC Simplex or LC Duplex adapters. An important technical note is that the adapters are mounted using factory snap-in clips – standard SM-AD*P100 screws are not compatible with the housing. Inside the enclosure, there is dedicated space for organizing up to 24 fiber optic splices, making it a complete interface point between the backbone network and active equipment.
At the rear of the housing, there are 4 cable glands, allowing for the safe entry of fiber optic cables of various diameters. Thanks to its solid construction and thoughtful ergonomics, the PPO-1U/24 is a reliable element of any modern telecommunications installation, ensuring order and mechanical protection for delicate optical connections.
Product advantages:
- 19-inch Rack mounting standard with 1U height.
- Convenient sliding drawer for easy installation and service.
- Supports up to 24 SC Simplex or LC Duplex connections.
- Solid powder-coated steel construction in black.
- Integrated space for 24 fiber optic splices.
- Four cable glands for cabling flexibility.
- Aesthetic finish and high mechanical resistance to damage.
Specification
Mounting standard
19-inch Rack - universal standard for server and telecommunications cabinets
Working height
1U (44.45 mm) - occupies minimal vertical space in the cabinet
Device type
Fiber optic patch panel (Spleißbox) with sliding drawer
Material
Cold-rolled steel, powder-coated, corrosion-resistant
Color
Black (RAL 9005) - matte finish
Access mechanism
Sliding drawer on metal rails providing full access to the interior
Front panel
Integrated into the housing, equipped with 24 precision adapter holes
Adapter capacity
24 pieces - allows for termination of up to 48 fibers using LC Duplex connectors
Connector compatibility
SC Simplex / LC Duplex - most popular optical connection standards
Adapter mounting method
Factory snap-in only; note: not compatible with SM-AD*P100 screws
Hole dimensions
10 mm x 13 mm - standard dimension for SC/LC adapters
Splice management
Built-in holders and space for 24 heat-shrink splice protectors
Cable glands
4 rubber glands located at the rear of the housing for safe cable entry
Depth range
Adjustable from 223 mm to 405 mm depending on the drawer extension
Warranty
24 months (2 years) provided by the manufacturer
Contents
1x PPO-1U/24 Fiber optic patch panel
1x Set of mounting accessories for Rack cabinet
Dimensions, Weight
Product dimensions: 405 x 481 x 46 mm (Depth x Width x Height)
Package dimensions: 235 x 550 x 55 mm (Depth x Width x Height)
Product weight: 1770 g
Weight with packaging: 1966 g
