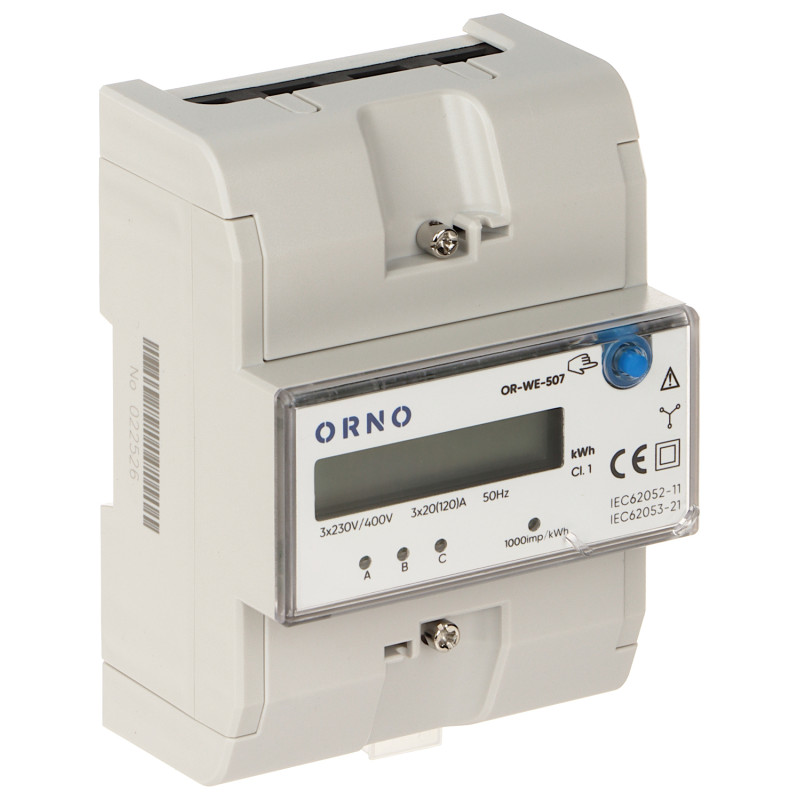

Three Phase Electric Energy Meter 120A DIN Rail LCD kWh Submeter ORNO OR-WE-507
zł384.45
Tax included
The OR-WE-507 three-phase electric energy meter is an advanced measuring device designed for precise monitoring of energy consumption in three-phase networks. It is an ideal solution for both residential and industrial applications where reliability and high measurement accuracy in Class I are required. The device features a wide current range, supporting a base current of 20A and a maximum current of up to 120A, which allows it to work with high-power loads.The main advantage of the meter is its clear LCD display, which presents data in a 6+1 digit format, enabling accurate reading of consumption with a resolution of up to 0.1 kWh. Thanks to mounting on a standard DIN rail TS-35, installation of the device in electrical distribution boards is quick and hassle-free. The compact housing with a width of 5 modules allows for optimal space management in the control cabinet.The OR-WE-507 meter is equipped with a pulse output, which enables integration with remote reading and energy monitoring systems. Additionally, a built-in LED indicates power consumption and the correct operation of the device, which facilitates ongoing diagnostics. The solid construction made of high-quality plastic ensures longevity, and the IP20 protection rating guarantees safety of use indoors. The device operates stably in a wide temperature range from -20°C to 55°C, making it resistant to variable environmental conditions inside buildings. By choosing this model, you gain the certainty of reliable energy billing and the possibility of full control over the operating costs of the electrical installation.
Three Phase Electric Energy Meter 120A DIN Rail LCD kWh Submeter
Model: ORNO OR-WE-507
EAN: 6931240059005 SKU: 931059008
- Precise measurement of electrical energy in three-phase networks
- High current capacity up to 120A (maximum current)
- Clear LCD display with backlight (6+1 digits)
- Mounting on standard DIN rail TS-35 (5 modules wide)
- Integrated pulse output for remote reading systems
- LED signaling for power consumption and operating status
- High measurement accuracy class (Class I)
- Robust plastic housing with IP20 protection rating
- Wide operating temperature range from -20°C to +55°C
- Easy connection via screw terminals up to 16 mm²
Description
The OR-WE-507 three-phase electric energy meter is an advanced measuring device designed for precise monitoring of energy consumption in three-phase networks. It is an ideal solution for both residential and industrial applications where reliability and high measurement accuracy in Class I are required. The device features a wide current range, supporting a base current of 20A and a maximum current of up to 120A, which allows it to work with high-power loads.
The main advantage of the meter is its clear LCD display, which presents data in a 6+1 digit format, enabling accurate reading of consumption with a resolution of up to 0.1 kWh. Thanks to mounting on a standard DIN rail TS-35, installation of the device in electrical distribution boards is quick and hassle-free. The compact housing with a width of 5 modules allows for optimal space management in the control cabinet.The OR-WE-507 meter is equipped with a pulse output, which enables integration with remote reading and energy monitoring systems. Additionally, a built-in LED indicates power consumption and the correct operation of the device, which facilitates ongoing diagnostics. The solid construction made of high-quality plastic ensures longevity, and the IP20 protection rating guarantees safety of use indoors. The device operates stably in a wide temperature range from -20°C to 55°C, making it resistant to variable environmental conditions inside buildings. By choosing this model, you gain the certainty of reliable energy billing and the possibility of full control over the operating costs of the electrical installation.Specification
Device type
Electric energy meter, Three-phase - designed for direct measurement of active power in a three-phase system.
Rated voltage
3 x 230 V / 400 V AC, 50 Hz - standard parameters for European power grids.
Operating current
Base current (nominal): 20 A; Maximum current: 120 A - ensures stable operation under heavy loads.
Accuracy class
Class I - guarantees a measurement error not exceeding 1%, which allows for precise interphase billing.
Data display
LCD 6+1 digits (000000.0 kWh) - allows for easy reading of total energy consumption with an accuracy of one decimal place.
Measurement unit
kWh (kilowatt-hour) - standard billing unit for electrical energy.
Pulse frequency
1000 imp/kWh - high pulse resolution for energy monitoring systems.
Pulse output
Yes - allows for the connection of a counting device or BMS system for remote consumption analysis.
Connector and terminal type
Screw terminals with a maximum cross-section of 16 mm² - ensure a secure and durable connection of power cables.
Operation signaling
LEDs - visual information about the presence of voltage on individual phases and pulse generation.
Housing and mounting
High-quality plastic; mounting on DIN rail TS-35 (standard mounting rail in distribution boards).
Protection rating
IP20 - protection against access to hazardous parts with a finger and against solid foreign objects with a diameter of 12.5 mm and larger.
Environmental conditions
Operating temperature: -20 °C ... 55 °C - allows for installation in unheated technical rooms.
Modular dimensions
Width: 5 modules (87.5 mm) - compact design saving space in the electrical cabinet.
Contents
1x Electric energy meter OR-WE-507
1x User manual in Polish and English
Dimensions, Weight
Product dimensions: 70 x 90 x 130 mm (D x W x H)
Package dimensions: 80 x 100 x 140 mm (D x W x H)
Product weight: 609 g
Weight with packaging: 697 g
