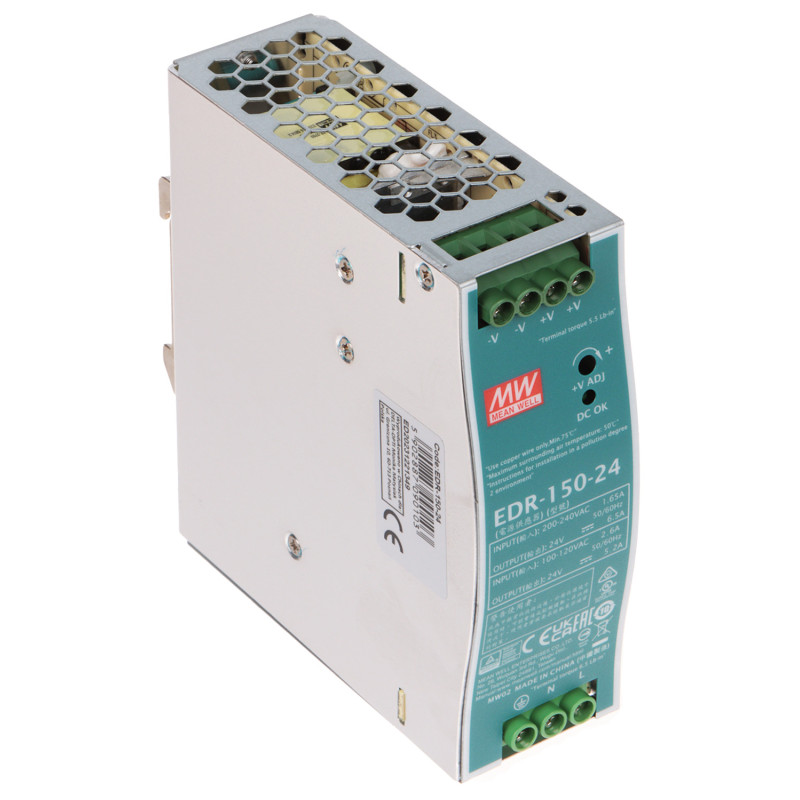

Industrial DIN rail switching power supply 24V DC 6.5A 156W TS35 mount high efficiency stabilization MEAN WELL EDR-150-24
zł165.55
Tax included
A switching power supply is a key component of industrial automation systems, and this model from the EDR series by a renowned manufacturer guarantees reliability and power stability under any conditions. The device is designed for professional mounting on a standard DIN rail TS35/7.5 or 15, making it an extremely versatile solution in control cabinets, electrical switchboards, and telecommunication systems. Thanks to its exceptionally narrow housing with a width of only 41 mm, the power supply allows for significant space savings on the mounting rail, which is crucial in densely packed automation systems and modern switchgear.The main advantage of this model is its high energy efficiency of 87%, which translates into minimal energy loss as heat and a significantly longer service life for electronic components. The device features a wide input voltage range, supporting both alternating current (AC) in the 90-264V range and direct current (DC) in the 127-370V range, allowing it to be used in various power grid standards worldwide without the need for additional transformers or converters. The robust metal housing and advanced convection cooling systems (fanless) allow for trouble-free operation in a wide temperature range from -20 to +60 degrees Celsius, which is important in demanding industrial environments.Operational safety is ensured by integrated protection systems, including short-circuit, overload, overvoltage, and thermal protection. Each of these systems has been precisely calibrated to protect not only the power supply itself but also the sensitive receiving devices connected to it from damage. The power supply is ideal for CCTV monitoring systems, alarm systems, LED lighting, access control systems, and broadly defined building and industrial automation. By choosing this product, you are investing in proven technology from a global leader in power supply, which guarantees the continuity of your systems for many years. The product meets rigorous safety and quality standards, as confirmed by numerous certificates and factory test reports included in the technical documentation.
Industrial DIN rail switching power supply 24V DC 6.5A 156W TS35 mount high efficiency stabilization
Model: MEAN WELL EDR-150-24
EAN: 6931240038031 SKU: 931038034
- High energy efficiency at 87%
- Universal mounting on DIN rail TS-35/7.5 or TS-35/15
- Wide AC and DC input voltage range
- Narrow housing (41 mm) saving space in the cabinet
- Cooling by free air convection
- Full protection package: SCP, OLP, OVP, OTP
- Wide operating temperature range from -20°C to +60°C
- Output voltage adjustment range 24-28V
- Robust metal housing resistant to industrial conditions
- Compliance with safety standards and CE certificate
Description
A switching power supply is a key component of industrial automation systems, and this model from the EDR series by a renowned manufacturer guarantees reliability and power stability under any conditions. The device is designed for professional mounting on a standard DIN rail TS35/7.5 or 15, making it an extremely versatile solution in control cabinets, electrical switchboards, and telecommunication systems. Thanks to its exceptionally narrow housing with a width of only 41 mm, the power supply allows for significant space savings on the mounting rail, which is crucial in densely packed automation systems and modern switchgear.
The main advantage of this model is its high energy efficiency of 87%, which translates into minimal energy loss as heat and a significantly longer service life for electronic components. The device features a wide input voltage range, supporting both alternating current (AC) in the 90-264V range and direct current (DC) in the 127-370V range, allowing it to be used in various power grid standards worldwide without the need for additional transformers or converters. The robust metal housing and advanced convection cooling systems (fanless) allow for trouble-free operation in a wide temperature range from -20 to +60 degrees Celsius, which is important in demanding industrial environments.Operational safety is ensured by integrated protection systems, including short-circuit, overload, overvoltage, and thermal protection. Each of these systems has been precisely calibrated to protect not only the power supply itself but also the sensitive receiving devices connected to it from damage. The power supply is ideal for CCTV monitoring systems, alarm systems, LED lighting, access control systems, and broadly defined building and industrial automation. By choosing this product, you are investing in proven technology from a global leader in power supply, which guarantees the continuity of your systems for many years. The product meets rigorous safety and quality standards, as confirmed by numerous certificates and factory test reports included in the technical documentation.Specification
Power supply type
Switching - advanced high-frequency technology ensuring stable output parameters with minimal energy loss and compact housing dimensions.
AC input voltage
90 V ... 264 V - wide input range allowing for stable device operation even with significant fluctuations in the power grid.
DC input voltage
127 V ... 370 V - possibility of DC power supply, which increases the versatility of applications in specialized industrial installations.
Output voltage
24 V DC - stabilized direct voltage with low ripple, ideal for sensitive automation and electronics systems.
Output voltage adjustment
24 V ... 28 V DC - built-in potentiometer allows for precise tuning of the output voltage to the requirements of a specific receiver or compensation for voltage drops on long cables.
Power supply current efficiency
6.5 A - high current efficiency allowing for powering extensive monitoring systems, lighting, or PLC controllers.
Power supply power
156 W - rated power of the device ensuring stable operation under full load in continuous mode.
Number of outputs
1 pc. - single output channel equipped with double screw terminals facilitating bridging and connecting multiple receivers.
Energy efficiency
87 % - high efficiency reducing heat generation, which translates into lower energy consumption and higher reliability of the entire system.
Housing type and mounting
DIN - metal housing adapted for quick and secure mounting on a standard TS-35/7.5 or TS-35/15 rail.
Short-circuit protection (SCP)
Yes - automatic protection system that immediately cuts off power when a short circuit is detected at the output, protecting the electronics from permanent damage.
Overload protection (OLP)
Yes - protection against current draw exceeding the rated capabilities of the power supply, preventing overheating of the transformer and transistor switches.
Overvoltage protection (OVP)
Yes - advanced protection of connected devices against sudden voltage spikes that could occur as a result of a grid failure.
Thermal protection (OTP)
Yes - intelligent temperature sensor that turns off the device after exceeding a safe thermal threshold, protecting components from degradation.
Operating temperature and humidity
Temperature range from -20 °C to 60 °C and relative humidity from 20 % to 95 % (non-condensing), which allows for operation in difficult conditions of production halls.
Software and control
The device is a switching power supply of a purely hardware nature and does not have built-in control software or a digital interface requiring a dedicated application. Its operation is based on advanced analog circuits and high-frequency converters that do not require any software configuration or firmware updates. Voltage stabilization and protection systems are implemented entirely in hardware, which ensures the highest reliability in industrial automation systems without the risk of software errors or operating system crashes.
Manufacturer warranty
2 years - full warranty protection confirming the high quality of workmanship and durability of the components used by the Mean Well brand.
Contents
1x EDR-150-24 switching power supply
1x Installation and operating manual
Dimensions, Weight
Product dimensions: 127 x 41 x 126 mm (D x W x H)
Package dimensions: 145 x 60 x 140 mm (D x W x H)
Product weight: 510 g
Weight with packaging: 574 g
