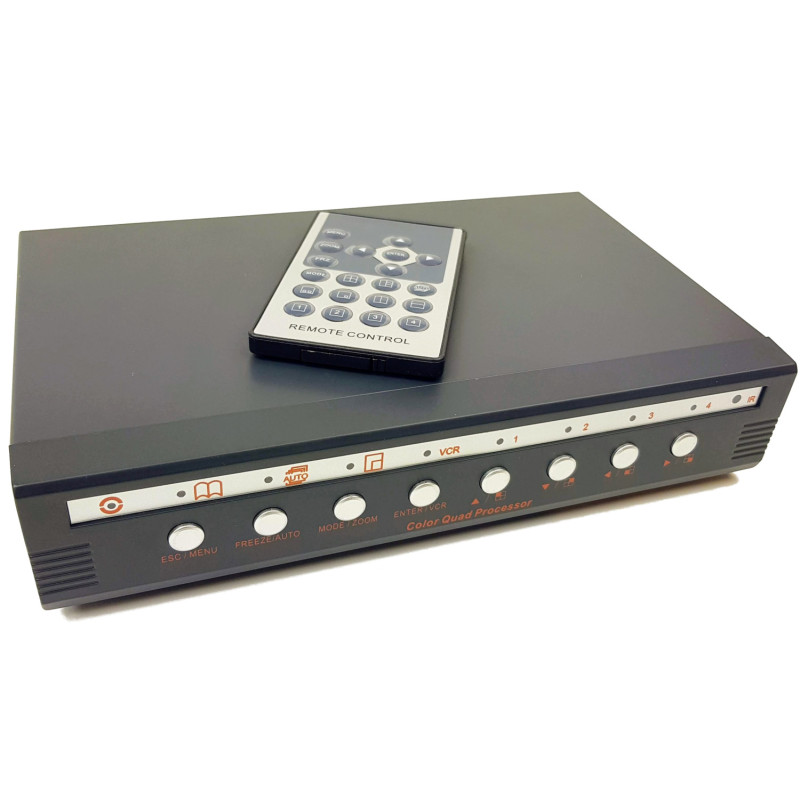

QUAD Image Splitter for 4 CCTV AHD TVI CVI CVBS HDMI 1080p VGA industrial cameras + remote control

Model: ACTii AC8247

EAN: 6931240082478 SKU: 824790557

• You can connect up to 4 cameras to the image splitter. The QUAD allows you to divide the TV or monitor screen into 4 parts. This allows you to watch images from 4 cameras simultaneously.
• Supports AHD, TVI, CVI digital cameras and CVBS analog cameras
• Output: 2x TV-OUT, VGA, HDMI at resolutions up to 1920x1080
• The included remote control allows you to manage all functions of the splitter. Control of functions is also possible using buttons on the image splitter.
• Operating mode: Screen division into four cameras and two cameras, full screen for one camera, PIP function, automatic camera switching.
• Image freeze function
• Zoom function
• Audible alarm in case of signal loss from the camera

Description

Up to 4 cameras can be connected to the image splitter. The QUAD allows you to divide the TV or monitor screen into 4 parts. This allows you to view images from 4 cameras at the same time.

Supports AHD, TVI, CVI digital cameras and CVBS analog cameras

Output: 2x TV-OUT, VGA, HDMI at resolutions up to 1920x1080

The included remote control allows you to manage all functions of the splitter

Function control is also possible via buttons on the image splitter.

Operating mode: Screen division into four cameras and two cameras, full screen for one camera, PIP function, automatic camera switching.

Image freeze function

Zoom function

Specification

Supported cameras

Digital cameras: AHD TVI CVI

Analog: CVBS

Splitter type

The image splitter is in color

4 cameras can be connected to the splitter simultaneously.

Splitter functions

ZOOM function - Allows you to enlarge the image from the cameras. In single-channel full-screen mode, you can zoom in on the image by pressing the zoom button. The enlarged image view is controlled by the remote control or buttons on the image splitter.

AUTO function: Displays images one by one from selected cameras for a specified duration. One of the switched views can be the 4-camera split view. The display duration for each camera is set individually.

PIP function: While watching an image from one camera, you can simultaneously view what is on another camera in a small window.

Screen freeze function (pause)

The included remote control improves control of the Quad.

Settings for brightness, color, contrast, and saturation.

Displayed image resolution

CVBS: PAL 720x576/NTSC:720x480

VGA / HDMI : 1024x768, 1280x1024, 1440x900, 720p, 1080p

Image refresh rate: 25fps

Video inputs

4x 1Vp-p, 75 Ohm, BNC

Video output

2x BNC/1x, 1Vp-p, 75 Ohm

1x VGA

1x HDMI

Power supply

Power supply: 12V DC/1000mA, 230V AC

Set contents

Image splitter. (QUAD)

Power adapter.

Packaging.

User manual in English.

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 128 x 210 x 40 mm (D x W x H)

Package dimensions: 140 x 240 x 60 mm (D x W x H)

Product weight: 650 g

Weight with packaging: 884 g
