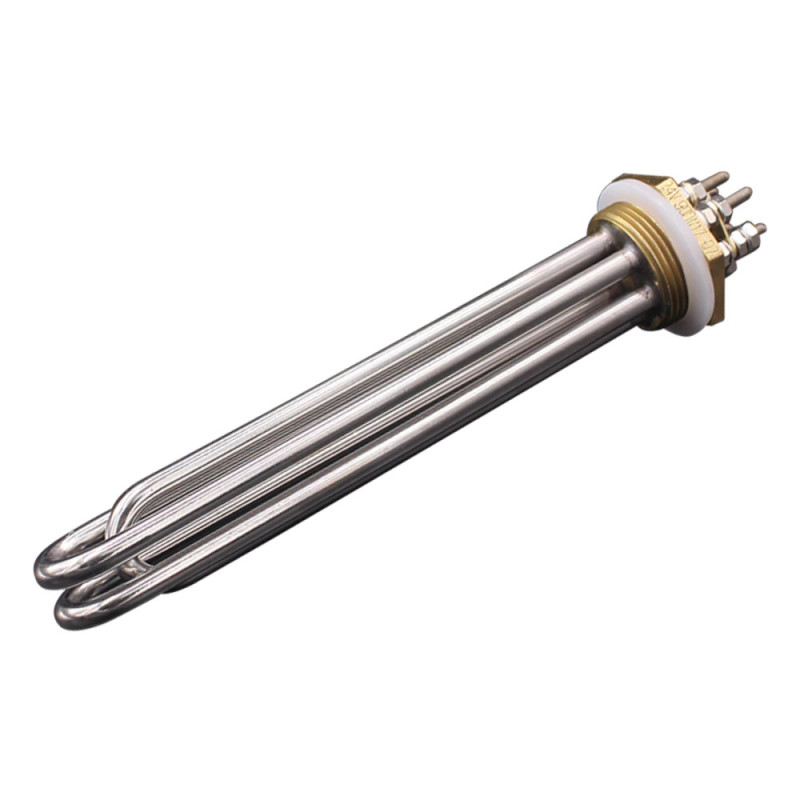

24V DC 900W Heating Element 3x 300W Photovoltaic Solar Panel Wind Turbine 5/4 1 1/4 Flange

Model: ACTii AC8462

EAN: 6931240084625 SKU: 846210870

• Brass flange
• Solid construction.
• Three independent heating coils
• Gasket included

Description

Heating element for domestic hot water tanks.

Heating element with 24V operating voltage and 3x 300W (900W) power.

Heating element designed for use with wind turbines and photovoltaic panels.

The heater has three independent coils in one flange. The coils can be bridged or connected independently.

The heater can operate on AC or DC voltage.

Specification

Application

For water heaters and heat exchangers 50-200l

Parameters

Voltage: 24V DC (direct current)

Power: 900W ( 3x 300W )

Length of heating element from flange: 210 mm

Mounting: 5/4" brass flange (1 1/4" BRASS) with insulated heating set

Heating element material: SUS304

Heating element diameter: 8mm

Total length: 240mm

Set contents

Heating element

Gasket

Dimensions, Weight

Product dimensions: 50 x 50 x 240 mm (D x W x H)

Packaging dimensions: 60 x 260 x 60 mm (D x W x H)

Product weight: 367 g

Weight with packaging: 401 g

Download

• User Manual
• CE Declaration
• SAFETY COMPLIANCE
