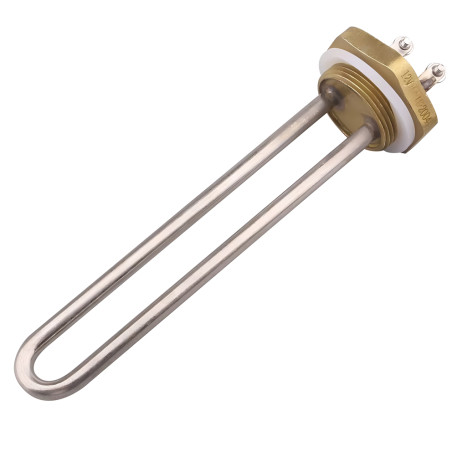

12V DC 300W Heating Element Photovoltaic Solar Panel Wind Turbine 5/4 1 1/4 Flange

Model: ACTii AC2426

EAN: 6931240024263 SKU: 242620123

• Brass flange
• Solid workmanship.
• Three independent spirals
• Gasket included

Description

Heating element for domestic hot water tanks.

Heating element with operating voltage 12V, power 1x 300W

Heating element designed for use with wind turbines and photovoltaic panels.

The heating element has three independent spirals in one flange. The spirals can be bridged or connected independently.

The heating element can operate on AC or DC voltage.

Specification

Application

For boilers and heat exchangers 50-200l

Parameters

Voltage: 12V DC (direct current)

Power: 300W ( 1x 300W )

Length of the heating element from the flange collar : 210 mm

Mounting : brass flange 5/4" (1 1/4" BRASS) with insulated heating kit

Heating element material: SUS304

Heating element diameter: 8mm

Total length: 240mm

Set contents

Heating element

Gasket

Dimensions, Weight

Product dimensions: 50 x 50 x 240 mm (D x W x H)

Packaging dimensions: 60 x 260 x 60 mm (D x W x H)

Product weight: 367 g

Weight with packaging: 401 g

Download

• User Manual
• CE Declaration
• SAFETY COMPLIANCE
