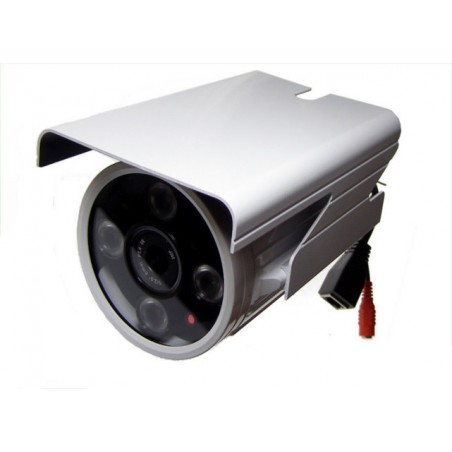

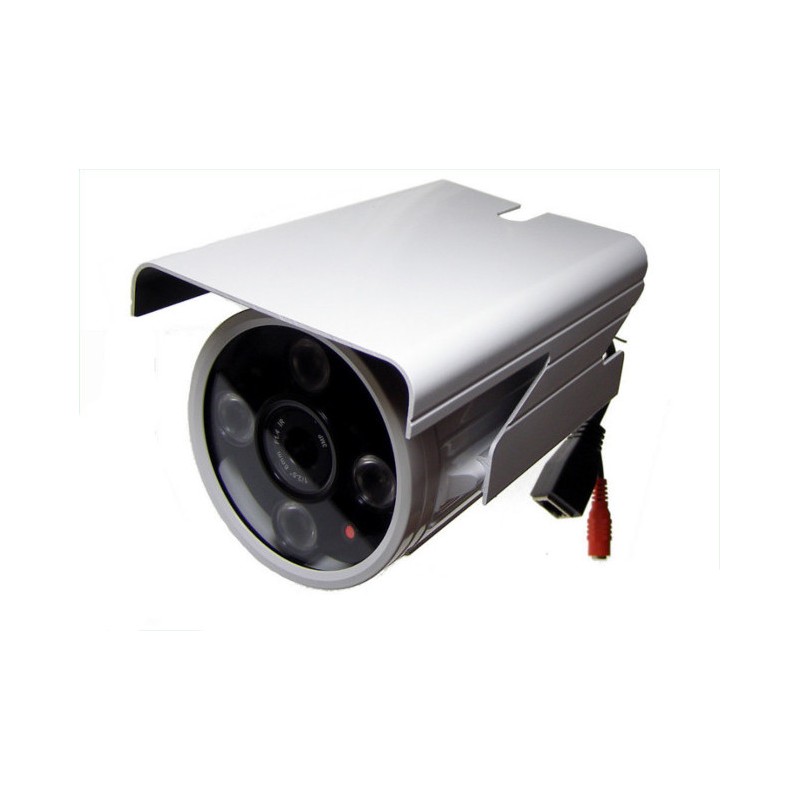

1.3 Megapixel 720P IP Camera Outdoor IR ARRAY 70m H.264 ONVIF CLOUD P2P

Model: ACTii AC9753

EAN: 6931240097533 SKU: 975348685

• IP camera based on the latest 1/3 CMOS 1.3M pixel 720P Ultra-low illumination progressive scan sensor with very high sensitivity of 0.05LUX, allowing the camera to see correctly in difficult lighting conditions
• H.264 encoding. Best compression in IP cameras. The image is compressed on the fly by the camera processor. Recordings take up several times less space when transmitted over the network. Computer software does not need to compress the image, which significantly reduces the computer processor load.
• The camera is also equipped with a mechanically removable infrared filter (ICR).
• Outdoor camera in a hermetic housing with illumination by four IR ARRAY diodes, illuminating an area of up to 70m
• The camera supports RTSP video streaming. It is also possible to place the camera image on any website. The camera supports the ONVIF standard (products with ONVIF certification can work with other products with ONVIF certification).
• Possibility to view the image from the camera on a mobile phone: Symbian, Windows mobile, Android, iPhone.
• The camera comes with an extensive professional program for recording and playing images from IP cameras.
• Cloud function and free DDNS service. After connecting the camera to the network, simply go to the website address (the address is on the sticker on the camera) and without any additional settings, you can view the image from the camera from anywhere via the Internet. No need to configure the router.

Description

Our opinion:

- Very extensive software in the camera and software included with the camera.

- Correct support for ONVIF, RTSP, RTS standards allows the use of these cameras in many external applications, for displaying images on websites ...

- Solid workmanship.

- Array diodes give much stronger light than standard IR diodes. The camera sees at a greater distance at night.

Specification


Real-time preview image resolution: 1280x720

Recording mode image resolution: 1280x720

Image compression: H.264,

Image refresh rate: 25fps (perfectly smooth image)

Image parameter correction: brightness, contrast, color, saturation.

Text overlay: Video channel number, date, data transfer speed information,

Camera sensor and processor

Sensor: 1/3 CMOS 1.3M pixel 720P Ultra-low illumination progressive scan

Camera processor: Hisilicon Hi3512

Camera system operating mode: Pentaplex (allows preview, recording, backup, playback at the same time by several users simultaneously)

IR diode illumination

YES

Number of IR diodes: 4x ARRAY

Illumination range - up to 70m

The range of IR diode illumination depends on the installation conditions of the camera and the width of the lens viewing angle.

Mechanically removable infrared filter (ICR)

Lens

AUTOIRIS lens: YES

Focal length: 6mm

Viewing angle: 53° range

Aperture: F1.4

Mount: CS

Focus adjustment: Yes, manual

ICR - Mechanically removable infrared filter. This filter significantly affects the quality of the image from the camera. The image from the camera without this filter during the day is blurry and color reproduction is incorrect (e.g., green is gray ...), at night the camera cannot use most of the IR diode light range.

Housing

Outdoor housing: IP66 tightness (dust-tight, resistant to strong water jets from all directions)

Material: Aluminum

Glass cover: Tempered double glass

Operating temp: -30°C - +55°C

Network functions

RJ45 10/100Mbit socket: YES; Allows wired connection of the camera to the network

Supported Internet protocols: RTSP, RTP, HTTP, TCP/IP, UDP, SMTP, PPPoE, DDNS, DNS, SNTP, DHCP, FTP, SNMP

ONVIF standard support: YES (products with ONVIF certification can work with other products with ONVIF certification)

Other parameters

Power supply: DC 12V 1000mA; Power consumption without IR diodes: 4W; Power consumption with IR diodes: 10W

Camera software

Real-time camera image preview via local network and Internet using the IE web browser.

Motion detection and alarm: Upon detection of motion, it is possible to send an email with photos, send photos or video images to an FTP server at any interval. Motion detection functions can operate during specific hours (according to a set weekly schedule)

Possibility to send photos and video images to an FTP server: This function allows you to place the view from the camera on any website and archive video recordings on any FTP server (it can be a network disk with FTP server function).

Access is divided into 2 groups: Administrator, User, User. Each group has appropriate permissions.

Software can be set for a dynamic IP address (Neostrada, Netia ... we can provide instructions for such a connection upon request).

Camera software in English

Camera control program

The camera comes with a program that allows preview, recording, and playback of images from IP cameras on a computer.

Support for any number of IP cameras simultaneously

Video compression: H.264

Real-time preview from IP cameras

Saving images from cameras to the computer hard drive (according to schedule, motion detection, manually)

Browsing recorded video materials.

Alarm options upon motion detection.

Ability to control PTZ controllers.

Many other functions

Other programs included: Upgrade, Player, NetSDK, H264Play, Disk Player

Mobile phone support program

Supported systems: Symbian, Windows mobile, Android, IPhone.

The program allows camera image preview via mobile phone.

Set contents

1x IP Camera

1x CD with software and manual in English

1x Cardboard box

Certificates and standards

CE, RoHS

Dimensions, Weight

Product dimensions: 170 x 100 x 105 mm (D x W x H)

Package dimensions: 180 x 110 x 110 mm (D x W x H)

Product weight: 800 g

Weight with package: 924 g
