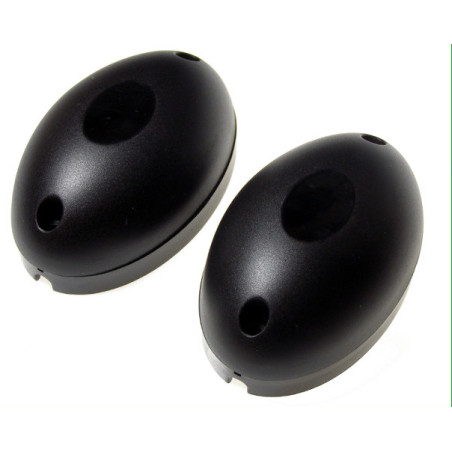

Outdoor Photoelectric Infrared Barrier Sensor 15m Gate Garage Driveway Photocell ACTii AC7051
zł58.95
Tax included
Delivery within 3-4 days.
High-quality photoelectric barrier with a range of up to 15m, designed for security systems and gate automation. The set consists of a transmitter and receiver operating in active infrared technology (940nm). Thanks to 12-24V AC/DC power support and a wide operating temperature range (-10°C to +70°C), the device is extremely versatile and reliable in various weather conditions. It works perfectly as a photocell for sliding and garage gates, preventing them from closing when an obstacle is in the passage path. It can also serve as an alarm sensor for fences.
Outdoor Photoelectric Infrared Barrier Sensor 15m Gate Garage Driveway Photocell
Model: ACTii AC7051
EAN: 6931240070512 SKU: 705183190
- Compact dimensions and aesthetic design
- Operating range up to 15 meters
- Wide power supply range: 12V - 24V AC and DC
- NO or NC relay output (1A 36V)
- Resistance to harsh weather conditions (IP)
- Active infrared technology 940nm
Description
High-quality photoelectric barrier with a range of up to 15m, designed for security systems and gate automation. The set consists of a transmitter and receiver operating in active infrared technology (940nm). Thanks to 12-24V AC/DC power support and a wide operating temperature range (-10°C to +70°C), the device is extremely versatile and reliable in various weather conditions. It works perfectly as a photocell for sliding and garage gates, preventing them from closing when an obstacle is in the passage path. It can also serve as an alarm sensor for fences.
Specification
Technical Parameters
Technology: Active infrared beam
Frequency: 1.92KHz
Wavelength: 940nm
Alarm/relay output: NO or NC; 1A max 36V
Power consumption: Receiver (RX) 15mA, Transmitter (TX) 30mA
Range and Conditions
Barrier range: ≤ 15m (range may decrease by 30% in harsh conditions such as rain or heavy dust)
Operating temperature: -10°C to +70°C
Material
ABS resin - material resistant to UV radiation and weather conditions
Color: Black
Power Supply
Supply voltage: 12V - 24V DC or AC
Dimensions and Weight
Product dimensions: 49.2 x 76 x 21.6 mm
Product weight: 90g
Certificates
CE, RoHS
Contents
1x Transmitter
1x Receiver
2x Rubber gasket
Set of mounting plugs and screws
User manual
Dimensions, Weight
Product dimensions: 21 x 49 x 76 mm (D x W x H)
Packaging dimensions: 120 x 80 x 80 mm (D x W x H)
Product weight: 90 g
Weight with packaging: 127 g
