WiFi smart underfloor heating control set gateway thermostats strip actuators

Model: Auraton AURSMC1122010V

EAN: 6931240066218 SKU: 931266212

• Complete set for controlling 8 underfloor heating zones
• Remote control via free SUPLA app (Android/iOS)
• AURATON BOX internet gateway supporting up to 50 Smart devices
• Heat Chip function protecting the system against overheating
• Pump Guard function preventing central heating pump seizure
• Furnace Guard function protecting the furnace against frequent cycling
• Wireless thermostats with LCD displays and FrostGuard function
• Quiet and durable Vela thermoelectric actuators (M30x1.5)
• Easy configuration thanks to the Easy Connect function
• Possibility of mounting the strip on a DIN rail

Description

The AURATON SUPLA 1 underfloor heating set is a comprehensive and modern solution designed for intelligent temperature management in your home. Thanks to integration with the SUPLA system, users gain full control over thermal comfort from anywhere in the world using a smartphone, tablet, or computer. This system not only raises the standard of living but, above all, generates real savings on energy bills thanks to precise regulation and the ability to create advanced operating schedules.

The heart of the set is the AURATON BOX internet gateway, which ensures stable and reliable communication between all elements of the AURATON Smart system and the SUPLA cloud. The set also includes an advanced Multizone Controller strip supporting up to 8 heating zones, 4 quiet AURATON Vela thermoelectric actuators, and 2 elegant, white Heat Monitor wireless thermostats. The whole system has been designed so that installation is quick and intuitive, and daily operation is simple even for people without technical knowledge.

Advantages of the AURATON SUPLA 1 system:

- Full integration with the SUPLA ecosystem – manage heating, lighting, and alarms in one app.

- High energy efficiency – precise control of each zone individually allows you to avoid overheating rooms.

- Safety and protection – built-in Furnace Guard, Pump Guard, and Heat Chip functions protect the boiler, pump, and underfloor installation against failures.

- Expansion flexibility – the AURATON BOX gateway supports up to 50 devices, which allows for the gradual addition of further smart home modules.

- Modern design – white Heat Monitor thermostats with clear LCD displays will perfectly fit into any interior.

- Remote access – control the temperature at home while at work or on vacation, ensuring that there is always a perfect atmosphere upon your return.

Specification

AURATON BOX Gateway - Power supply

USB-C, 5V DC, 2W

AURATON BOX Gateway - Communication

WiFi 2.4 GHz (IEEE 802.11 b/g/n), Radio 868.150 MHz / 868.450 MHz / 869.800 MHz

AURATON BOX Gateway - Parameters

Operating temp. range: 0 – 45°C, Protection class: IP 20, Range: up to 30 m in a building, Support for up to 50 devices

Multizone Controller Strip - Power supply

230V AC, 50Hz, Power consumption: approx. 1.5W

Multizone Controller Strip - Outputs

8 heating zones (30W per zone, up to 6 actuators), Central heating pump output (200W), Relay (max 250V AC, 2A)

Multizone Controller Strip - Functions

Heat Chip (overheating protection), Furnace Guard (furnace protection), Pump Guard (pump protection), Easy Connect

AURATON Vela Actuator - Parameters

Power supply: 230V AC, 3.5W, Thread: M30x1.5 mm, Stroke: 3.6 mm, Pressure force: 100 N, Type: NC (normally closed), IP 40

Heat Monitor Thermostat - Parameters

Power supply: 2x AAA 1.5V battery, Control range: 0 – 40°C, Hysteresis: ±0.2°C, Accuracy: 0.1°C, Functions: FrostGuard, Hotel mode

Software and Interface

A system based on the SUPLA application, which is one of the most popular Smart Home solutions in Poland. The software enables full remote control over the heating system from a smartphone or tablet. The user can create advanced daily and weekly schedules, define automation scenarios (e.g., lowering the temperature after arming the alarm), and monitor the operating status of each of the 8 zones in real time. The system supports integration with the cloud.supla.org cloud, which allows for device management via a web browser and integration with Google Home and Amazon Alexa voice assistants. The interface is intuitive and allows for easy addition of new AURATON Smart modules.

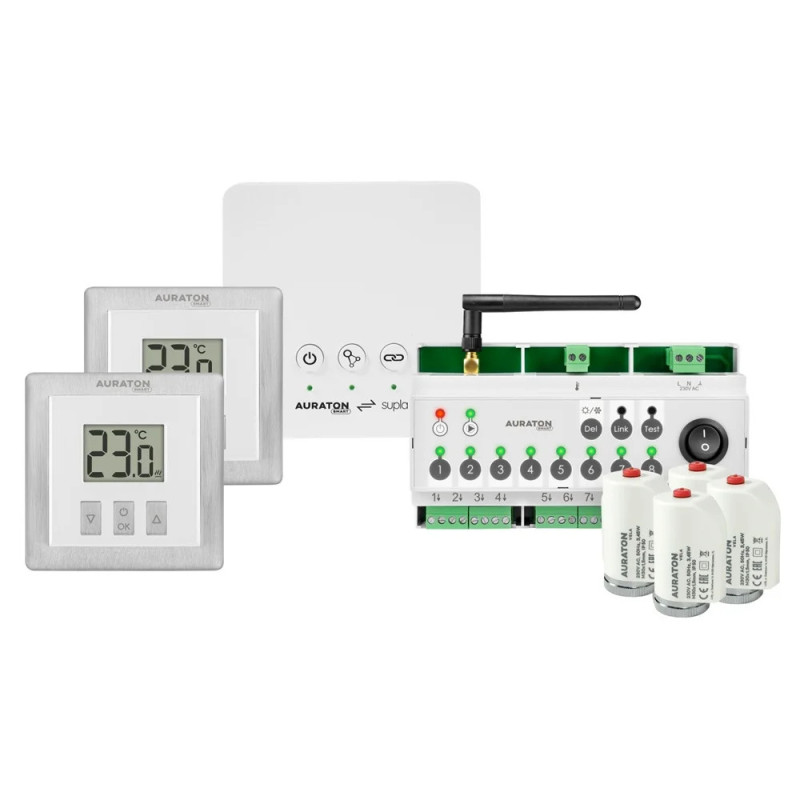

Contents

1x AURATON BOX internet gateway

1x AURATON Multizone Controller strip

4x AURATON Vela thermoelectric actuator

2x AURATON Heat Monitor wireless thermostat (white)

1x Antenna for the strip

User manual

Dimensions, Weight

Product dimensions: 59 x 159 x 90 mm (D x W x H)

Packaging dimensions: 200 x 250 x 150 mm (D x W x H)

Product weight: 1450 g

Weight with packaging: 1800 g
