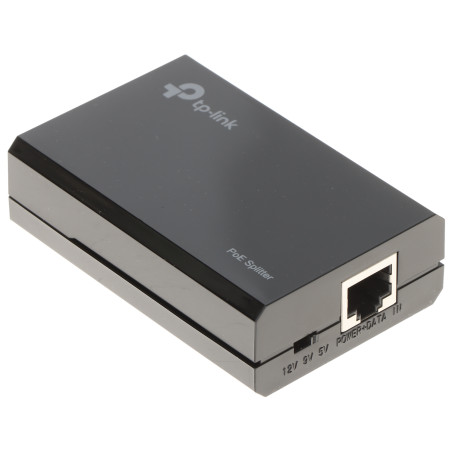

Gigabit Ethernet PoE Splitter 5V 9V 12V DC IEEE 802.3af RJ45 Adapter for IP Cameras and AP TP-LINK TL-POE10R
zł135.93
Tax included
The TL-POE10R is a professional PoE (Power over Ethernet) splitter that serves as an ideal solution for modern network installations. The device allows for powering non-PoE compliant equipment using existing twisted-pair cabling infrastructure. Thanks to full compliance with the IEEE 802.3af standard, the splitter works with a wide range of PoE switches and injectors, making it an extremely versatile tool for installers.
One of the key advantages of the device is the ability to adjust the output voltage. Using a convenient switch, the user can select 5V, 9V, or 12V DC, allowing for the safe connection of various devices such as IP cameras, Access Points, or VoIP phones. Gigabit Ethernet support ensures that data transmission occurs at speeds up to 1000 Mbps, which is crucial for high-resolution monitoring systems and fast office networks.
The product features exceptional installation simplicity thanks to the Plug & Play function – it requires no software configuration. The compact housing made of durable plastic allows for installation in space-constrained areas. Additionally, built-in advanced short-circuit and overload protection systems ensure the safety of connected equipment, eliminating the risk of failure caused by voltage spikes. By choosing this splitter, you gain flexibility in network design, savings on additional power cabling, and a guarantee of stable operation for your network devices.
Gigabit Ethernet PoE Splitter 5V 9V 12V DC IEEE 802.3af RJ45 Adapter for IP Cameras and AP
Model: TP-LINK TL-POE10R
EAN: 6931240091920 SKU: 931091925
- Full compliance with IEEE 802.3af standard
- Adjustable output voltage: 5V DC, 9V DC or 12V DC
- Gigabit Ethernet support (10/100/1000 Mbps)
- Data and power transmission range up to 100 meters
- Plug & Play installation - no configuration required
- Built-in short-circuit and overload protection
- Automatic MDI/MDI-X transmission mode detection
- Auto-Sensing algorithm for output power adjustment
- Compact and lightweight durable plastic housing
- LED indicator for power status
Description
The TL-POE10R is a professional PoE (Power over Ethernet) splitter that serves as an ideal solution for modern network installations. The device allows for powering non-PoE compliant equipment using existing twisted-pair cabling infrastructure. Thanks to full compliance with the IEEE 802.3af standard, the splitter works with a wide range of PoE switches and injectors, making it an extremely versatile tool for installers.
One of the key advantages of the device is the ability to adjust the output voltage. Using a convenient switch, the user can select 5V, 9V, or 12V DC, allowing for the safe connection of various devices such as IP cameras, Access Points, or VoIP phones. Gigabit Ethernet support ensures that data transmission occurs at speeds up to 1000 Mbps, which is crucial for high-resolution monitoring systems and fast office networks.
The product features exceptional installation simplicity thanks to the Plug & Play function – it requires no software configuration. The compact housing made of durable plastic allows for installation in space-constrained areas. Additionally, built-in advanced short-circuit and overload protection systems ensure the safety of connected equipment, eliminating the risk of failure caused by voltage spikes. By choosing this splitter, you gain flexibility in network design, savings on additional power cabling, and a guarantee of stable operation for your network devices.
Specification
Standards and protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af; Support for local area network data transmission standards and Power over Ethernet standards.
Transmission speed
10/100/1000 Mbps; Full support for the Gigabit Ethernet standard ensures high bandwidth for demanding network applications.
Input ports
1x RJ-45 (PoE IN); Port supporting input voltage in the range of 36V ... 57V DC transmitted along with data.
Output ports
1x RJ-45 (LAN OUT) - data transmission; 1x DC jack 5.5/2.1 mm - power output for the end device.
Output voltage
5V / 9V / 12V DC; Selectable via a physical slide switch located on the device housing.
Output power
10W @ 5V DC; 9W @ 9V DC; 12W @ 12V DC; Current capacity adapted to most popular network devices.
Transmission range
Up to 100 meters; Allows for flexible placement of devices away from 230V mains power sources.
Intelligent functions
Auto-Sensing Algorithm: The device features a built-in microcontroller with an Auto-Sensing algorithm, which acts as intelligent software controlling the power negotiation process. This system identifies the power requirements of the connected device in a fraction of a second and adjusts operating parameters according to the IEEE 802.3af standard. This software provides full protection against applying incorrect voltage, which could damage non-PoE compliant equipment. Additionally, the implemented Auto MDI/MDI-X support eliminates the need for crossover cables by automatically detecting the connection type and optimizing the Gigabit Ethernet data transmission path.
LED signaling
PWR - LED indicating the presence of voltage on the device's power output.
Protections
Short-circuit (SCP), Overload (OLP), Surge protection; Advanced electronic circuits protecting both the splitter and the connected end device.
Housing
High-quality plastic; Aesthetic white finish, resistant to typical indoor operating conditions.
Operating temperature
0 °C ... 40 °C; Device designed for operation in standard office and home conditions.
Relative humidity
10 % ... 90 % (non-condensing); Ensures stable operation in varying humidity conditions.
Certificates
FCC, CE, RoHS; Compliance with European and international safety and environmental protection standards.
Contents
1x PoE Splitter TL-POE10R
1x DC power cable (plug-to-plug 5.5/2.1)
1x Installation guide
Dimensions, Weight
Product dimensions: 54 x 81 x 24 mm (D x W x H)
Package dimensions: 165 x 200 x 65 mm (D x W x H)
Product weight: 60 g
Weight with packaging: 256 g
