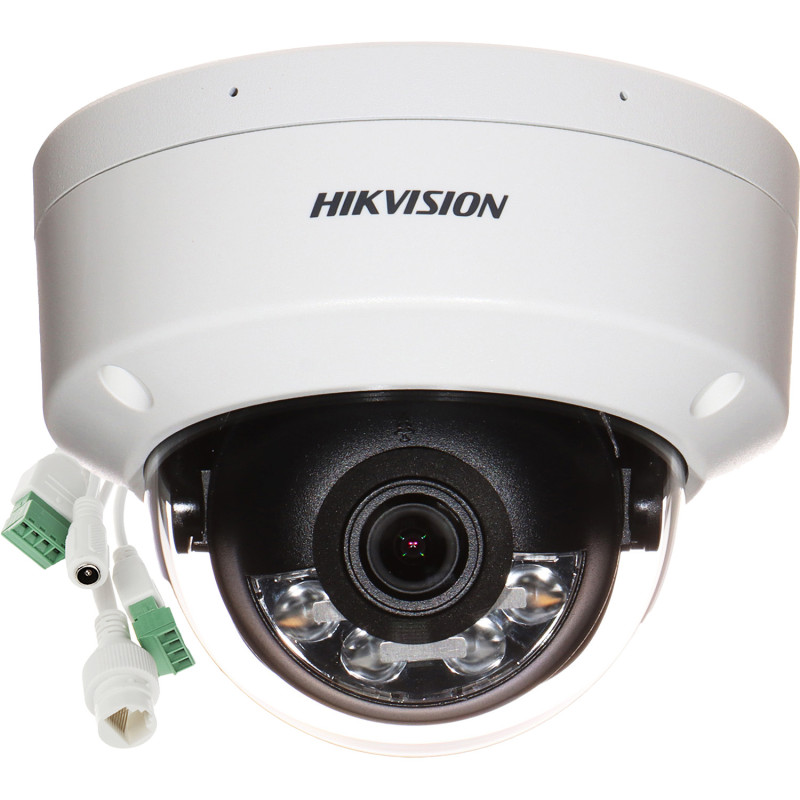

Vandal-Resistant IP Camera 4MPx Smart Hybrid Light AcuSense IR LED Audio Alarm IK10 IP67

Model: Hikvision DS-2CD2143G2-LIS2U(4MM)/PL

EAN: 6931240072493 SKU: 931072495

• High resolution 4 MPx (2688 x 1520) for detailed images
• Smart Hybrid Light technology - intelligent IR/LED switching
• AcuSense - advanced human and vehicle classification (false alarm reduction)
• Vandal-resistant housing with IK10 impact protection rating
• IP67 ingress protection rating - full protection against dust and water
• Built-in dual microphone with noise and echo reduction
• Wide Dynamic Range (WDR) 120 dB for excellent visibility in high-contrast lighting
• Support for Micro SD cards up to 512 GB
• PoE (802.3af) or 12V DC power supply
• Intelligent image analysis: intrusion, line crossing

Description

The DS-2CD2143G2-LIS2U(4MM)/PL IP camera is a professional video surveillance device that combines high 4 MPx resolution with innovative security enhancement technologies. Thanks to the efficient H.265+ compression algorithm, the user receives a clear and smooth image while significantly reducing network bandwidth and hard drive storage usage. It is an ideal solution for systems where precise identification of people and vehicles is crucial.

The greatest advantage of this model is the Smart Hybrid Light technology and the AcuSense system. Smart Hybrid Light allows for intelligent switching between discreet infrared (IR) illumination and bright white light (LED). In hybrid mode, the camera monitors the area in infrared, and upon detecting an intruder, it automatically activates the white light, which allows for recording a high-detail color image and acts as a deterrent to unwanted guests. AcuSense technology, based on deep learning algorithms, effectively filters out false alarms, focusing exclusively on detecting human and vehicle silhouettes.

The camera is characterized by exceptional durability. The aluminum alloy housing has an IP67 ingress protection rating, which guarantees full resistance to harsh weather conditions, and an IK10 mechanical impact protection rating, protecting the device against acts of vandalism. An additional advantage is the built-in dual microphone with noise and echo reduction, which allows for high-quality audio recording from the surroundings. The ability to power via PoE (Power over Ethernet) simplifies installation, eliminating the need to run separate power cables.

Specification

Standard and Resolution

Standard: IP; Resolution: 2688 x 1520 - 4 Mpx; Transmission speed: 25 fps @ 4 Mpx

Sensor and Optics

Sensor: 1/2.9 " Progressive Scan CMOS; Lens: 4 mm; Viewing angle: 84 °

Night Illumination

Smart Hybrid Light: Yes; IR illuminator range: 30 m; White light (LED) illuminator range: 30 m

Compression and Recording

Image compression method: H.265+ / H.264+ / H.265 / H.264; Memory card slot: Micro SD card support up to 512GB; NAS support: Yes; ANR: Yes (recording on card when connection to recorder is lost)

Audio

Built-in microphone: 2 pcs.; External microphone input: Yes; Audio output: Yes; Audio transmission over network: Yes; Compatibility: AAC; Functions: Noise and echo reduction

Interface and Network

Interface: 10/100 Base-T (RJ-45); WEB Server: Built-in; ONVIF: Yes; Max. number of on-line users: 6; Default IP address: 192.168.1.64; Ports: 80 (WWW), 8000 (Application), 554 (RTSP)

Intelligent Image Analysis

Technology: AcuSense; Functions: Intrusion, line crossing, human and vehicle classification, video tampering detection, intelligent motion detection

Selected Image Functions

WDR - 120 dB (Wide Dynamic Range), 3D-DNR (Digital Noise Reduction), ROI (Region of Interest), BLC (Backlight Compensation), HLC (Highlight Compensation), ICR (Mechanical Infrared Filter), Mirror, Sharpness, Privacy zones: Configurable

Software

Mobile access: Port 8000 or cloud (P2P); Android: Free Hik-Connect app; iOS: Free Hik-Connect app; PC: iVMS-4200. The Hik-Connect software enables instant live viewing from anywhere in the world without the need for a public IP address thanks to the P2P service. The application supports push notifications for alarm events, remote playback of recordings from the SD card, and two-way audio communication. iVMS-4200 is a professional video management system for PCs, allowing for advanced configuration of image parameters, creation of recording schedules, and support for multiple monitors simultaneously.

Power Supply and Consumption

Power supply: PoE (802.3af), 12 V DC / 600 mA; Power consumption: ≤ 8.5 W @ PoE, ≤ 7.2 W @ 12 V DC

Housing and Durability

Type: Dome; Material: Aluminum alloy; Color: White; Ingress protection: IP67; Mechanical protection class: IK10

Operating Conditions

Operating temperature: -30 °C ... 60 °C; Permissible humidity: No data

Alarms

Alarm inputs: 1; Alarm outputs: 1

Manufacturer Data

Brand: Hikvision; SAP Code: 311331089; Warranty: 3 years

Contents

1x IP Camera

1x Mounting kit

1x Drill template

1x User manual

Dimensions, Weight

Product dimensions: 122 x 122 x 98 mm (D x W x H)

Package dimensions: 155 x 155 x 145 mm (D x W x H)

Product weight: 600 g

Weight with packaging: 778 g
