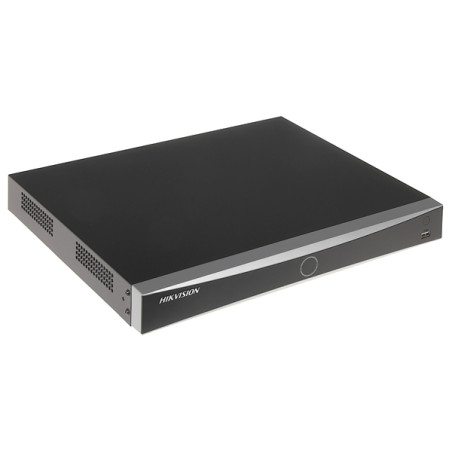

16-Channel 32Mpx IP NVR AcuSense AcuSeek AI Guanlan 4K HDMI VGA 2xSATA

Model: Hikvision DS-7616NXI-I2/VPRO

EAN: 6931240065303 SKU: 931065301

• Support for up to 16 IP channels with resolution up to 32 Mpx
• AcuSense technology - false alarm filtering (humans/vehicles)
• AcuSeek function - search for recordings using natural language queries
• Based on advanced AI Guanlan models (transformer architecture)
• Support for 2 SATA hard drives with a capacity of up to 20 TB each
• 4K HDMI and VGA video output
• Dual RJ-45 10/100/1000 Base-TX network interface
• Video compression H.265+ / H.265 / H.264+ / H.264
• Intelligent VCA image analysis and metadata support
• Face recognition with a database of up to 50,000 images
• ANPR function - license plate and vehicle brand recognition
• Remote access via Hik-Connect app (Android/iOS) and iVMS-4200

Description

The Hikvision DS-7616NXI-I2/VPRO network video recorder is a breakthrough device in the field of video surveillance systems, utilizing the latest advancements in artificial intelligence. At the heart of the device are advanced AI Guanlan models, based on an innovative transformer architecture, which allows for unprecedented precision in image, sound, and text analysis in the context of AIoT systems. Thanks to AcuSense technology, the recorder effectively filters out false alarms, focusing exclusively on relevant events related to human and vehicle silhouette recognition, which reduces the number of unnecessary notifications by up to 90%.

A key innovation of this model is the AcuSeek function, which revolutionizes the way video recordings are searched. The user can use natural language queries, describing the desired object (e.g., "man in a red jacket"), and the system, based on the analysis of the silhouette, color, and type of object, instantly finds the relevant video clips. The device supports up to 16 IP channels with an impressive resolution of up to 32 Mpx, which guarantees the highest quality of detail and security at the highest level.

Product advantages:

- Exceptional detection precision thanks to advanced AI Guanlan models.

- Intuitive and fast AcuSeek search saving operator time.

- Support for very high IP camera resolutions up to 32 Mpx.

- Advanced H.265+ compression allowing for significant hard drive space savings.

- Possibility of mounting in professional 19-inch RACK cabinets (1U height).

- Stable operation in a wide temperature range from -10°C to 55°C.

- Two independent Gigabit Ethernet network interfaces for optimal bandwidth.

- Support for two SATA hard drives with a capacity of up to 20TB each.

Specification

Standard and Series

Standard: IP; Product series: I / VPro AcuSense AcuSeek; Uses AI Guanlan models with transformer architecture for precise AIoT analysis.

Channel Support and Resolution

Number of supported channels: 16; Maximum supported resolution: 32 Mpx.

Artificial Intelligence (Recorder)

Face recognition: Face comparison with database images; Support for up to 16 face databases (total 50,000 images); Intelligent person search based on photo; AcuSearch; AcuSeek - descriptive search (natural language).

Artificial Intelligence (Cameras)

Perimeter protection; Video structuring; Motion detection 2.0; ANPR (license plate, color, body type, and vehicle brand recognition); People counting; VCA - metadata support.

Software and Management

The iVMS-4200 software is a comprehensive video management system (CMS) for Hikvision systems. It enables full device configuration, live view, playback of recordings, and advanced alarm event management. The application supports intelligent functions such as heat maps, people counting, and AI parameter configuration directly from the computer. The interface is intuitive, allowing for the creation of e-maps and schedules. The system ensures stable operation and data security, enabling the export of video materials in secured formats. It supports Windows systems and Chrome, Firefox, Safari, and Edge browsers.

Mobile Access

Cloud access (P2P); Port: 8000; Android: Free Hik-Connect app; iOS: Free Hik-Connect app.

Storage

Hard drive support: 2 x SATA; Maximum capacity: 20 TB per disk (total 40 TB).

Video and Audio Outputs

Video outputs: 1x 4K HDMI, 1x VGA; Audio inputs/outputs: 1 / 1.

Compression and Bandwidth

Compression method: H.265+ / H.265 / H.264+ / H.264; Bitrate: 192 Mbps (incoming).

Network Interface

2 x RJ-45 10/100/1000 Base-TX; ONVIF protocol support version 2.5; Default IP address: 192.168.1.64.

Additional Connectors

USB: 1x USB 2.0 (front), 1x USB 3.0 (rear); Alarm inputs/outputs: 4 / 1.

Power Supply and Consumption

Power supply: 12 V DC / 5 A (power adapter included); Power consumption: ≤ 50 W (without HDD installed).

Operating Conditions and Housing

Operating temperature: -10 °C ... 55 °C; Housing type: RACK 19", 1U height.

Language Support

Polish, English, Bulgarian, Croatian, Czech, Danish, Estonian, Finnish, French, Greek, Spanish, Dutch, Lithuanian, Latvian, German, Norwegian, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Hungarian, Italian.

Manufacturer Information

Manufacturer: Hikvision; SAP Code: 303623222; Warranty: 3 years.

Contents

1x IP NVR

1x 12V/5A power adapter

1x Computer mouse

1x Set of screws for disk mounting

1x User manual

Dimensions, Weight

Product dimensions: 322 x 384 x 52 mm (D x W x H)

Package dimensions: 390 x 435 x 130 mm (D x W x H)

Product weight: 1850 g

Weight with packaging: 3070 g
