- New

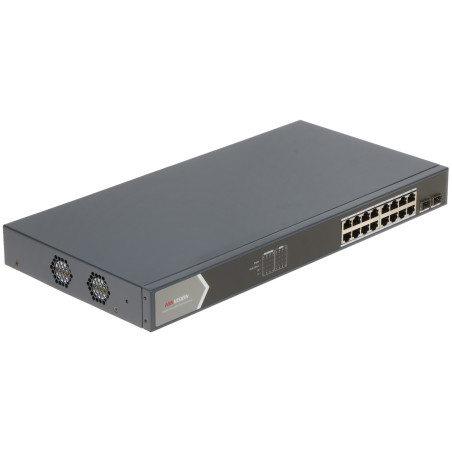

16-Port Gigabit PoE+ Smart Managed Switch 2x SFP 19 inch Rack 225W Hikvision DS-3E1518P-SI
zł2,794.56
Tax included
The DS-3E1518P-SI switch is a professional Smart Managed network device, designed specifically for modern IP video surveillance systems where high bandwidth and reliability are required. The device offers 16 Gigabit Ethernet ports with PoE+ (802.3at/af) technology support, allowing for simultaneous data transmission and camera power supply via a single UTP cable. This makes installation simpler, faster, and more aesthetically pleasing.
A key advantage of this model is the presence of 2 SFP ports, which enable high-speed fiber optic Uplink connections, ideal for connecting the switch to the main network node over long distances. The device supports advanced management features, such as network topology visualization, allowing the administrator to perform rapid diagnostics and locate potential faults. Additionally, the PoE Watchdog function automatically monitors the status of connected cameras and, if no response is detected, performs a power restart on the specific port, restoring the device to operation without human intervention.
The switch features a robust metal housing designed for mounting in standard 19-inch Rack cabinets. A high PoE power budget of 225W allows for powering even the most demanding PTZ cameras or IR illuminators. An additional benefit is the 6kV surge protection, which secures ports against the effects of lightning strikes, which is extremely important in outdoor installations.
16-Port Gigabit PoE+ Smart Managed Switch 2x SFP 19 inch Rack 225W
Model: Hikvision DS-3E1518P-SI
EAN: 6931240064191 SKU: 931064191
- 16 x 10/100/1000 Mbps RJ45 ports with PoE support (802.3af/at)
- 2 x 1000 Mbps SFP ports dedicated for high-speed fiber optic Uplink connections
- Smart Managed via Web interface and iVMS-4200 application
- PoE Watchdog function – automatic restart of unresponsive end devices
- High PoE power budget of 225 W total (up to 30 W per single port)
- 6 kV surge protection for all PoE ports
- Extend mode enabling data and power transmission up to 300 meters
- Support for advanced L2 features: VLAN, QoS, STP/RSTP, and link aggregation
- Robust 1U metal housing, designed for 19" Rack cabinet mounting
- Automatic MDI/MDI-X detection eliminating the need for crossover cables
Description
The DS-3E1518P-SI switch is a professional Smart Managed network device, designed specifically for modern IP video surveillance systems where high bandwidth and reliability are required. The device offers 16 Gigabit Ethernet ports with PoE+ (802.3at/af) technology support, allowing for simultaneous data transmission and camera power supply via a single UTP cable. This makes installation simpler, faster, and more aesthetically pleasing.
A key advantage of this model is the presence of 2 SFP ports, which enable high-speed fiber optic Uplink connections, ideal for connecting the switch to the main network node over long distances. The device supports advanced management features, such as network topology visualization, allowing the administrator to perform rapid diagnostics and locate potential faults. Additionally, the PoE Watchdog function automatically monitors the status of connected cameras and, if no response is detected, performs a power restart on the specific port, restoring the device to operation without human intervention.
The switch features a robust metal housing designed for mounting in standard 19-inch Rack cabinets. A high PoE power budget of 225W allows for powering even the most demanding PTZ cameras or IR illuminators. An additional benefit is the 6kV surge protection, which secures ports against the effects of lightning strikes, which is extremely important in outdoor installations.
Specification
Ports and Interfaces
16 x RJ45 10/100/1000 Base-T (PoE 802.3af/at)
2 x SFP 1000 Base-X port (Uplink)
Transmission Speed
10 / 100 / 1000 Mbps for LAN & PoE ports
1000 Mbps for SFP ports
PoE Power Supply
Standards: IEEE 802.3af, IEEE 802.3at
Maximum power per port: 30 W
Total power budget: 225 W
8-pin power supply support
Performance and Tables
MAC address table: 8k
Throughput: Full gigabit speed on all ports
Management and Configuration
Management via Web browser (Web Server)
Support via iVMS-4200 application
SNMPv1/v2c protocol
Remote software update and configuration
Layer 2 (L2) Features
VLAN
Spanning Tree STP/RSTP
Static link aggregation
Port mirroring
Flow control
Storm Control function
Security and Protection
Surge protection: 6 kV for PoE ports
Metal housing providing shielding and durability
Smart Features
PoE Watchdog: Automatic detection and restart of unresponsive cameras
Real-time network topology preview
Network health monitoring
Software and Interface
The device works with advanced iVMS-4200 software, which serves as a complete management center for security systems. The application allows for full visualization of the network structure, enabling the administrator to quickly view the load on individual ports and the total PoE power consumption. Thanks to iVMS-4200, it is possible to remotely configure network parameters, manage QoS priorities for video streams, and create virtual local area networks (VLANs). The interface is clear and intuitive, allowing for effective management of even extensive surveillance systems from a single location. The software also supports critical event notifications, allowing for immediate reaction in case of a connection failure.
Operating Modes
Extend On: range up to 300 m, speed 10 Mbps (UTP cat. 5e, 6)
Extend Off: range up to 100 m, speed 1000 Mbps (UTP cat. 5e, 6)
LED Indicators
Power, Link/Act, PoE, PoE Max, 17 SFP, 18 SFP
Default Network Parameters
IP address: 192.168.1.64
Login: admin
Password: setting required upon first startup
Electrical Parameters
Power supply: 100 V ... 240 V AC
Frequency: 50/60 Hz
Environmental Conditions
Operating temperature: -10 °C ... 55 °C
Humidity: 5% ... 95% (non-condensing)
Construction and Certificates
Housing type: Metal, Rack 19", 1U
Certificates: CE
SAP Code: 301802030
Contents
1x PoE Switch
1x Power cable
1x Set of mounting brackets for Rack cabinet
1x User manual
Dimensions, Weight
Product dimensions: 221 x 440 x 44 mm (D x W x H)
Package dimensions: 310 x 530 x 90 mm (D x W x H)
Product weight: 2740 g
Weight with packaging: 3568 g
