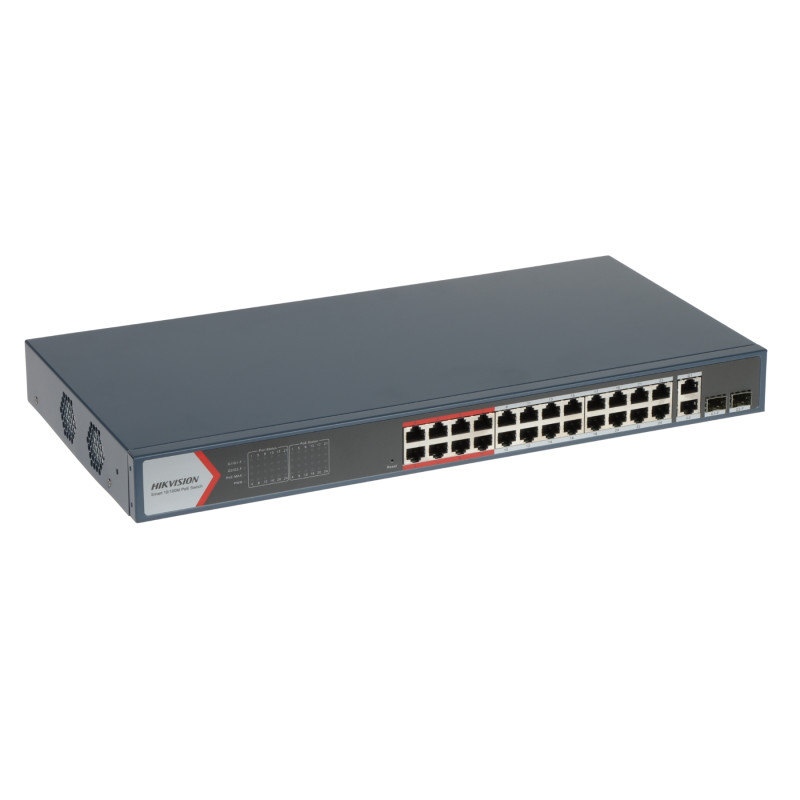

24-port PoE Switch with 2 SFP ports for IP CCTV monitoring systems Hikvision DS-3E1326P-EI(B)
zł1,772.43
Tax included
The professional DS-3E1326P-EI(B) PoE switch is an advanced network device designed specifically for demanding IP CCTV video surveillance systems. Thanks to its high performance and support for PoE standards (802.3af/at), this switch is an ideal solution for extensive installations where it is necessary to power multiple IP cameras while maintaining stable data transmission. The device offers 24 RJ45 ports with PoE support and 2 Combo SFP/RJ45 ports, providing great flexibility in designing network topologies.
A key advantage of this model is the built-in 6 kV surge protection, which protects the equipment against the effects of lightning strikes and potential differences, which is extremely important in outdoor installations and extensive networks. The switch supports advanced management functions such as network topology visualization, data flow control, port aggregation, and remote software updates. Thanks to the dedicated iVMS-4200 application, administrators can easily configure the device, monitor the network status, and generate statistical reports, which significantly reduces the time required for system maintenance and diagnostics. The robust construction and high total output power of 370 W make it a reliable component of any professional security system.
24-port PoE Switch with 2 SFP ports for IP CCTV monitoring systems
Model: Hikvision DS-3E1326P-EI(B)
EAN: 6931240063361 SKU: 931063362
- 24 PoE ports (802.3af/at) with up to 30W per port
- 2 Combo SFP/RJ45 ports for uplink flexibility
- 6 kV surge protection
- Management via iVMS-4200 application
- Extend mode (up to 300m at 10 Mbps)
- High total PoE power budget: 370 W
- Network topology visualization and real-time statistics
Description
The professional DS-3E1326P-EI(B) PoE switch is an advanced network device designed specifically for demanding IP CCTV video surveillance systems. Thanks to its high performance and support for PoE standards (802.3af/at), this switch is an ideal solution for extensive installations where it is necessary to power multiple IP cameras while maintaining stable data transmission. The device offers 24 RJ45 ports with PoE support and 2 Combo SFP/RJ45 ports, providing great flexibility in designing network topologies.
A key advantage of this model is the built-in 6 kV surge protection, which protects the equipment against the effects of lightning strikes and potential differences, which is extremely important in outdoor installations and extensive networks. The switch supports advanced management functions such as network topology visualization, data flow control, port aggregation, and remote software updates. Thanks to the dedicated iVMS-4200 application, administrators can easily configure the device, monitor the network status, and generate statistical reports, which significantly reduces the time required for system maintenance and diagnostics. The robust construction and high total output power of 370 W make it a reliable component of any professional security system.
Specification
LAN ports
24 x RJ45 10/100 Base-T (with PoE 802.3af/at support), 2 x Combo port: SFP (Base-X) / RJ45 (Base-T)
Transmission speed
10/100 Mbps for LAN/PoE ports, 10/100/1000 Mbps for Uplink ports, 1000 Mbps for SFP ports
Maximum output power
30 W per PoE port
Maximum total power
370 W
MAC address table
16k
Management
Yes, via iVMS-4200 application
Default IP address
192.168.1.64
Operating modes
Extend On: 300 m (10 Mbps), Extend Off: 100 m (100 Mbps)
Selected features
6 kV protection, priority ports 1-8, topology visualization, port aggregation, remote configuration and update
Software
The device is fully compatible with iVMS-4200 software. This application serves as a comprehensive management center for Hikvision security systems. It enables remote configuration of switch network parameters, real-time monitoring of the operating status of each PoE port, and visualization of the network topology, which allows for quick identification of potential failures. The software also supports remote firmware updates, ensuring the device maintains the latest security and functionality versions. Thanks to advanced statistical reports, administrators can analyze network load and optimize video data flow, which is crucial for maintaining image fluidity in IP monitoring systems.
LED indicators
Power, PoE Max, G1/G1-F, G2/G2-F
Power supply
100 ... 240 V AC, max. 6.3 A
Operating temperature
0 °C ... 45 °C
Warranty
3 years
Contents
1x PoE Switch DS-3E1326P-EI(B)
1x User manual
Dimensions, Weight
Product dimensions: 221 x 440 x 44 mm (D x W x H)
Package dimensions: 315 x 535 x 90 mm (D x W x H)
Product weight: 2830 g
Weight with packaging: 3490 g
