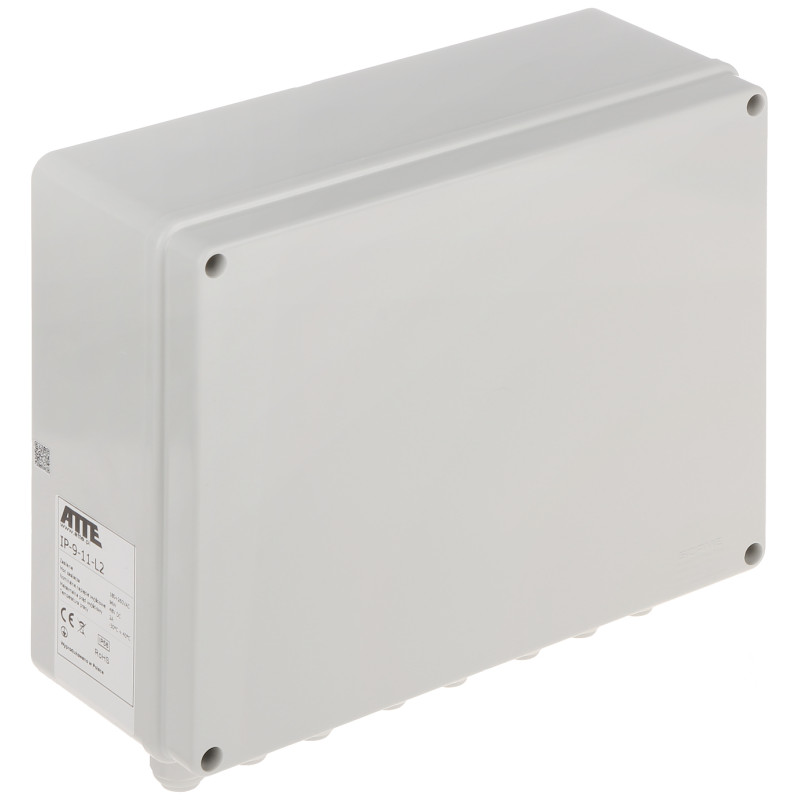

8-port PoE switch with Long Range support in IP56 outdoor enclosure ATTE IP-9-11-L2
zł926.33
Tax included
The IP-9-11-L2 set is a professional network solution designed for operation in harsh outdoor conditions. The device consists of two XPOE-6-11-OF modules and a high-efficiency APS-90-480-OF switching power supply, housed in a robust ABOX-L2 outdoor enclosure with an IP56 ingress protection rating. This design provides full protection against dust and water jets, making it an ideal choice for video surveillance systems installed outdoors.
A key advantage of this model is the support for LONG RANGE operating mode. It allows for a significant increase in the transmission range of power and data for LAN ports 1 to 4, reaching a distance of up to 280 meters. In this mode, the network bandwidth for these ports is limited to 10 Mbps, which is fully sufficient for stable image transmission from IP cameras. The user has the ability to independently enable and disable the LONG RANGE mode for each module, providing great flexibility in designing network infrastructure.
The device features a modular design that significantly improves maintenance tasks and enables quick and easy system expansion in the future. The raster mounting system for modules allows for adding further components without the need to replace the entire enclosure. The ABOX-L2 enclosure is equipped with 11 cable glands (10 x M16 + 1 x M20), which facilitates aesthetic and sealed cable entry. This is a reliable solution for installers who value quality, durability, and ease of installation in demanding industrial environments.
8-port PoE switch with Long Range support in IP56 outdoor enclosure
Model: ATTE IP-9-11-L2
EAN: 6931240069448 SKU: 931069443
- Set consisting of 2 XPOE-6-11-OF modules and an APS-90-480-OF power supply
- Outdoor enclosure with IP56 ingress protection rating
- LONG RANGE operating mode (range up to 280m at 10 Mbps)
- Support for PoE 802.3af/at and Passive PoE standards
- Possibility of cascading devices
- Modular design for easy maintenance and expansion
- 11 cable glands
Description
The IP-9-11-L2 set is a professional network solution designed for operation in harsh outdoor conditions. The device consists of two XPOE-6-11-OF modules and a high-efficiency APS-90-480-OF switching power supply, housed in a robust ABOX-L2 outdoor enclosure with an IP56 ingress protection rating. This design provides full protection against dust and water jets, making it an ideal choice for video surveillance systems installed outdoors.
A key advantage of this model is the support for LONG RANGE operating mode. It allows for a significant increase in the transmission range of power and data for LAN ports 1 to 4, reaching a distance of up to 280 meters. In this mode, the network bandwidth for these ports is limited to 10 Mbps, which is fully sufficient for stable image transmission from IP cameras. The user has the ability to independently enable and disable the LONG RANGE mode for each module, providing great flexibility in designing network infrastructure.
The device features a modular design that significantly improves maintenance tasks and enables quick and easy system expansion in the future. The raster mounting system for modules allows for adding further components without the need to replace the entire enclosure. The ABOX-L2 enclosure is equipped with 11 cable glands (10 x M16 + 1 x M20), which facilitates aesthetic and sealed cable entry. This is a reliable solution for installers who value quality, durability, and ease of installation in demanding industrial environments.
Specification
LAN ports
1 x RJ45 10/100 Base-T (Uplink); 9 x RJ45 10/100 Base-T + PoE (802.3af/at) / Passive PoE
Management
None
LED indicators
Power, LAN
Transmission speed
10 / 100 Mbps : 1 LAN Port + 9 LAN & PoE Ports
Maximum output power
40 W @ Passive PoE (Ports 1-4); 70 W @ Passive PoE (Port 5); 30 W @ PoE 802.3af/at (Ports 1-5)
Maximum total power
96 W
Operating modes
Normal: 100m @ 10/100 Mbps (Ports 1-5); Long Range: 280m @ 10 Mbps (Ports 1-4), 100m @ 10/100 Mbps (Port 5)
Selected features
Possibility of cascading devices; LAN port 5 (PoE IN/OUT) for powering devices or power input; PoE output voltage equal to input; Independent PoE enable/disable for ports 1-5; Modular design; Raster mounting system; 11 cable glands (10xM16, 1xM20)
Power supply
230 V AC - cable terminals
Ingress protection rating
IP56
Manufacturer / Brand
ATTE
Warranty
3 years
Contents
2x XPOE-6-11-OF module
1x APS-90-480-OF switching power supply
1x ABOX-L2 outdoor enclosure
Dimensions, Weight
Product dimensions: 96 x 248 x 222 mm (D x W x H)
Package dimensions: 105 x 280 x 240 mm (D x W x H)
Product weight: 1050 g
Weight with packaging: 1218 g
