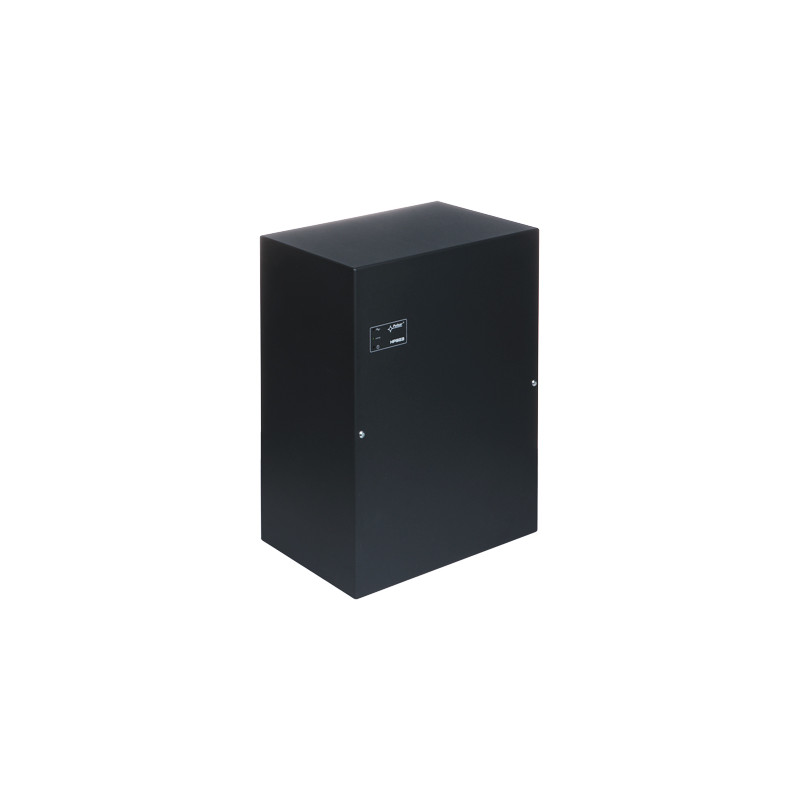

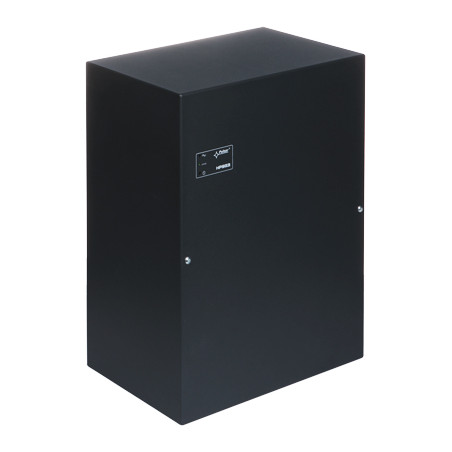

12V 5A Switching Buffer Power Supply for Alarm and Access Control Systems Grade 3 IP44 PULSAR HPSG3-12V5A-D
zł1,353.00
Tax included
The HPSG3-12V5A-D switching buffer power supply by Pulsar is a professional power solution designed for the most demanding security systems. The device is dedicated to the uninterruptible power supply of alarm control panels, sensors, digital locks, surveillance cameras, and intercom systems. Thanks to its advanced design, the power supply provides a stable 12V DC voltage, which is crucial for the proper operation of consumer electronics. The product has been designed in accordance with rigorous standards EN50131-6:2017 and EN60839-11-2:2015, allowing its use in professional installations with Grade 1, 2, and 3 security levels.
One of the key advantages of this model is its high energy efficiency, which reaches 86%. This translates into lower energy consumption and reduced heat emission, which positively affects the lifespan of the components. The power supply has built-in intelligent protection systems, including short-circuit, overload, and overvoltage protection. Additionally, the device maintains the condition of the connected battery through deep discharge protection and charging current control. A robust IP44-rated enclosure protects the interior from dust and moisture, and built-in tamper contacts report attempts at unauthorized opening or detachment of the device from the surface. It is the reliable heart of every alarm system, guaranteeing continuity of operation even in difficult environmental conditions.
12V 5A Switching Buffer Power Supply for Alarm and Access Control Systems Grade 3 IP44
Model: PULSAR HPSG3-12V5A-D
EAN: 6931240099650 SKU: 931099658
- Compliance with EN50131-6 (Grade 1-3) and EN60839-11-2 standards
- High energy efficiency up to 86%
- Space for a large 12V/40Ah battery
- Advanced technical outputs EPS FLT and APS FLT
- Full short-circuit, overload, and overvoltage protection
- IP44 ingress protection rating allowing installation in demanding locations
- START function for manual startup from battery
- Dynamic test and continuity monitoring of the battery circuit
Description
The HPSG3-12V5A-D switching buffer power supply by Pulsar is a professional power solution designed for the most demanding security systems. The device is dedicated to the uninterruptible power supply of alarm control panels, sensors, digital locks, surveillance cameras, and intercom systems. Thanks to its advanced design, the power supply provides a stable 12V DC voltage, which is crucial for the proper operation of consumer electronics. The product has been designed in accordance with rigorous standards EN50131-6:2017 and EN60839-11-2:2015, allowing its use in professional installations with Grade 1, 2, and 3 security levels.
One of the key advantages of this model is its high energy efficiency, which reaches 86%. This translates into lower energy consumption and reduced heat emission, which positively affects the lifespan of the components. The power supply has built-in intelligent protection systems, including short-circuit, overload, and overvoltage protection. Additionally, the device maintains the condition of the connected battery through deep discharge protection and charging current control. A robust IP44-rated enclosure protects the interior from dust and moisture, and built-in tamper contacts report attempts at unauthorized opening or detachment of the device from the surface. It is the reliable heart of every alarm system, guaranteeing continuity of operation even in difficult environmental conditions.
Specification
Power supply type
Switching - uses a high-frequency converter for stable conversion of AC voltage to DC.
Input voltage
200 V ... 240 V AC (sinusoidal alternating current).
Output voltage
11.0 V ... 13.8 V DC in buffer mode; 10.0 V ... 13.8 V DC in battery mode.
Current efficiency
The total capacity is 5 A, which allows for powering extensive CCTV or alarm systems.
Battery charging
The charging current is 1.8 A, ensuring quick restoration of the energy buffer readiness.
Total power
69 W - parameter defining the ability to deliver sufficient energy to receivers.
Number of outputs
2 independent power outputs.
Electronic protections
Short-circuit (SCP), Overload (OLP), Overvoltage, Deep battery discharge protection (UVP).
Mechanical protections
Tamper detection - opening of the enclosure and detachment from the surface.
Control and diagnostics
EPS FLT output (AC failure), APS FLT output (battery failure), LED signaling of AC/DC voltage presence, Dynamic battery test.
Efficiency
≤ 86% - high ratio of output power to power drawn from the grid.
Standards met
EN 50131-6:2017 (Grade 1-3), EN60839-11-2:2015+AC:2015 (Grade 1-4), Environmental class II.
Battery parameters
Space for 12V/40Ah battery; Maximum dimensions: 300 x 170 x 170 mm.
Operating conditions
Temperature: -10 °C ... 40 °C; Relative humidity: 20 % ... 90 %; IP44 ingress protection rating.
Contents
1x Buffer power supply in enclosure
1x Set of keys for the enclosure
1x User manual
Dimensions, Weight
Product dimensions: 185 x 405 x 315 mm (D x W x H)
Packaging dimensions: 200 x 410 x 330 mm (D x W x H)
Product weight: 8000 g
Weight with packaging: 8640 g
