- New

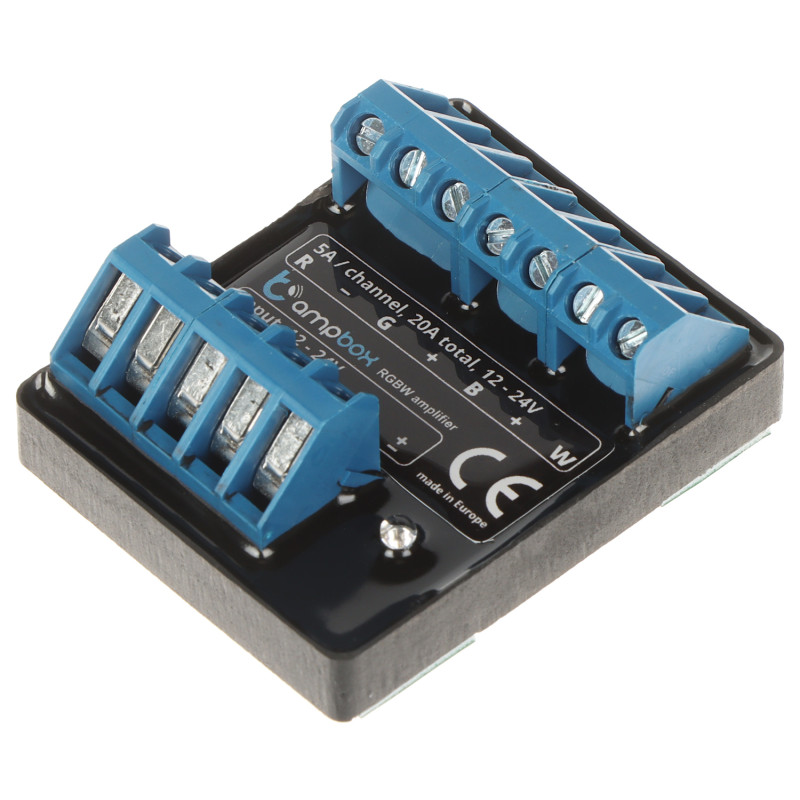

RGBW LED Amplifier 12-24V DC 20A 480W PWM Signal Repeater for CCT MONO LED Strips Optical Isolation BleBox AMPBOX/BLEBOX
zł156.00
Tax included
The AMPBOX/BLEBOX LED amplifier is a professional technical solution designed to expand high-power lighting systems. This device allows for the seamless connection of significant loads to existing LED controllers, which in practice enables the control of very long sections of LED strips without the risk of overloading the main controller. It is a key component in installations where the standard current capacity of the controller proves insufficient.
The advantages of this device are invaluable in modern Smart Home systems. AMPBOX offers full optical isolation, which ensures safety through galvanic separation of the input from the output, thereby protecting more expensive controllers from potential failures on the load side. Thanks to the use of advanced digital signal correction, the product eliminates distortion and ensures perfectly smooth dimming and color changing, maintaining the highest lighting quality throughout the circuit. The device supports a wide range of lighting types, including RGB, RGBW, CCT, and MONO strips, operating at voltages from 12V to 24V DC.
The compact housing made of durable plastic allows for easy installation in electrical boxes or aluminum profiles. High current efficiency of up to 5A per channel (20A total) makes AMPBOX one of the most powerful amplifiers in its size class. By choosing this product, you gain the certainty of stable lighting operation, no flickering effect, and the ability to create extensive lighting illuminations while maintaining full control over the system.
RGBW LED Amplifier 12-24V DC 20A 480W PWM Signal Repeater for CCT MONO LED Strips Optical Isolation
Model: BleBox AMPBOX/BLEBOX
EAN: 6931240017869 SKU: 931017865
- Allows increasing LED lighting power by amplifying the control signal
- Full optical isolation ensuring the safety of the master controller
- Support for RGB, RGBW, CCT, and MONO systems
- Very high current efficiency up to 20A (5A per channel)
- Digital correction and amplification of PWM signal for smooth operation
- Wide operating voltage range 12-24V DC
- Compact dimensions for easy installation in junction boxes and profiles
- Solid screw terminals ensuring a durable electrical connection
Description
The AMPBOX/BLEBOX LED amplifier is a professional technical solution designed to expand high-power lighting systems. This device allows for the seamless connection of significant loads to existing LED controllers, which in practice enables the control of very long sections of LED strips without the risk of overloading the main controller. It is a key component in installations where the standard current capacity of the controller proves insufficient.
The advantages of this device are invaluable in modern Smart Home systems. AMPBOX offers full optical isolation, which ensures safety through galvanic separation of the input from the output, thereby protecting more expensive controllers from potential failures on the load side. Thanks to the use of advanced digital signal correction, the product eliminates distortion and ensures perfectly smooth dimming and color changing, maintaining the highest lighting quality throughout the circuit. The device supports a wide range of lighting types, including RGB, RGBW, CCT, and MONO strips, operating at voltages from 12V to 24V DC.
The compact housing made of durable plastic allows for easy installation in electrical boxes or aluminum profiles. High current efficiency of up to 5A per channel (20A total) makes AMPBOX one of the most powerful amplifiers in its size class. By choosing this product, you gain the certainty of stable lighting operation, no flickering effect, and the ability to create extensive lighting illuminations while maintaining full control over the system.
Specification
Application
Compatibility with LED controllers (WLIGHTBOX-V3, WLIGHTBOX-S-V2, REFLECTIVE-SWITCH, TWILIGHT-SWITCH, PROXIDIMMER) and 12-24V LED strips (RGB/RGBW/CCT/MONO)
Rated voltage
12V ... 24V DC (direct current)
Maximum total load
480 W (at 24V DC)
Total maximum current
20 A (5 A for each of the 4 channels)
Number of inputs / outputs
4 control inputs / 4 amplified outputs
Connector type
Screw terminals (terminal block)
Signal amplification
Digital PWM signal amplification with correction function
Protections
Optical isolation (galvanic separation of inputs from outputs)
Housing
Made of high-quality plastic, black color
Ingress protection class
IP20 - protection against solid objects with a diameter of 12.5 mm and larger, no water protection
Operating temperature
Wide range from -20 °C to 50 °C
Efficiency
High energy efficiency with minimal heat loss
Communication
Wired device, does not have its own Wi-Fi module (controlled by an external signal)
wBox software
The device works with the BleBox ecosystem managed by the wBox application. The wBox application available for Android and iOS systems allows for comprehensive smart home management. It enables remote lighting control, creation of advanced time schedules, building lighting scenes, and integration with voice assistants such as Google Home or Amazon Alexa. The application interface is intuitive and allows for precise adjustment of colors and brightness of lighting connected via the AMPBOX amplifier.
Warranty
2 years (24 months)
Contents
1x LED Amplifier AMPBOX/BLEBOX
1x User and installation manual
Dimensions, Weight
Product dimensions: 18 x 48 x 39 mm (D x W x H)
Packaging dimensions: 22 x 55 x 45 mm (D x W x H)
Product weight: 36 g
Weight with packaging: 40 g
