- New

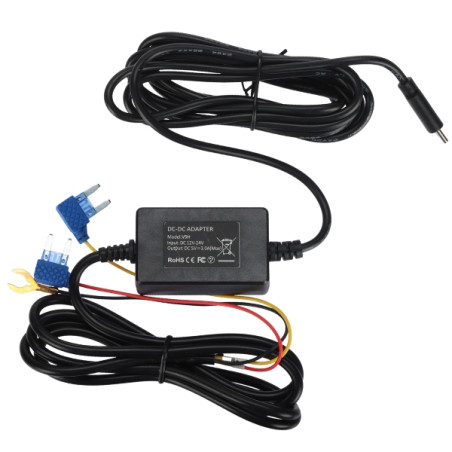

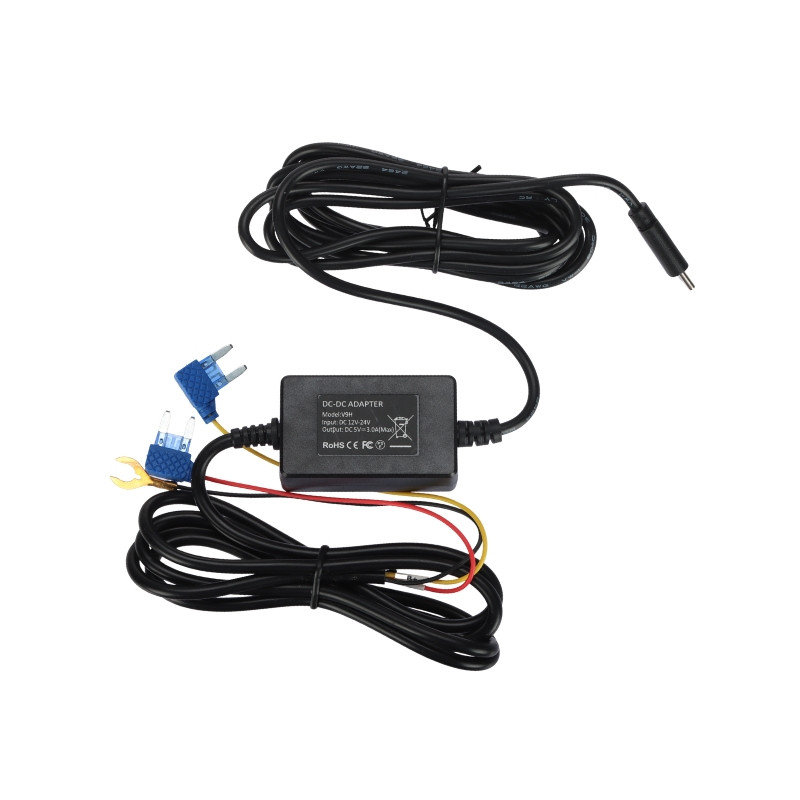

USB-C hardwire kit 24h parking mode ACC 12V 24V for dashcam DAHUA V9H_TYPE-C
zł147.60
Tax included
V9H_TYPE-C is an advanced power supply kit dedicated to dashcams, allowing them to be permanently connected directly to the vehicle's electrical system via the fuse box. It is an ideal solution for drivers who want to fully utilize the potential of their dashcam, especially regarding vehicle protection while parked.
The main advantage of the kit is support for 24h parking monitoring mode. By connecting to the ACC wire (ignition), the device intelligently recognizes the vehicle's ignition status, allowing the camera to automatically switch between continuous recording mode while driving and energy-saving parking mode after the engine is turned off. This ensures uninterrupted protection against vandalism or parking collisions without fear of battery discharge, thanks to built-in voltage control mechanisms.
The kit eliminates the need to occupy the car cigarette lighter socket, allowing for interior aesthetics to be maintained and cables to be hidden under the upholstery. Long cables (totaling over 3 meters) allow for easy routing even in large SUVs or delivery vehicles. The robust DC/DC converter design guarantees a stable 5V voltage at up to 3A, which is sufficient for the most demanding 4K UHD cameras. The product is fully compatible with modern devices equipped with a USB-C port, such as Dahua M1PRO or S5PRO models. By choosing this kit, you gain power reliability and professional installation of car accessories.
USB-C hardwire kit 24h parking mode ACC 12V 24V for dashcam
Model: DAHUA V9H_TYPE-C
EAN: 6931240029633 SKU: 931029634
- Enables constant camera power supply directly from the vehicle's electrical system
- Supports 24h parking mode via ACC wire
- Wide input voltage range 12V and 24V (passenger and commercial vehicles)
- Efficient USB-C output with up to 3A current
- Long cables for easy hidden installation in the vehicle
- Integrated DC/DC step-down converter
- Includes fuse taps for easy connection to the fuse box
- Aesthetic solution that frees up the cigarette lighter socket
Description
V9H_TYPE-C is an advanced power supply kit dedicated to dashcams, allowing them to be permanently connected directly to the vehicle's electrical system via the fuse box. It is an ideal solution for drivers who want to fully utilize the potential of their dashcam, especially regarding vehicle protection while parked.
The main advantage of the kit is support for 24h parking monitoring mode. By connecting to the ACC wire (ignition), the device intelligently recognizes the vehicle's ignition status, allowing the camera to automatically switch between continuous recording mode while driving and energy-saving parking mode after the engine is turned off. This ensures uninterrupted protection against vandalism or parking collisions without fear of battery discharge, thanks to built-in voltage control mechanisms.
The kit eliminates the need to occupy the car cigarette lighter socket, allowing for interior aesthetics to be maintained and cables to be hidden under the upholstery. Long cables (totaling over 3 meters) allow for easy routing even in large SUVs or delivery vehicles. The robust DC/DC converter design guarantees a stable 5V voltage at up to 3A, which is sufficient for the most demanding 4K UHD cameras. The product is fully compatible with modern devices equipped with a USB-C port, such as Dahua M1PRO or S5PRO models. By choosing this kit, you gain power reliability and professional installation of car accessories.
Specification
Device type
DC/DC step-down converter designed for operation in harsh automotive conditions.
Input voltage
12 V ... 24 V DC (Direct Current). Supports both 12V systems in passenger cars and 24V in commercial vehicles.
Output voltage
5 V DC – stabilized output voltage ensuring safe operation of the dashcam electronics.
Output current
Maximum 3 A – high current efficiency allows powering cameras with high power consumption, including models with GPS and Wi-Fi modules.
Rated power
Maximum 15 W – parameter defining the power supply's ability to deliver sufficient energy to the device.
Output connector
USB-C (Type-C) – modern, 24-pin symmetrical connector that replaces older microUSB standards, providing better power transmission.
Output cable length
1.90 m – section from the converter to the USB-C plug, allowing for easy power routing to the windshield area.
Input cable length
1.25 m – section from the converter to the mounting points (battery connector, fuse taps).
Mounting interfaces
2x Fuse tap (for connection to car fuse slots), 1x Ring terminal (ground/chassis).
Purpose
Providing constant power for dashcams, eliminating cables from the cigarette lighter socket, and supporting parking surveillance functions.
Voltage regulation
No manual adjustment – the device has factory-set, safe operating parameters.
Compatibility
Dedicated to Dahua cameras (e.g., M1PRO, S5PRO) and other dashcams powered via USB-C port requiring an ACC signal.
Operating conditions
Device adapted for operation in a wide range of temperatures found inside vehicles.
Manufacturer / Brand
DAHUA – renowned manufacturer of security systems and consumer electronics.
Contents
1x V9H_TYPE-C power supply kit integrated with cabling
2x Fuse taps
1x User manual
Dimensions, Weight
Product dimensions: 16 x 55 x 34 mm (D x W x H)
Package dimensions: 50 x 160 x 85 mm (D x W x H)
Product weight: 106 g
Weight with packaging: 152 g
