- New

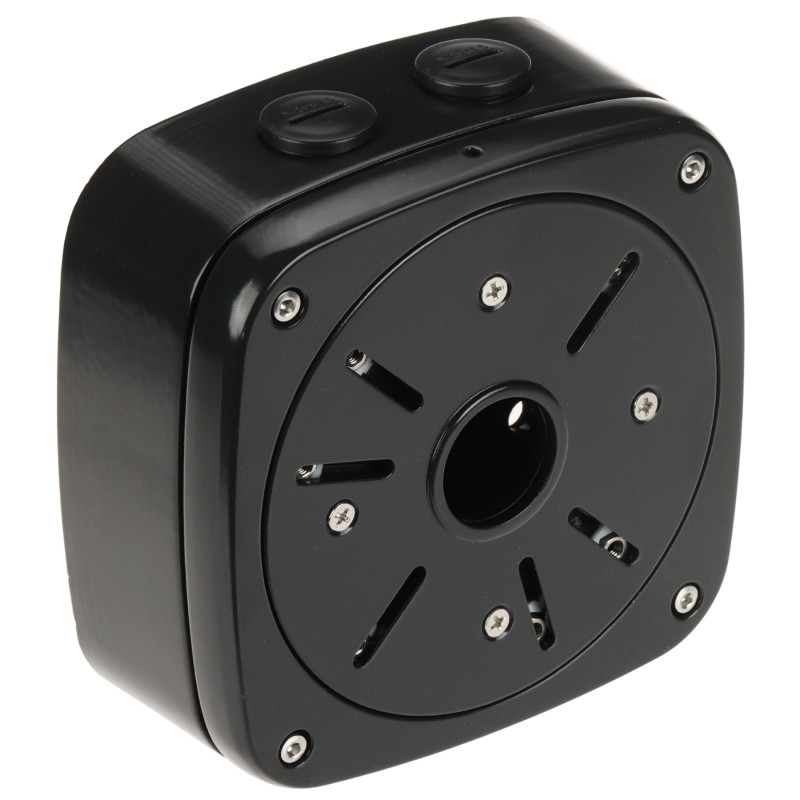

Mounting junction box for IP AHD surveillance cameras outdoor IP66 aluminum graphite BCS BCS-ATU-G
zł146.42
Tax included
BCS-ATU-G is a professional, universal mounting box designed for advanced CCTV systems. Made of high-quality aluminum alloy, it is characterized by exceptional durability and resistance to harsh weather conditions, which is confirmed by the high IP66 ingress protection rating. Thanks to its solid construction, this mount is ideal for installation on both walls and ceilings, offering installers great flexibility when designing security systems inside and outside buildings.
The main advantage of the BCS-ATU-G box is the ability to aesthetically and securely hide camera cables and connectors, which effectively protects them from moisture, dust, and potential tampering. The product features two dedicated cable glands and a standard G3/4" thread, which significantly facilitates integration with various conduit systems and cable glands. The mount is finished in an elegant graphite color that perfectly matches modern BCS camera housings, ensuring a professional look for the entire installation.
A maximum load capacity of 3 kg allows for stable mounting of even heavier bullet or dome cameras. The solid construction eliminates vibrations, which is crucial for maintaining high image quality in 4K and higher resolution surveillance systems. By choosing original BCS mounting accessories, you gain the certainty of full compatibility and the highest quality of workmanship. The BCS-ATU-G mounting box is not just a structural element, but above all a guarantee of the longevity of the entire surveillance installation. It is a solution dedicated to professionals who value installation speed, safety, and aesthetic finish. The product is covered by a full 2-year manufacturer's warranty.
Mounting junction box for IP AHD surveillance cameras outdoor IP66 aluminum graphite
Model: BCS BCS-ATU-G
EAN: 6931240026649 SKU: 931026642
- Universal mounting box dedicated to BCS brand cameras
- Made of high-quality, durable aluminum alloy
- High IP66 ingress protection rating ensuring protection against water and dust
- Two cable glands for easy cable management
- Standard G3/4" (25 mm) thread for conduit systems
- Wall and ceiling mounting capability
- Maximum structural load capacity up to 3 kg
- Elegant graphite finish
- Provides aesthetic concealment of camera connectors and cables
- Resistance to corrosion and variable weather conditions
Description
BCS-ATU-G is a professional, universal mounting box designed for advanced CCTV systems. Made of high-quality aluminum alloy, it is characterized by exceptional durability and resistance to harsh weather conditions, which is confirmed by the high IP66 ingress protection rating. Thanks to its solid construction, this mount is ideal for installation on both walls and ceilings, offering installers great flexibility when designing security systems inside and outside buildings.
The main advantage of the BCS-ATU-G box is the ability to aesthetically and securely hide camera cables and connectors, which effectively protects them from moisture, dust, and potential tampering. The product features two dedicated cable glands and a standard G3/4" thread, which significantly facilitates integration with various conduit systems and cable glands. The mount is finished in an elegant graphite color that perfectly matches modern BCS camera housings, ensuring a professional look for the entire installation.
A maximum load capacity of 3 kg allows for stable mounting of even heavier bullet or dome cameras. The solid construction eliminates vibrations, which is crucial for maintaining high image quality in 4K and higher resolution surveillance systems. By choosing original BCS mounting accessories, you gain the certainty of full compatibility and the highest quality of workmanship. The BCS-ATU-G mounting box is not just a structural element, but above all a guarantee of the longevity of the entire surveillance installation. It is a solution dedicated to professionals who value installation speed, safety, and aesthetic finish. The product is covered by a full 2-year manufacturer's warranty.
Specification
Purpose and Compatibility
Product dedicated to mounting BCS brand cameras. It ensures full mechanical compatibility with selected manufacturer models, allowing for stable seating of the device on flat surfaces.
Material and Construction
Housing made entirely of cast aluminum, which guarantees high rigidity, resistance to mechanical damage, and a lightweight structure while maintaining high strength.
Ingress Protection and Safety
IP66 protection rating. This means complete dust-tightness and protection against powerful water jets from any direction, which allows for safe use of the box outdoors.
Mounting Parameters
Mount designed for installation on vertical walls and ceilings. The distance from the mounting surface is 60 mm, which allows for free arrangement of excess cable inside the box.
Cable Management
Equipped with two cable entry holes. The design allows for cable entry both from the rear (through the mounting surface) and from the side of the box.
Threading Standards
A standard technical G3/4" thread (approx. 25 mm diameter) is used, which allows for direct connection with professional cable glands or rigid installation pipes.
Mechanical Load Capacity
The design has been tested for a static load of up to 3 kg, which is more than sufficient for most compact and dome cameras available on the market.
Surface Finish
Surface powder-coated in Dark Grey. This coating is resistant to UV radiation, which prevents color fading under the sun and protects against corrosion.
Operating Conditions
Product adapted for continuous operation in extreme outdoor conditions. The material does not deform under temperature changes, ensuring the stability of the camera's optical axis.
External Dimensions
Width: 143 mm, Height: 143 mm, Depth (distance): 60 mm. Compact dimensions allow for discreet installation while maintaining a large internal space.
Weight and Logistics
The net weight of the product is 850 grams. The solid mass indicates the thickness of the aluminum walls and the robustness of the workmanship, which translates into vibration damping.
Warranty and Reliability
The manufacturer provides a 2-year warranty on the component. The lack of moving parts makes the product virtually maintenance-free throughout the entire service life of the surveillance system.
Professional Application
Ideal solution for installations in industrial facilities, warehouses, parking lots, and public buildings where the highest aesthetics and durability are required.
Installation Safety
The box protects RJ45 and BNC connectors from oxidation and short circuits caused by moisture, which is the most common cause of video surveillance system failures.
Software
The BCS-ATU-G product is a passive mechanical element (mounting bracket) and does not have built-in software, a digital interface, or electronic modules. It does not require the installation of mobile applications, configuration via a web browser, or firmware updates. Its role is limited to physically supporting the camera and protecting its wiring. Any intelligent functions, cloud access, or P2P support depend solely on the model of the camera mounted on this bracket.
Contents
1x BCS-ATU-G mounting box
1x Set of mounting screws and wall plugs
1x Rubber gasket for the camera
1x Mounting template
Dimensions, Weight
Product dimensions: 60 x 143 x 143 mm (Depth x Width x Height)
Packaging dimensions: 70 x 185 x 150 mm (Depth x Width x Height)
Product weight: 850 g
Weight with packaging: 984 g
