- New

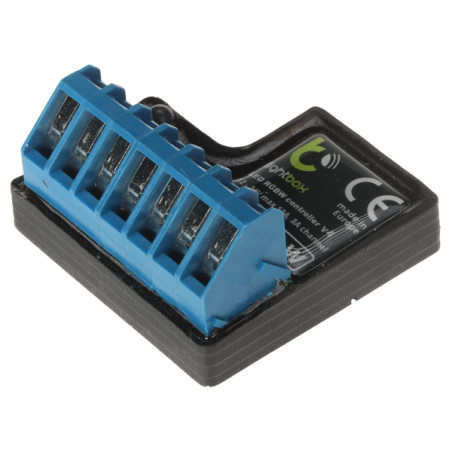

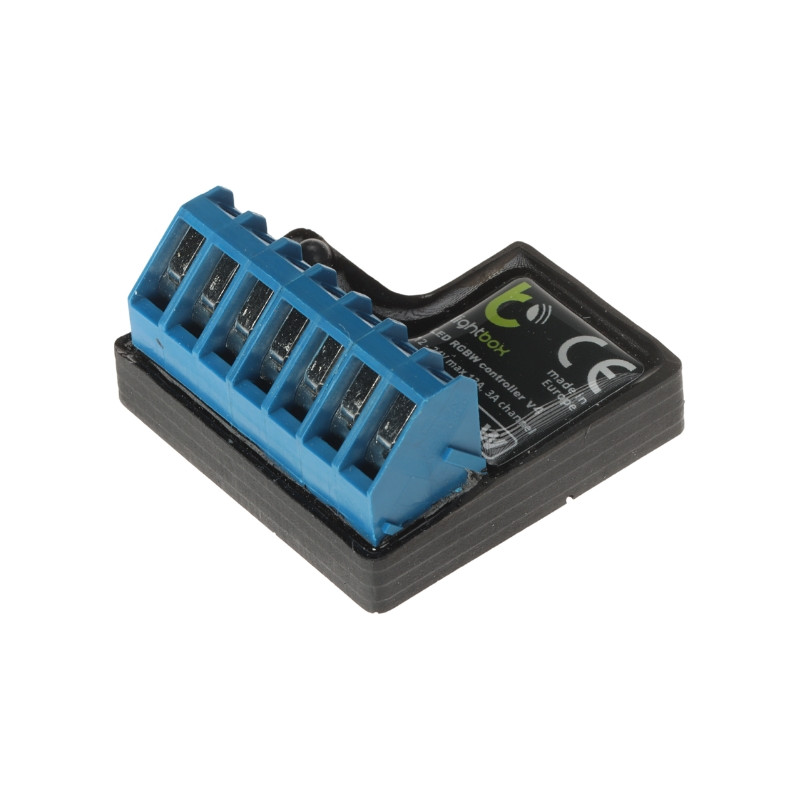

Intelligent Bluetooth BLE 12-24V DC LED Lighting Controller BleBox LIGHTBOX/BLEBOX
zł215.03
Tax included
The LIGHTBOX/BLEBOX v4 is an advanced, intelligent LED lighting controller by BleBox, designed for modern home automation systems. The device enables precise control of RGB, RGBW, and single-color (MONO) LED strips via Bluetooth technology. With support for a voltage range of 12-24V DC and four independent output channels, the controller offers users immense flexibility in interior lighting design. The maximum total load of the device is 288W, allowing for the operation of extensive lighting installations.
The advantages of the controller primarily include intuitive operation via the free wBox mobile application, available for Android and iOS systems. The application allows for smooth adjustment of colors, color temperature, brightness, and the selection of predefined lighting effects, which can be further modified. The compact design of the controller (dimensions 39x37x21 mm) makes it extremely easy to install – it can be easily placed in a standard junction box or directly next to the LED strip. The device is characterized by high-quality workmanship, durability, and reliability, which is confirmed by a two-year manufacturer's warranty. It is an ideal solution for those who value comfort, modern design, and the ability to personalize lighting in their home or office.
Intelligent Bluetooth BLE 12-24V DC LED Lighting Controller
Model: BleBox LIGHTBOX/BLEBOX
EAN: 6931240093795 SKU: 931093794
- LED lighting control (RGB, RGBW, MONO) via Bluetooth
- 12-24V DC voltage support
- 4 output channels with a maximum current of 3A per channel
- Smooth adjustment of color, brightness, and color temperature
- Access via the free wBox application (Android/iOS)
- Predefined and editable lighting effects
- Compact dimensions allowing for installation in a junction box
- High efficiency – total load up to 288W
Description
The LIGHTBOX/BLEBOX v4 is an advanced, intelligent LED lighting controller by BleBox, designed for modern home automation systems. The device enables precise control of RGB, RGBW, and single-color (MONO) LED strips via Bluetooth technology. With support for a voltage range of 12-24V DC and four independent output channels, the controller offers users immense flexibility in interior lighting design. The maximum total load of the device is 288W, allowing for the operation of extensive lighting installations.
The advantages of the controller primarily include intuitive operation via the free wBox mobile application, available for Android and iOS systems. The application allows for smooth adjustment of colors, color temperature, brightness, and the selection of predefined lighting effects, which can be further modified. The compact design of the controller (dimensions 39x37x21 mm) makes it extremely easy to install – it can be easily placed in a standard junction box or directly next to the LED strip. The device is characterized by high-quality workmanship, durability, and reliability, which is confirmed by a two-year manufacturer's warranty. It is an ideal solution for those who value comfort, modern design, and the ability to personalize lighting in their home or office.
Specification
Application
Compatibility with LED lighting - LED strips (RGB/RGBW/MONO) 12-24V
Rated voltage
12 ... 24V DC (direct current)
Maximum total load
288 W
Total maximum current
12 A (3 A / Channel)
Number of outputs
4
Connector type
Screw terminals
Wireless communication
Bluetooth - BLE 4.2
Software
The device works with the free wBox application, available for Android and iOS platforms. The application serves as a lighting management center, offering advanced control functions. The user can smoothly change colors (in the case of RGB/RGBW strips), adjust brightness, and the color temperature of the light. The application allows for the creation of advanced lighting scenarios, selection from many predefined dynamic effects, and their personalization. Thanks to the intuitive interface, the controller configuration is quick and simple, and Bluetooth communication ensures a stable connection with the mobile device within range.
Selected features
Control of color, color temperature, brightness, effect, and transition time allows for any interior arrangement. Predefined effects, effect modification. Operating modes: 1 x RGB (color), 1 x RGBW (color + white - brightness control), 1 x RGB (color) + 1 x MONO (single-color), 4 x MONO (single-color).
Housing
Plastic
Ingress protection rating
IP20
Color
Black
Operating temperature
-20 °C ... 50 °C
Warranty
2 years
Contents
1x LIGHTBOX/BLEBOX LED lighting controller
Dimensions, Weight
Product dimensions: 21 x 39 x 37 mm (D x W x H)
Packaging dimensions: 30 x 50 x 40 mm (D x W x H)
Product weight: 26 g
Weight with packaging: 30 g
