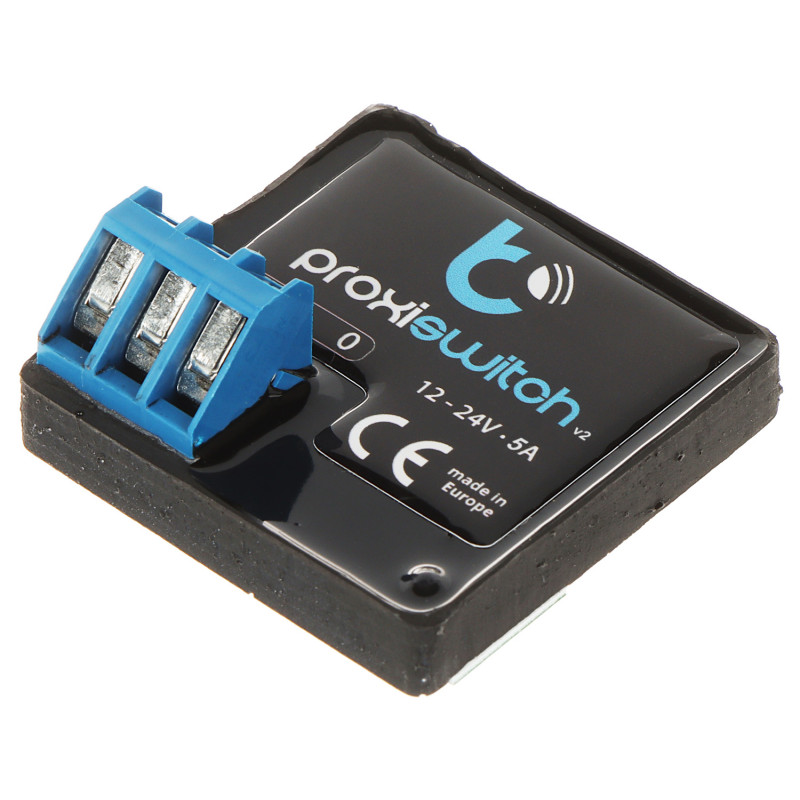

Intelligent Proximity Touch Switch 12-24V DC Furniture Lighting Controller BleBox PROXISWITCH-V2/BLEBOX
zł137.49
Tax included
PROXISWITCH-V2 is an advanced, intelligent proximity switch that revolutionizes the way you interact with lighting and electrical devices in your home. Thanks to capacitive technology, the device allows for the control of 12-24V DC receivers without the need for physical contact with the button. It is an ideal solution for places where hygiene or aesthetics play a key role, such as kitchens, bathrooms, or modern offices. The switch can be completely hidden under furniture countertops, ceramic tiles, or glass surfaces, allowing for the preservation of the interior's intact design.
The main advantages of the product are primarily its high load capacity of up to 120W, which allows for the control of long sections of LED strips. The device offers four operating modes, including bistable and monostable, making it extremely versatile. The automatic calibration function makes installation quick and hassle-free, and the sensor automatically adjusts to the thickness and type of surface under which it is mounted. Additionally, PROXISWITCH-V2 can serve as a physical input button for other BleBox controllers from the wBox series, integrating traditional control with a smart home. A solid plastic housing and a wide operating temperature range guarantee reliability for years. By choosing this product, you gain not only convenience but also a modern accent in your surroundings that will surely impress guests. Thanks to contactless operation, the device is also extremely safe to use with wet hands, which is invaluable in kitchen conditions.
Intelligent Proximity Touch Switch 12-24V DC Furniture Lighting Controller
Model: BleBox PROXISWITCH-V2/BLEBOX
EAN: 6931240054413 SKU: 931054418
- Contactless (proximity) or touch control
- Wide voltage range support 12-24V DC
- High current capacity up to 5A (maximum 120W)
- Ability to completely hide the sensor under non-conductive materials
- Four configurable operating modes (bistable, monostable NO/NC)
- Automatic adaptive calibration function
- Built-in LED indicating operation and detection
- Compact housing for easy installation in tight spaces
Description
PROXISWITCH-V2 is an advanced, intelligent proximity switch that revolutionizes the way you interact with lighting and electrical devices in your home. Thanks to capacitive technology, the device allows for the control of 12-24V DC receivers without the need for physical contact with the button. It is an ideal solution for places where hygiene or aesthetics play a key role, such as kitchens, bathrooms, or modern offices. The switch can be completely hidden under furniture countertops, ceramic tiles, or glass surfaces, allowing for the preservation of the interior's intact design.
The main advantages of the product are primarily its high load capacity of up to 120W, which allows for the control of long sections of LED strips. The device offers four operating modes, including bistable and monostable, making it extremely versatile. The automatic calibration function makes installation quick and hassle-free, and the sensor automatically adjusts to the thickness and type of surface under which it is mounted. Additionally, PROXISWITCH-V2 can serve as a physical input button for other BleBox controllers from the wBox series, integrating traditional control with a smart home. A solid plastic housing and a wide operating temperature range guarantee reliability for years. By choosing this product, you gain not only convenience but also a modern accent in your surroundings that will surely impress guests. Thanks to contactless operation, the device is also extremely safe to use with wet hands, which is invaluable in kitchen conditions.
Specification
Application
Contactless switching of electrical devices on and off, LED lighting control, control button for automation modules
Rated voltage
12 ... 24 V DC - stabilized DC voltage
Maximum total load
120 W at 24V DC / 60 W at 12V DC
Total maximum current
5 A - high current efficiency
Number of inputs / outputs
0 inputs / 1 open collector control output
Connector type
Solid screw terminals for easy installation of wires with a cross-section of up to 1.5mm2
Operating modes
Bistable (on/off), Bistable with state memory after power loss, Monostable NO (normally open), Monostable NC (normally closed)
Detection range
Up to 3 cm through non-conductive materials (wood, glass, plastic, stone)
Trigger time
Maximum 8 seconds to ensure stable operation
Calibration
Automatic adaptive calibration after power-up, adjusting sensitivity to surface thickness
Signaling
Built-in LED indicating device status and proximity detection
Housing
Made of high-quality plastic, black color
Ingress protection class
IP20 - designed for indoor installation
Operating temperature
Wide range from -20 °C to 50 °C
Software and Ecosystem
The device works with the BleBox ecosystem. Although the switch itself operates locally, it can be used as a control element for other Wi-Fi modules managed by the wBox application. The wBox application available for Android and iOS systems allows for the configuration of the entire smart home system, creating scenes and schedules. BleBox software is characterized by high security, no need for a central unit (each device is independent), and the ability to integrate with voice assistants such as Google Home or Amazon Alexa. The application interface is intuitive and fully localized, which facilitates daily use.
Contents
1x PROXISWITCH-V2 Switch
1x User manual
Dimensions, Weight
Product dimensions: 16 x 39 x 39 mm (D x W x H)
Packaging dimensions: 23 x 55 x 45 mm (D x W x H)
Product weight: 18 g
Weight with packaging: 22 g
