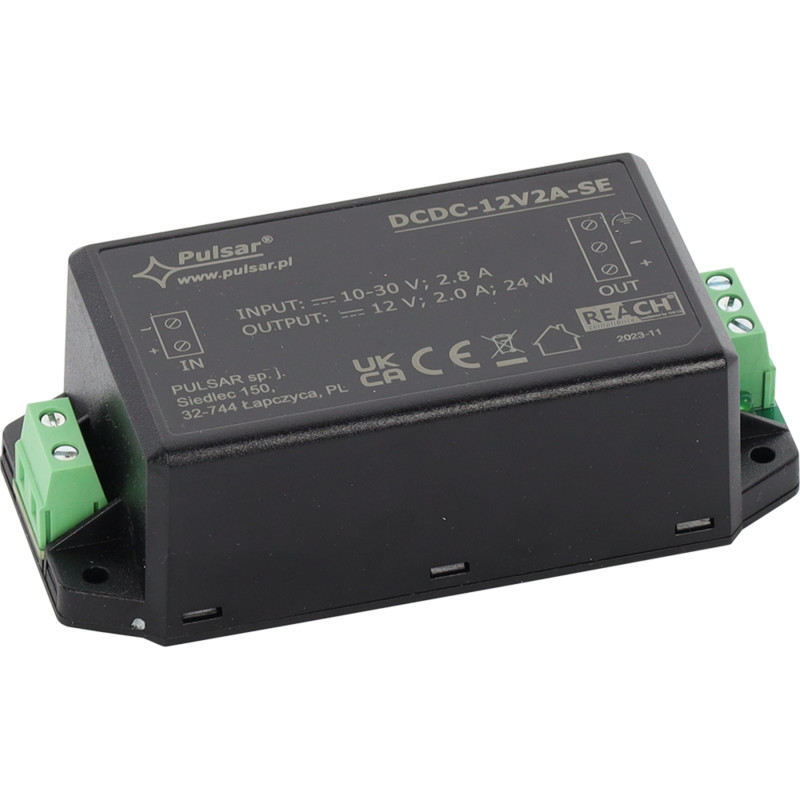

DC/DC Buck-Boost Converter 12V 2A 24W Switching Power Supply Module PULSAR DCDC-12V2A-SE
zł173.95
Tax included
The professional DCDC-12V2A-SE converter module by Pulsar is an advanced technical solution designed for voltage stabilization in demanding electronic systems. The device features a unique ability to simultaneously step down and step up the input voltage (SEPIC), which allows for a constant, stable 12V DC output voltage regardless of input fluctuations in the range from 10V to 30V.
The main advantage of this module is its versatility. It works perfectly in systems with buffer backup, where the battery voltage changes depending on its charge level. When the battery voltage drops below 12V, the converter automatically boosts it, and when it rises above 12V during charging, it steps it down to a safe level. As a result, connected devices with low voltage tolerance are always protected against failure.
The product offers high energy efficiency at 89%, which minimizes power loss and heat generation. Operational safety is guaranteed by a series of built-in protections, including short-circuit protection (SCP) and overload protection (OLP). The module is equipped with clear LED signaling indicating the presence of output voltage and solid cable terminals facilitating installation. The compact housing allows for easy installation in electrical boxes or dedicated system enclosures. It is a reliable component for any CCTV monitoring, alarm, or industrial automation system requiring precise 12V power supply.
DC/DC Buck-Boost Converter 12V 2A 24W Switching Power Supply Module
Model: PULSAR DCDC-12V2A-SE
EAN: 6931240059975 SKU: 931059973
- Wide input voltage range from 10V to 30V DC
- Stable 12V DC output voltage regardless of input fluctuations
- High energy efficiency reaching 89%
- Maximum output current up to 2A (24W power)
- Integrated short-circuit protection (SCP)
- Integrated overload protection (OLP)
- Optical operating status indication via LED
- Convenient screw terminals (cable clamps) for input and output
- Capable of operation with zero voltage difference between input and output
- Product from the renowned Polish manufacturer Pulsar
Description
The professional DCDC-12V2A-SE converter module by Pulsar is an advanced technical solution designed for voltage stabilization in demanding electronic systems. The device features a unique ability to simultaneously step down and step up the input voltage (SEPIC), which allows for a constant, stable 12V DC output voltage regardless of input fluctuations in the range from 10V to 30V.
The main advantage of this module is its versatility. It works perfectly in systems with buffer backup, where the battery voltage changes depending on its charge level. When the battery voltage drops below 12V, the converter automatically boosts it, and when it rises above 12V during charging, it steps it down to a safe level. As a result, connected devices with low voltage tolerance are always protected against failure.
The product offers high energy efficiency at 89%, which minimizes power loss and heat generation. Operational safety is guaranteed by a series of built-in protections, including short-circuit protection (SCP) and overload protection (OLP). The module is equipped with clear LED signaling indicating the presence of output voltage and solid cable terminals facilitating installation. The compact housing allows for easy installation in electrical boxes or dedicated system enclosures. It is a reliable component for any CCTV monitoring, alarm, or industrial automation system requiring precise 12V power supply.
Specification
Device type
SEPIC type DC/DC switching converter module (step-down and step-up voltage)
Number of inputs / outputs
1 power input, 1 stabilized output
Supply voltage (input)
10V ... 30V DC - wide range allowing operation in 12V and 24V installations
Output voltage
12V DC - electronically stabilized
Output current
Maximum 2A - provides efficient power for cameras and sensors
Output power
Maximum 24W - optimal for most low-voltage devices
Efficiency
89% - high efficiency reducing module heating
Minimum voltage difference
0V - device operates correctly even when input voltage is equal to output
Short-circuit protection (SCP)
Yes - electronic output disconnection in case of a short circuit to protect the module
Overload protection (OLP)
Yes - protection against current draw exceeding permissible parameters
LED signaling
Red LED indicating the presence of voltage at the converter output
Connector type
Screw cable terminals (input, output, ground) supporting standard installation wires
Application
Alarm systems, CCTV monitoring, buffer systems with batteries, devices with narrow voltage tolerance
Operating conditions and warranty
Device intended for indoor installation, covered by a 2-year manufacturer warranty
Contents
1x DCDC-12V2A-SE Converter
1x User manual
Dimensions, Weight
Product dimensions: 35 x 110 x 53 mm (D x W x H)
Package dimensions: 40 x 115 x 60 mm (D x W x H)
Product weight: 110 g
Weight with packaging: 122 g
