- New

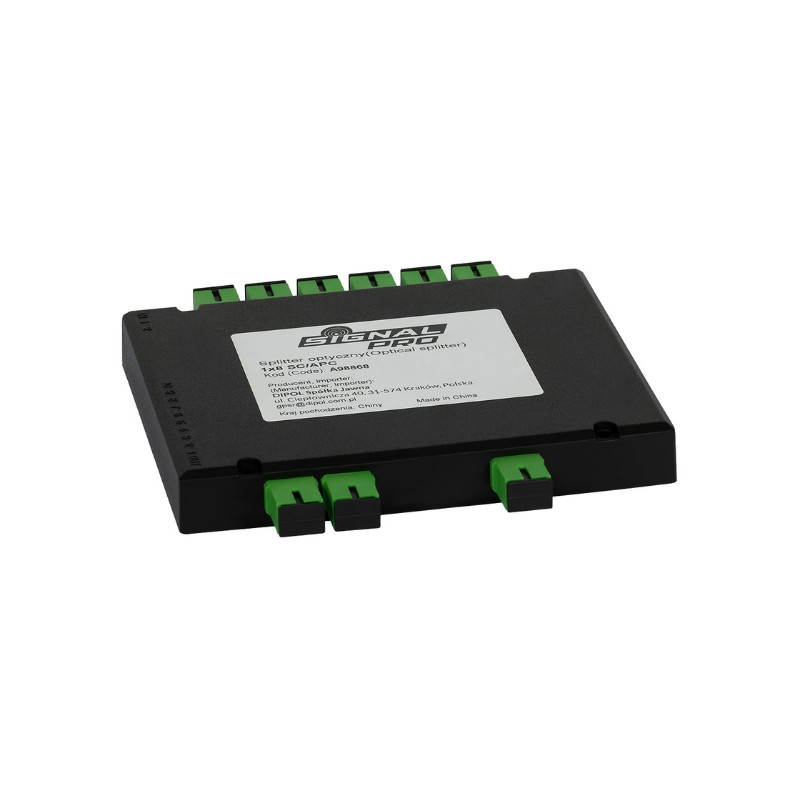

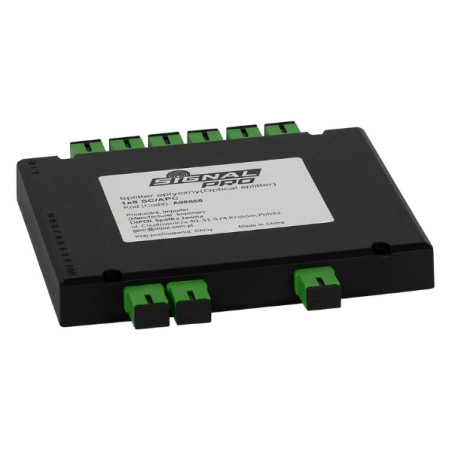

Signal Pro 1x8 SC/APC Optical Splitter SIGNAL PRO SO-1/8-SC/APC-SIG
zł249.08
Tax included
The SO-1/8-SC/APC-SIG optical splitter is a high-quality passive device used for the precise splitting of an optical signal into 8 independent transmission paths. The product is designed for modern fiber optic installations, particularly in television signal distribution systems based on the SIGNAL PRO series devices. Thanks to the use of standard SC/APC connectors, the splitter ensures low signal attenuation and high connection stability, which is crucial for maintaining data transmission quality in FTTH networks.
One of the main advantages of this model is its well-thought-out BOX-type design. The housing is made of durable plastic, which allows for easy and quick installation in standard RTV cabinets without the need for additional fiber optic patch panels or external adapters. This solution significantly reduces installation time and allows for maintaining aesthetics and order inside the distribution cabinet. The device operates in a wide transmission band from 1260 to 1650 nm, making it a universal solution for various optical transmission standards. Maximum attenuation of 10.5 dB guarantees effective signal distribution while maintaining optimal network performance parameters. It is a reliable infrastructure element that will work well in both professional operator installations and advanced home systems.
Signal Pro 1x8 SC/APC Optical Splitter
Model: SIGNAL PRO SO-1/8-SC/APC-SIG
EAN: 6931240041444 SKU: 931041449
- Optical signal splitting into 8 paths
- SC/APC simplex connectors
- Wide operating band 1260-1650 nm
- BOX-type housing for easy installation
- G.657A1 optical fiber
- Low signal attenuation (max 10.5 dB)
- Ideal for SIGNAL PRO TV distribution systems
Description
The SO-1/8-SC/APC-SIG optical splitter is a high-quality passive device used for the precise splitting of an optical signal into 8 independent transmission paths. The product is designed for modern fiber optic installations, particularly in television signal distribution systems based on the SIGNAL PRO series devices. Thanks to the use of standard SC/APC connectors, the splitter ensures low signal attenuation and high connection stability, which is crucial for maintaining data transmission quality in FTTH networks.
One of the main advantages of this model is its well-thought-out BOX-type design. The housing is made of durable plastic, which allows for easy and quick installation in standard RTV cabinets without the need for additional fiber optic patch panels or external adapters. This solution significantly reduces installation time and allows for maintaining aesthetics and order inside the distribution cabinet. The device operates in a wide transmission band from 1260 to 1650 nm, making it a universal solution for various optical transmission standards. Maximum attenuation of 10.5 dB guarantees effective signal distribution while maintaining optimal network performance parameters. It is a reliable infrastructure element that will work well in both professional operator installations and advanced home systems.
Specification
Connector type
SC/APC simplex
Construction
single-mode
Optical fiber type
G.657A1 - fiber with increased resistance to bending, ensuring low attenuation even with tight cable routing.
Number of inputs
1
Number of outputs
8
Attenuation
max. 10.5 dB - parameter defining the maximum optical signal power loss introduced by the splitter.
Operating band
1260 ... 1650 nm - wavelength range supported by the device, covering standard transmission windows.
Housing type
Plastic, BOX - compact housing allowing installation in RTV cabinets without additional accessories.
Manufacturer / Brand
SIGNAL PRO
Warranty
2 years
Contents
1x SO-1/8-SC/APC-SIG Optical Splitter
Dimensions, Weight
Product dimensions: 18 x 160 x 130 mm (D x W x H)
Packaging dimensions: 20 x 140 x 150 mm (D x W x H)
Product weight: 144 g
Weight with packaging: 170 g
