- New
7 inch touch screen hands-free video intercom indoor station for Vidos Duo systems VIDOS M1023W-2
zł504.64
Tax included

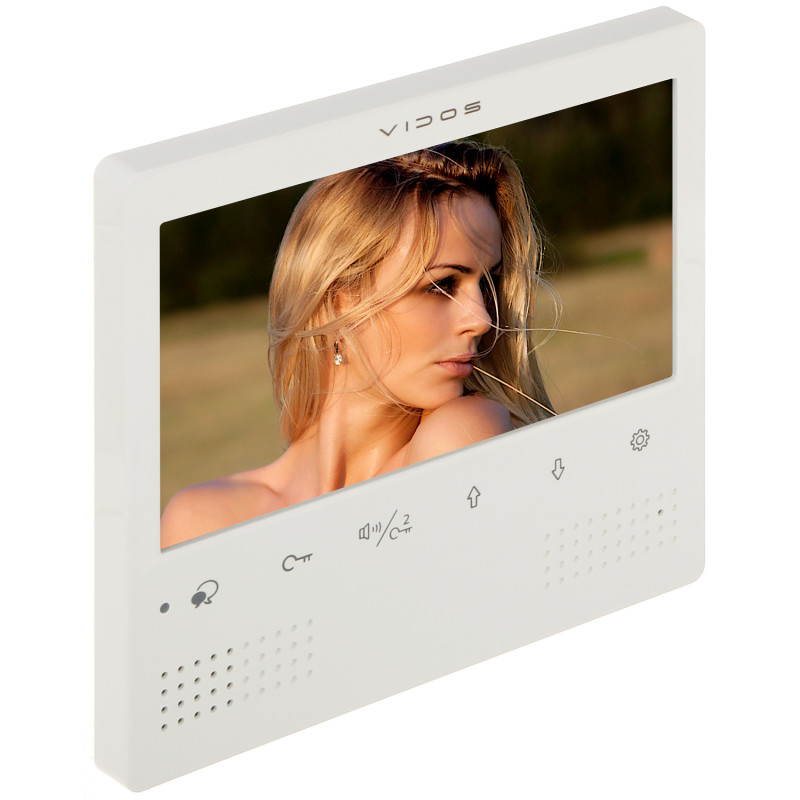

The M1023W-2 indoor station is a modern video intercom monitor designed for use in the advanced Vidos Duo system. The device is equipped with a clear, 7-inch TFT-LCD touch screen with a resolution of 800 x 480 pixels, which ensures high image quality and intuitive operation. The monitor features an ultra-slim design, making it a perfect fit for any interior. It is a hands-free device, which eliminates the need for a handset, increasing daily comfort.
The Vidos Duo system is based on two-wire non-polarized technology, which significantly simplifies the Plug & Play installation process. The monitor offers extensive expansion capabilities, allowing for the connection of up to 3 additional indoor stations or uniphones within a single premises. The user has access to 20 different ringtones and a Do Not Disturb function, which allows for muting the device for a specified time. The panel enables control of an electric strike and an automatic gate, as well as support for up to 4 door stations and 4 additional CCTV cameras (M-SM4 and M-K4 modules required). Thanks to the built-in microphone and speakers, two-way communication is clear and crisp. The device also features internal and external intercom functions and the ability to forward calls, making it an ideal solution for single-family homes and larger multi-family systems.
7 inch touch screen hands-free video intercom indoor station for Vidos Duo systems
Model: VIDOS M1023W-2
EAN: 6931240074763 SKU: 931074768
- 7-inch TFT-LCD touch screen
- Two-wire non-polarized system (Plug & Play)
- Ultra-slim hands-free design
- Support for up to 4 door stations and 4 CCTV cameras
- Intercom and call forwarding function
- Do Not Disturb mode with 20 ringtones
- Electric strike and automatic gate control
Description
The M1023W-2 indoor station is a modern video intercom monitor designed for use in the advanced Vidos Duo system. The device is equipped with a clear, 7-inch TFT-LCD touch screen with a resolution of 800 x 480 pixels, which ensures high image quality and intuitive operation. The monitor features an ultra-slim design, making it a perfect fit for any interior. It is a hands-free device, which eliminates the need for a handset, increasing daily comfort.
The Vidos Duo system is based on two-wire non-polarized technology, which significantly simplifies the Plug & Play installation process. The monitor offers extensive expansion capabilities, allowing for the connection of up to 3 additional indoor stations or uniphones within a single premises. The user has access to 20 different ringtones and a Do Not Disturb function, which allows for muting the device for a specified time. The panel enables control of an electric strike and an automatic gate, as well as support for up to 4 door stations and 4 additional CCTV cameras (M-SM4 and M-K4 modules required). Thanks to the built-in microphone and speakers, two-way communication is clear and crisp. The device also features internal and external intercom functions and the ability to forward calls, making it an ideal solution for single-family homes and larger multi-family systems.
Specification
Compatibility
VIDOS DUO
Screen
7 inches, color TFT-LCD matrix, touch screen
Resolution
800 x 480 pixels
Selected features
2-wire non-polarized wiring, Plug & Play, ultra-slim hands-free housing, backlit touch panel, built-in microphone and speakers, two-way communication, expandable by 3 additional stations/uniphones, Do Not Disturb mode, 20 ringtones, support for up to 4 door stations (M-SM4 module), support for up to 4 CCTV cameras (M-K4 module), electric strike and gate control, internal and external intercom, call forwarding, lighting control (B5 module), OSD on-screen menu, ID address configuration via switch.
Software and interface
The device has a built-in OSD (On-Screen Display) menu, which allows for full configuration of the monitor's operating parameters. The user interface is fully touch-based, allowing for quick management of functions such as: camera image preview, wicket opening, automatic gate control, or ringtone configuration. The system supports advanced intercom functions, enabling addressed calls between indoor stations and call forwarding. System configuration, including ID addressing, is performed using physical switches, which ensures setting stability. The menu is available in many languages, including Polish, which significantly facilitates operation and personalization of the device by the end user.
Power supply
20V DC ... 28V DC
Power consumption
0.2W (standby mode), 6W (operation)
Housing
Plastic
Color
White
Operating temperature
0 °C ... 40 °C
Supported languages
Polish, English, French, Spanish, German, Russian, Italian
Manufacturer / Brand
VIDOS
Warranty
3 years
Contents
1x M1023W-2 indoor station
Mounting elements
Dimensions, Weight
Product dimensions: 21 x 173 x 161 mm (D x W x H)
Package dimensions: 40 x 245 x 165 mm (D x W x H)
Product weight: 370 g
Weight with packaging: 492 g
