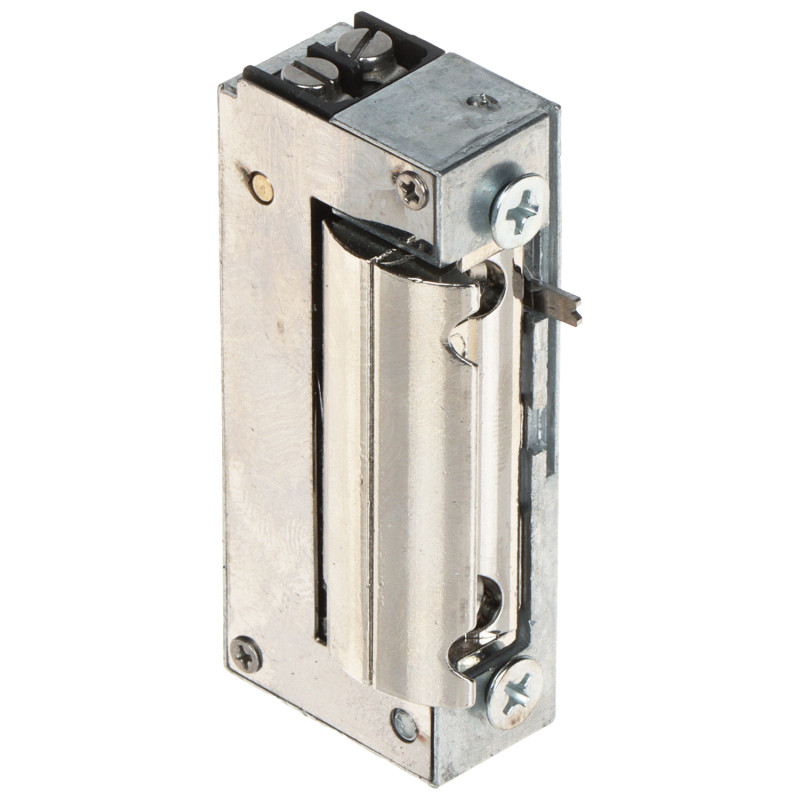

Narrow electric strike with memory and switch XS12UPW Hartte Bira symmetrical for left and right doors 12V AC/DC BIRA XS12UPW
zł170.06
Tax included
The Hartte XS series electric strike is a modern solution dedicated to access control systems and intercom installations. The XS12UPW model stands out with its extremely narrow design, measuring only 16.2 mm in width, which allows for trouble-free installation in very narrow profiles and door frames where standard strikes cannot be used. The device is designed symmetrically, making it a universal solution for both left and right doors, eliminating errors during equipment selection.
The main advantage of this model is the integrated memory function and a mechanical switch (latch lock). The memory function allows the door to be opened after a short electrical impulse is applied – the strike remains unlocked until the passage is opened and closed once. This is extremely convenient in offices or multi-family buildings. Additionally, the mechanical switch allows for permanent unlocking of the bolt, which is useful during peak traffic hours.
The radial shape of the strike is another innovation – during operation, the moving element does not extend beyond the housing outline, which significantly reduces the need for deep cutting of the door frame. As a result, installation is faster, more aesthetic, and does not weaken the door structure. The robust construction guarantees resistance to pressure up to 3000N and a service life of 200,000 opening cycles. The product operates in a wide voltage range of 10-14V AC/DC, ensuring compatibility with most intercom power supplies available on the market. By choosing a Hartte electric strike, you are investing in safety, durability, and comfort of daily use.
Narrow electric strike with memory and switch XS12UPW Hartte Bira symmetrical for left and right doors 12V AC/DC
Model: BIRA XS12UPW
EAN: 6931240039328 SKU: 931039324
- Extremely narrow profile - only 16.2 mm wide
- Memory function - opens after a short impulse
- Mechanical switch - allows for permanent unlocking
- Symmetrical design - for left and right doors
- Radial strike - does not extend beyond the lock outline
- High mechanical strength up to 3000N
- Strike adjustment range of 3.5 mm
- Long service life - 200,000 operating cycles
- Wide power supply range 10-14V AC/DC
Description
The Hartte XS series electric strike is a modern solution dedicated to access control systems and intercom installations. The XS12UPW model stands out with its extremely narrow design, measuring only 16.2 mm in width, which allows for trouble-free installation in very narrow profiles and door frames where standard strikes cannot be used. The device is designed symmetrically, making it a universal solution for both left and right doors, eliminating errors during equipment selection.
The main advantage of this model is the integrated memory function and a mechanical switch (latch lock). The memory function allows the door to be opened after a short electrical impulse is applied – the strike remains unlocked until the passage is opened and closed once. This is extremely convenient in offices or multi-family buildings. Additionally, the mechanical switch allows for permanent unlocking of the bolt, which is useful during peak traffic hours.
The radial shape of the strike is another innovation – during operation, the moving element does not extend beyond the housing outline, which significantly reduces the need for deep cutting of the door frame. As a result, installation is faster, more aesthetic, and does not weaken the door structure. The robust construction guarantees resistance to pressure up to 3000N and a service life of 200,000 opening cycles. The product operates in a wide voltage range of 10-14V AC/DC, ensuring compatibility with most intercom power supplies available on the market. By choosing a Hartte electric strike, you are investing in safety, durability, and comfort of daily use.
Specification
Device type
Narrow symmetrical electric strike
Product series
Hartte XS Series
Rated voltage
10 V ... 14 V AC/DC
AC power consumption
480 mA @ 12V AC
DC power consumption
680 mA @ 12V DC
Opening direction
Universal (left door / right door)
Latch lock (switch)
Yes - possibility of permanent mechanical release of the bolt using a slider
Memory function
Yes - maintains unlocked state after impulse until the door is opened
Operating mode
NC (normally closed) - closed without power
Clearance adjustment
Adjustable strike in the range of 3.5 mm
Mechanical strength
Resistance to pressure up to 3000 N (approx. 300 kg)
Durability and tests
Tested for 200,000 cycles of correct operation
Electrical parameters
Coil resistance 17.6 Ohm
Housing construction
Narrow profile 16.2 mm, radial shape (does not extend beyond the lock outline)
Application
Access control systems, intercoms, video intercoms, narrow aluminum and PVC profiles
Warranty
24 months (2 years)
Software and control
The device is controlled by impulse or continuously via access control systems or exit buttons. It does not have a built-in TCP/IP stack, but it works with controllers such as Roger, Hikvision, or Dahua. The logic of the memory function is based on an internal latch mechanism that releases the physical lock after receiving an electrical charge. This mechanism is precisely calibrated to ensure repeatable operation even under slight door tension. Cooperation with AC power supplies allows for the characteristic buzzing sound, informing the user of the possibility to enter.
Contents
1x XS12UPW Electric strike
1x Installation manual
Dimensions, Weight
Product dimensions: 28 x 16 x 67 mm (D x W x H)
Package dimensions: 97 x 35 x 28 mm (D x W x H)
Product weight: 136 g
Weight with packaging: 142 g
