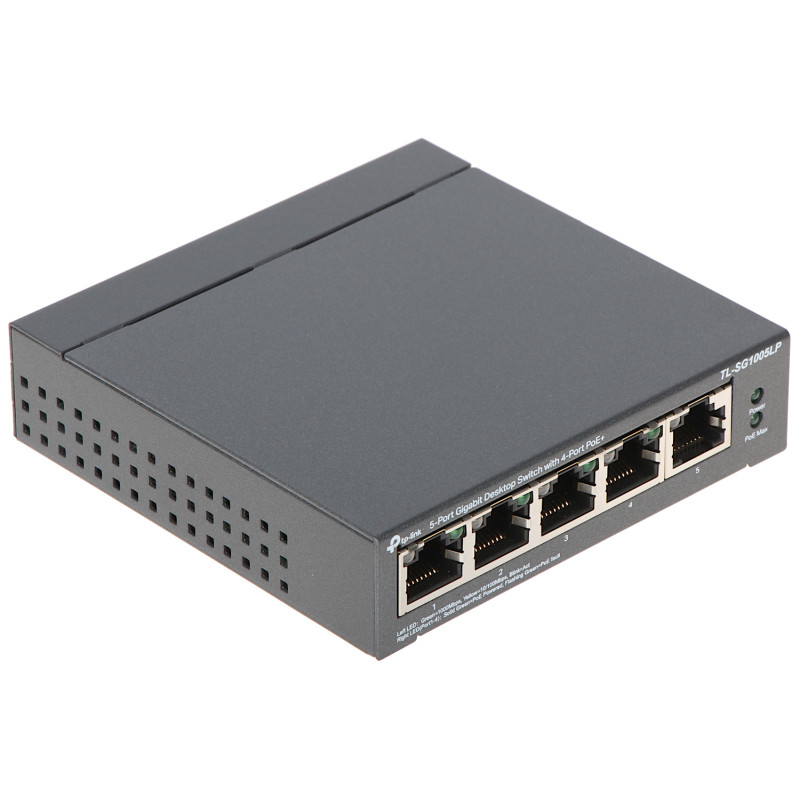

Network Switch 5 Port Gigabit Ethernet 4x PoE+ 40W Desktop RJ45 LAN TP-LINK TL-SG1005LP
zł191.68
Tax included
The TL-SG1005LP network switch is an advanced desktop solution, perfect for expanding home or office network infrastructure. The device offers 5 RJ45 ports with speeds of 10/100/1000 Mbps, 4 of which support PoE+ (Power over Ethernet) technology. This allows for simultaneous data transmission and power supply to devices such as IP cameras, access points, or VoIP phones using a single structured cable.
A key advantage of this model is the intelligent power management system with port prioritization. In situations where the total power consumption exceeds 40W, the system automatically cuts power to the lowest priority port, thereby protecting critical network components from overload. The priority hierarchy is set from port 1 to 4, allowing for stable operation of the most important devices in the system.
The switch is characterized by high reliability and transmission quality, which is essential in modern video surveillance systems and office environments requiring stable Internet access. The sturdy desktop housing and the lack of need for complex configuration (Plug and Play) make installation quick and hassle-free. Additionally, support for IEEE 802.3x Flow Control and traffic optimization via IGMP Snooping and QoS ensures smooth data transfer even under heavy network load.
Network Switch 5 Port Gigabit Ethernet 4x PoE+ 40W Desktop RJ45 LAN
Model: TP-LINK TL-SG1005LP
EAN: 6931240010723 SKU: 931010726
- 5 x 10/100/1000 Mbps RJ45 ports
- 4 x PoE+ ports compliant with 802.3af/at standard
- Total PoE power budget up to 40W
- Port prioritization function to protect the system from overload
- Auto-MDI/MDIX support on all ports
- Green Ethernet technology for energy saving
- 802.1p/DSCP QoS standard for smooth latency-sensitive traffic
- IGMP Snooping for optimized multicast transmission
- Durable metal desktop housing
- Plug and Play installation - no configuration required
Description
The TL-SG1005LP network switch is an advanced desktop solution, perfect for expanding home or office network infrastructure. The device offers 5 RJ45 ports with speeds of 10/100/1000 Mbps, 4 of which support PoE+ (Power over Ethernet) technology. This allows for simultaneous data transmission and power supply to devices such as IP cameras, access points, or VoIP phones using a single structured cable.
A key advantage of this model is the intelligent power management system with port prioritization. In situations where the total power consumption exceeds 40W, the system automatically cuts power to the lowest priority port, thereby protecting critical network components from overload. The priority hierarchy is set from port 1 to 4, allowing for stable operation of the most important devices in the system.
The switch is characterized by high reliability and transmission quality, which is essential in modern video surveillance systems and office environments requiring stable Internet access. The sturdy desktop housing and the lack of need for complex configuration (Plug and Play) make installation quick and hassle-free. Additionally, support for IEEE 802.3x Flow Control and traffic optimization via IGMP Snooping and QoS ensures smooth data transfer even under heavy network load.
Specification
Standards and protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1p
Network interface
5 x 10/100/1000 Mbps RJ45 ports, Auto-negotiation, Auto-MDI/MDIX
PoE ports
Ports 1-4 supporting 802.3af/at standard (PoE+)
PoE power budget
Maximum 30 W per port, 40 W total for the entire device
Switching capacity
10 Gbps (Backplane bandwidth)
MAC address table
2K entries with auto-learning and auto-aging
Packet forwarding rate
7.44 Mpps
Jumbo frames
16 KB
Transmission method
Store-and-Forward
Advanced features
IGMP Snooping (V1/V2/V3), QoS (802.1p/DSCP), Flow Control (802.3x), Port prioritization (Port-1 > Port-2 > Port-3 > Port-4)
LED indicators
Power, Link/Act, PoE Status, PoE Max
External power supply
External DC power adapter 53.5V / 0.81A (included)
Certifications
FCC, CE, RoHS
Operating conditions
Temperature: 0°C ~ 40°C, Humidity: 10% ~ 90% non-condensing
Software and logic
The device features built-in traffic and power management logic. The IGMP Snooping function automatically optimizes multicast video transmissions, which is crucial in IP surveillance systems, preventing network flooding with unnecessary data. The QoS (Quality of Service) system in the 802.1p/DSCP standard prioritizes latency-sensitive packets, such as voice or video, ensuring their smooth transmission even under heavy load on other ports. The intelligent PoE power management algorithm monitors power consumption in real-time and manages port hierarchy to prevent power supply failures.
Warranty
5 years (60 months)
Contents
1x Switch TL-SG1005LP
1x Power adapter
1x Installation guide
4x Rubber feet
Dimensions, Weight
Product dimensions: 98 x 100 x 25 mm (D x W x H)
Package dimensions: 130 x 195 x 120 mm (D x W x H)
Product weight: 230 g
Weight with packaging: 750 g
