- New

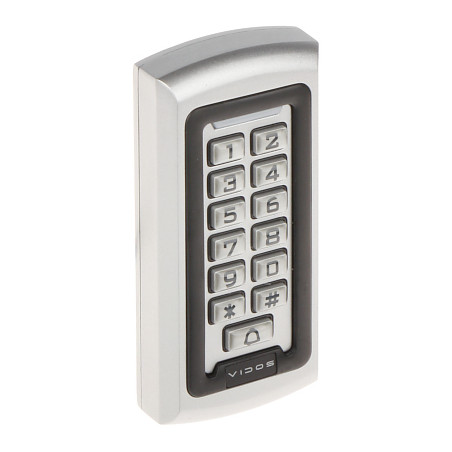

Keypad with Unique 125kHz RFID reader, vandal-proof metal housing, IP65 VIDOS ZS42-1
zł220.48
Tax included
The external, standalone ZS42-1 keypad by VIDOS is an advanced access control solution that combines an RFID proximity card reader and a numeric keypad. The device is designed for durability and security, confirmed by its vandal-proof metal housing with an IP65 rating, providing full protection against dust and water jets. Thanks to its standalone operation, the lock does not require connection to external controllers, which significantly simplifies installation and reduces system costs. The user can open the passage using a proximity card, a PIN code, or both methods simultaneously, which increases the security level. The device supports up to 2000 users, making it an ideal choice for single-family homes as well as small offices or service facilities. The keypad features blue backlighting, which facilitates operation at night or in poorly lit areas. The administrator has full control over the system, being able to easily add or remove cards and PIN codes directly from the keypad. The lock supports electric strikes, electromagnetic locks, and reversible bolts, offering NO/NC outputs and an additional alarm output. Built-in tamper protection detects attempts to detach the device from the surface or unauthorized opening of the housing, which provides an additional layer of security. The ZS42-1 is reliability, elegance, and a high standard of workmanship in one device.
Keypad with Unique 125kHz RFID reader, vandal-proof metal housing, IP65
Model: VIDOS ZS42-1
EAN: 6931240071427 SKU: 931071428
- Standalone device operation
- Support for Unique 125kHz cards
- Built-in keypad with blue backlight
- Capacity for up to 2000 users
- Vandal-proof metal housing
- IP65 ingress protection rating
- Support for electric strikes, electromagnetic locks, and reversible bolts
- Tamper protection (detachment and opening of the housing)
- Alarm output and NO/NC
Description
The external, standalone ZS42-1 keypad by VIDOS is an advanced access control solution that combines an RFID proximity card reader and a numeric keypad. The device is designed for durability and security, confirmed by its vandal-proof metal housing with an IP65 rating, providing full protection against dust and water jets. Thanks to its standalone operation, the lock does not require connection to external controllers, which significantly simplifies installation and reduces system costs. The user can open the passage using a proximity card, a PIN code, or both methods simultaneously, which increases the security level. The device supports up to 2000 users, making it an ideal choice for single-family homes as well as small offices or service facilities. The keypad features blue backlighting, which facilitates operation at night or in poorly lit areas. The administrator has full control over the system, being able to easily add or remove cards and PIN codes directly from the keypad. The lock supports electric strikes, electromagnetic locks, and reversible bolts, offering NO/NC outputs and an additional alarm output. Built-in tamper protection detects attempts to detach the device from the surface or unauthorized opening of the housing, which provides an additional layer of security. The ZS42-1 is reliability, elegance, and a high standard of workmanship in one device.
Specification
Card support
Unique EM 125kHz - RFID technology standard enabling contactless data exchange via radio waves.
Card reading range
~ 5 cm
Standalone operation
Yes
Built-in keypad
Yes, with blue button backlight
Communication
Wiegand 26
Doorbell button
Yes
Tamper output
No
Power supply
12V DC
Current consumption
25mA (standby), 60mA (operating)
Relay contact load capacity
1A / 12V
Operating temperature
-20°C to 50°C
Ingress protection rating
IP65 - high resistance to dust ingress and water jets
Housing
Metal, vandal-proof
Warranty
3 years
Contents
1x ZS42-1 keypad
Mounting elements
Dimensions, Weight
Product dimensions: 23 x 123 x 58 mm (D x W x H)
Packaging dimensions: 45 x 140 x 90 mm (D x W x H)
Product weight: 320 g
Weight with packaging: 388 g
