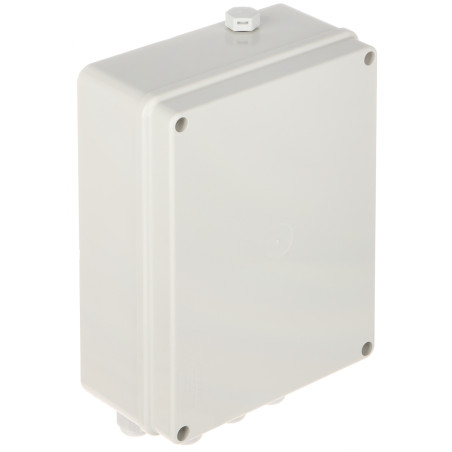

4-port PoE Switch with power supply in IP56 enclosure Pulsar S-64H
zł516.60
Tax included
The S-64H PoE switch is a professional solution designed to power IP cameras and other network devices operating under the IEEE 802.3af/at standard. The device is distinguished by its robust construction, which ensures high resistance to weather conditions thanks to the use of an IP56-rated enclosure. It is an ideal choice for outdoor installations where protection against moisture and dust is required.
The switch is equipped with four PoE ports that allow for simultaneous data transmission and power supply to connected devices using a single twisted-pair cable. Additionally, the device features two Uplink ports, which allow for easy connection of the switch to the main network or a recorder. The use of cable glands in the enclosure ensures connection tightness, which significantly increases the reliability of the entire monitoring system.
The advantages of the device include, above all, ease of installation, high performance, and full compatibility with PoE standards. Thanks to the built-in power supply, the installer receives a complete kit ready for operation immediately after unpacking. The device supports Extend mode, which allows for increasing the data transmission and power supply range up to 250 meters at a speed of 10 Mbps, which is crucial in extensive CCTV installations.
4-port PoE Switch with power supply in IP56 enclosure
Model: Pulsar S-64H
EAN: 6931240097496 SKU: 931097498
- 4 PoE ports (802.3af/at)
- 2 Uplink ports 10/100 Mbps
- IP56 ingress protection rating
- Maximum output power 30W per port
- Maximum total power 60W
- Extend mode (range up to 250m)
- Built-in 52V DC power supply
- Robust enclosure with cable glands
Description
The S-64H PoE switch is a professional solution designed to power IP cameras and other network devices operating under the IEEE 802.3af/at standard. The device is distinguished by its robust construction, which ensures high resistance to weather conditions thanks to the use of an IP56-rated enclosure. It is an ideal choice for outdoor installations where protection against moisture and dust is required.
The switch is equipped with four PoE ports that allow for simultaneous data transmission and power supply to connected devices using a single twisted-pair cable. Additionally, the device features two Uplink ports, which allow for easy connection of the switch to the main network or a recorder. The use of cable glands in the enclosure ensures connection tightness, which significantly increases the reliability of the entire monitoring system.
The advantages of the device include, above all, ease of installation, high performance, and full compatibility with PoE standards. Thanks to the built-in power supply, the installer receives a complete kit ready for operation immediately after unpacking. The device supports Extend mode, which allows for increasing the data transmission and power supply range up to 250 meters at a speed of 10 Mbps, which is crucial in extensive CCTV installations.
Specification
LAN ports
4 x RJ45 10/100 Base-TX - PoE (802.3af/at), 2 x RJ45 10/100 Base-TX - Uplink ports
Management
None (Plug & Play device)
Transmission speed
10 / 100 Mbps for LAN/PoE and Uplink ports
Maximum output power
30 W per PoE port
Maximum total power
60 W
MAC address table
1k (1024 addresses)
Operating modes
Extend On: 250 m, 10 Mbps (UTP cat. 5e, 6); Extend Off: 100 m, 100 Mbps (UTP cat. 5e, 6)
Selected features
Enclosure equipped with cable glands: 6 pcs. Ø 4-8 mm and 1 pc. Ø 10-14 mm
Certificates
CE
Power supply
52 V DC / 1.15 A (power supply included)
Enclosure
Plastic, IP56 ingress protection rating
Manufacturer / Brand
PULSAR
Warranty
2 years
Software
The device does not have dedicated management software (web or mobile interface). It is an unmanaged switch, which means it operates in automatic mode (Plug & Play). It does not require configuration, which simplifies installation in IP monitoring systems. The device automatically detects PoE-compliant devices and manages power allocation, ensuring stable data transmission without the need for user intervention in network settings.
Contents
1x PoE Switch S-64H
1x Power supply
Dimensions, Weight
Product dimensions: 80 x 148 x 240 mm (D x W x H)
Packaging dimensions: 100 x 250 x 155 mm (D x W x H)
Product weight: 1250 g
Weight with packaging: 1326 g
